| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58376cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58376cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,808,588,160 | 227,977,920 |
| Size | 1.7 GB | 217.4 MB |
| Events in quadrant A | 10,567,908 | 1,697,576 |
| Events in quadrant B | 33,016,137 | 800,365 |
| Events in quadrant C | 10,788,165 | 1,599,867 |
| Events in quadrant D | 11,152,753 | 1,537,173 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 372 | 0 |
| B | 0 | 372 | 0 |
| C | 0 | 372 | 0 |
| D | 0 | 372 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43860 | 3 |
| B | 0 | 110769 | 3 |
| C | 0 | 45201 | 3 |
| D | 0 | 45327 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18388 | 381 | 2.072003% |
| B | 18388 | 11121 | 60.479661% |
| C | 18388 | 724 | 3.937350% |
| D | 18388 | 372 | 2.023059% |

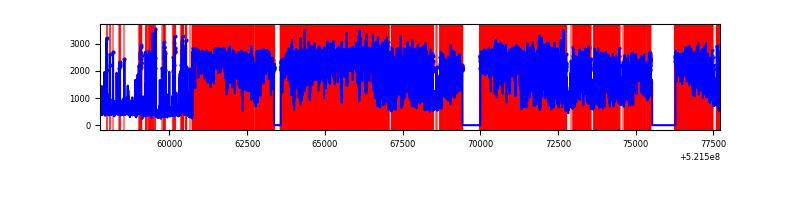

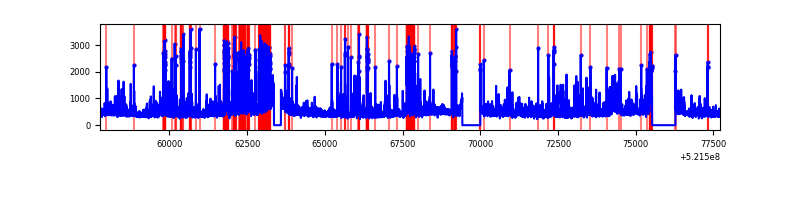

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19943 | 18391 | 166 | 166 | 0.83% | 0.90% |  |
| B | 19943 | 18388 | 9356 | 9356 | 46.91% | 50.88% |  |
| C | 19943 | 18390 | 550 | 550 | 2.76% | 2.99% |  |
| D | 19943 | 18391 | 318 | 318 | 1.59% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1156349 | 2297.46 | 2012 | 1960 | 502.5 |
| A | 13 | 248 | 504462 | 1000.08 | 2012 | 1960 | 502.5 |
| A | 12 | 80 | 474910 | 941.26 | 2012 | 1960 | 502.5 |
| B | 5 | 172 | 21222958 | 68758.22 | 1440 | 1385 | 308.6 |
| B | 6 | 255 | 3813922 | 12352.68 | 1440 | 1385 | 308.6 |
| B | 2 | 249 | 988419 | 3198.01 | 1440 | 1385 | 308.6 |
| C | 15 | 148 | 1719086 | 3257.72 | 1928 | 1911 | 527.1 |
| C | 6 | 223 | 542665 | 1025.89 | 1928 | 1911 | 527.1 |
| C | 12 | 252 | 240357 | 452.37 | 1928 | 1911 | 527.1 |
| D | 11 | 129 | 1262115 | 2293.79 | 1945 | 1859 | 549.4 |
| D | 2 | 153 | 702375 | 1275.01 | 1945 | 1859 | 549.4 |
| D | 2 | 249 | 333808 | 604.18 | 1945 | 1859 | 549.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

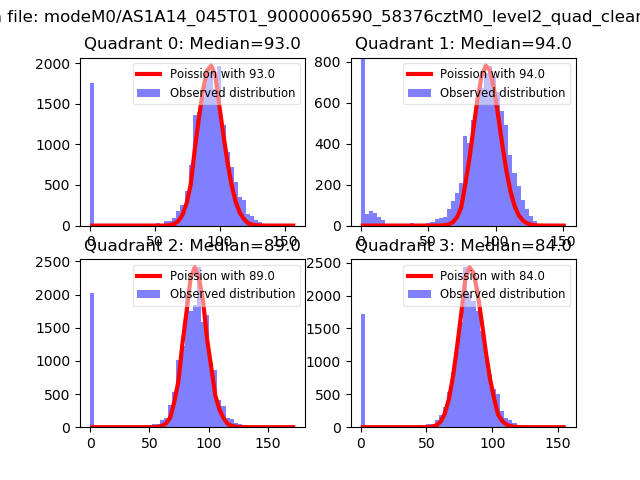

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

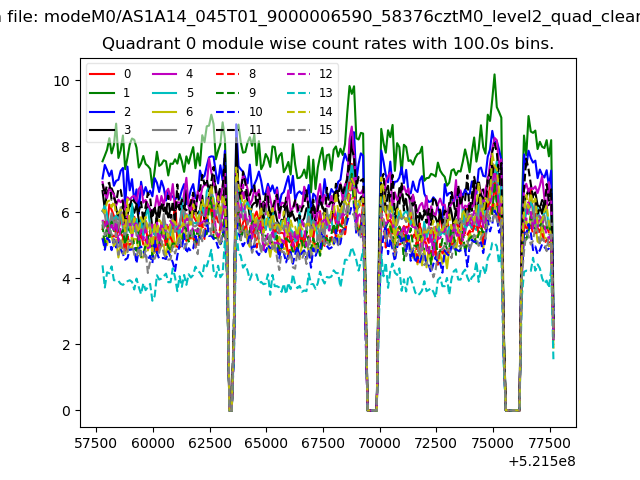

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

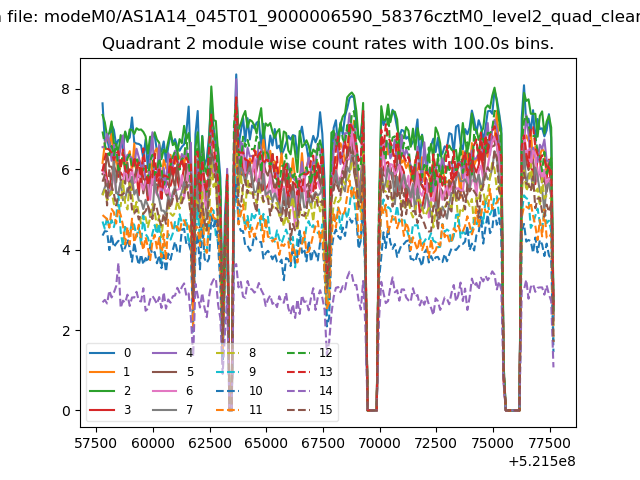

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

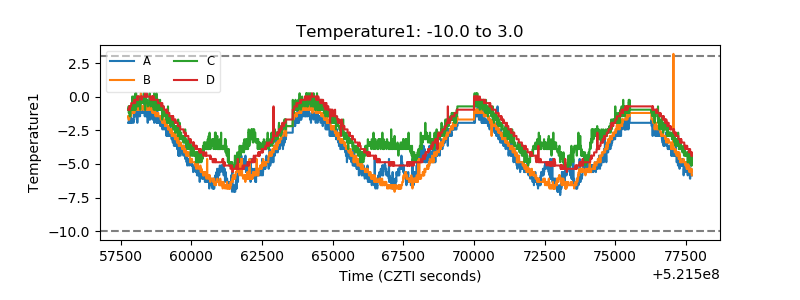

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

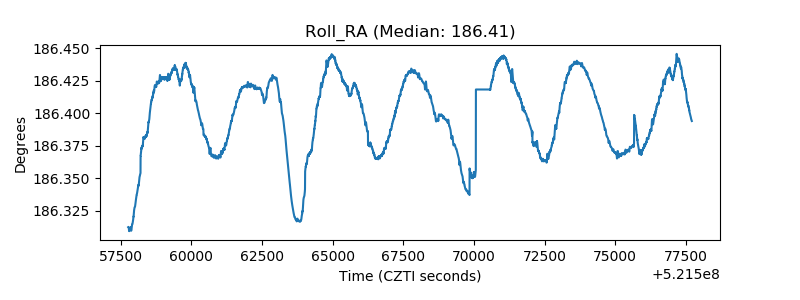

| _Roll_RA |  |

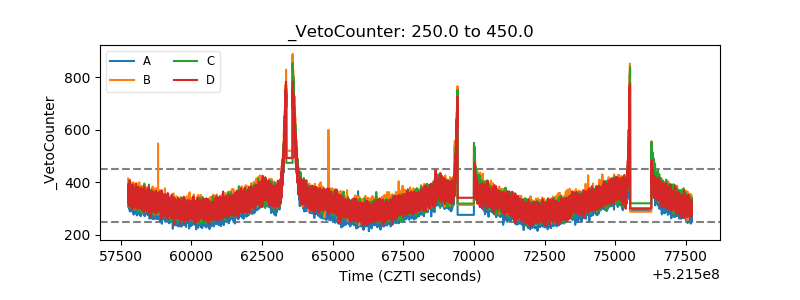

| Veto Counter |  |
