| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58377cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58377cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,240,640 | 93,326,400 |
| Size | 517.1 MB | 89.0 MB |
| Events in quadrant A | 3,866,221 | 633,229 |
| Events in quadrant B | 8,243,436 | 552,169 |
| Events in quadrant C | 3,666,147 | 602,060 |
| Events in quadrant D | 3,777,785 | 573,368 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16311 | 1 |
| B | 0 | 29090 | 1 |
| C | 0 | 15730 | 1 |
| D | 0 | 15887 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6673 | 173 | 2.592537% |
| B | 6673 | 1608 | 24.097108% |
| C | 6673 | 180 | 2.697437% |
| D | 6673 | 118 | 1.768320% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

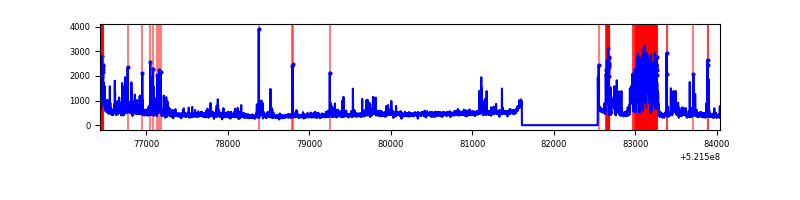

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7603 | 6674 | 162 | 162 | 2.13% | 2.43% |  |
| B | 7603 | 6673 | 1298 | 1298 | 17.07% | 19.45% |  |
| C | 7603 | 6674 | 162 | 162 | 2.13% | 2.43% |  |
| D | 7603 | 6674 | 116 | 116 | 1.53% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 618229 | 3454.18 | 716 | 696 | 178.8 |
| A | 4 | 249 | 136560 | 759.96 | 716 | 696 | 178.8 |
| A | 12 | 80 | 110794 | 615.83 | 716 | 696 | 178.8 |
| B | 5 | 172 | 2647114 | 18605.99 | 662 | 639 | 142.2 |
| B | 6 | 255 | 1340819 | 9422.11 | 662 | 639 | 142.2 |
| B | 8 | 128 | 641641 | 4506.55 | 662 | 639 | 142.2 |
| C | 6 | 223 | 420631 | 2177.03 | 695 | 690 | 192.9 |
| C | 4 | 5 | 385892 | 1996.94 | 695 | 690 | 192.9 |
| C | 14 | 254 | 29920 | 151.53 | 695 | 690 | 192.9 |
| D | 11 | 129 | 319927 | 1609.06 | 692 | 660 | 198.4 |
| D | 2 | 249 | 197064 | 989.85 | 692 | 660 | 198.4 |
| D | 2 | 153 | 152394 | 764.72 | 692 | 660 | 198.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

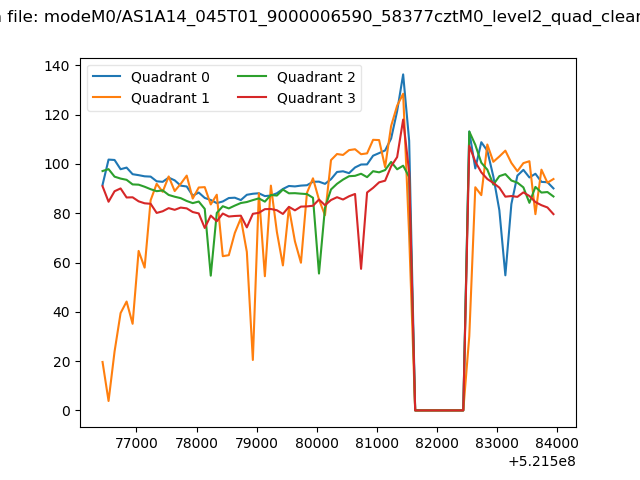

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

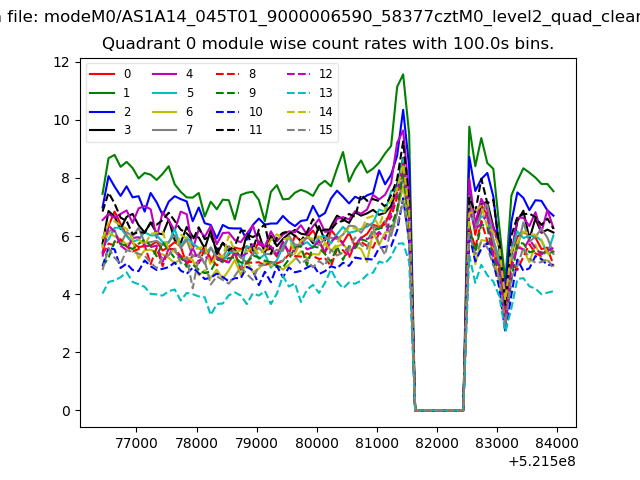

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

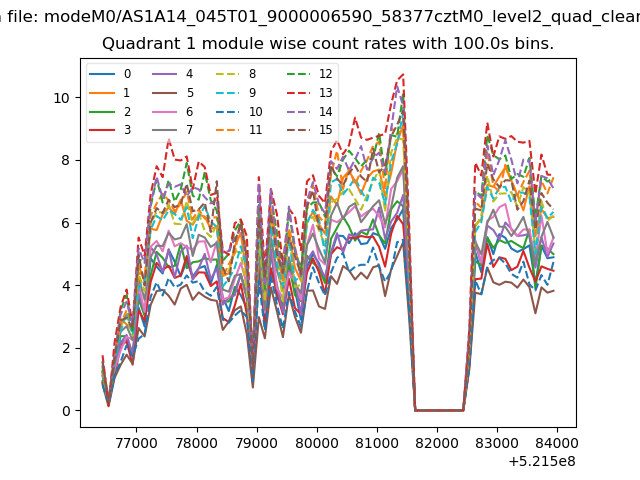

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

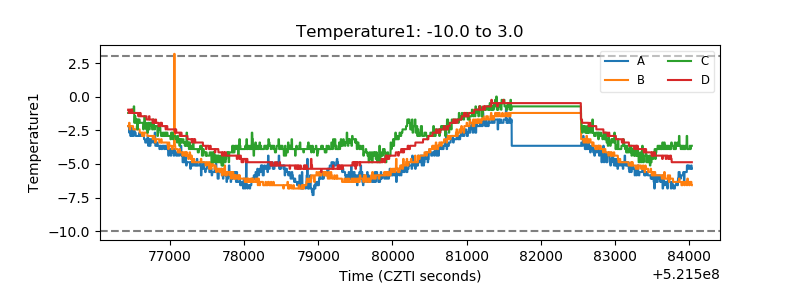

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

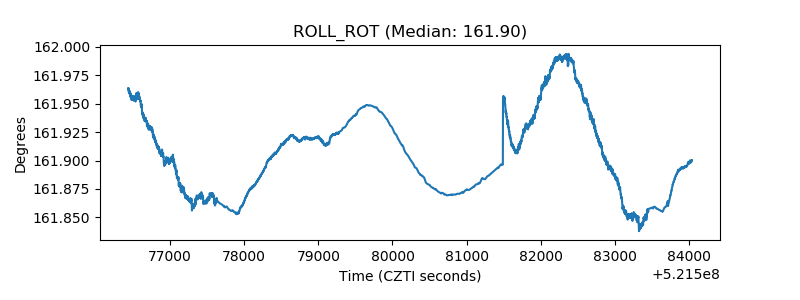

| _ROLL_ROT |  |
| _Roll_DEC |  |

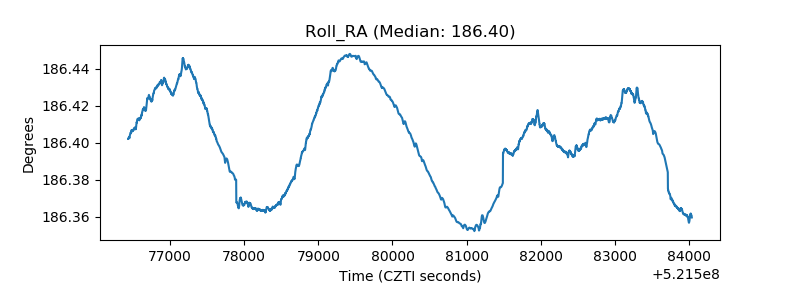

| _Roll_RA |  |
| Veto Counter |  |
