| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58380cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58380cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,333,760 | 95,679,360 |
| Size | 442.8 MB | 91.2 MB |
| Events in quadrant A | 3,191,256 | 647,079 |
| Events in quadrant B | 5,896,791 | 630,760 |
| Events in quadrant C | 3,908,268 | 596,835 |
| Events in quadrant D | 3,690,748 | 572,654 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13991 | 2 |
| B | 0 | 21911 | 2 |
| C | 0 | 16301 | 2 |
| D | 0 | 15376 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6444 | 60 | 0.931099% |
| B | 6444 | 781 | 12.119801% |
| C | 6443 | 300 | 4.656216% |
| D | 6443 | 124 | 1.924569% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6444 | 22 | 22 | 0.29% | 0.34% |  |
| B | 7594 | 6444 | 626 | 626 | 8.24% | 9.71% |  |
| C | 7593 | 6444 | 301 | 301 | 3.96% | 4.67% |  |
| D | 7593 | 6444 | 132 | 132 | 1.74% | 2.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 201985 | 1116.65 | 727 | 708 | 180.3 |
| A | 12 | 80 | 44820 | 244.73 | 727 | 708 | 180.3 |
| A | 4 | 249 | 25241 | 136.11 | 727 | 708 | 180.3 |
| B | 5 | 172 | 2143878 | 14689.6 | 680 | 656 | 145.9 |
| B | 5 | 185 | 275264 | 1882.16 | 680 | 656 | 145.9 |
| B | 2 | 249 | 236818 | 1618.65 | 680 | 656 | 145.9 |
| C | 6 | 223 | 1015004 | 5281.79 | 693 | 685 | 192.0 |
| C | 12 | 252 | 53462 | 274.82 | 693 | 685 | 192.0 |
| C | 4 | 5 | 43231 | 221.55 | 693 | 685 | 192.0 |
| D | 11 | 129 | 402358 | 2042.36 | 693 | 660 | 196.7 |
| D | 8 | 160 | 322601 | 1636.85 | 693 | 660 | 196.7 |
| D | 2 | 153 | 78401 | 395.26 | 693 | 660 | 196.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

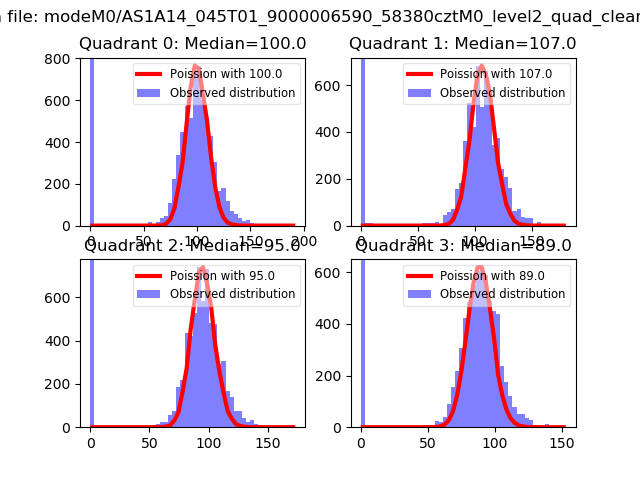

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

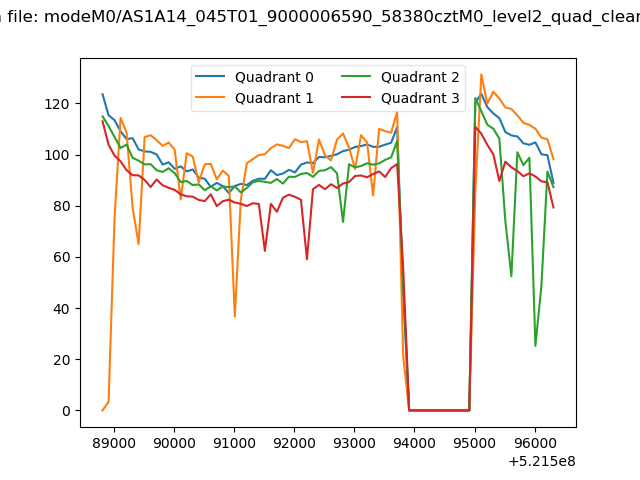

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

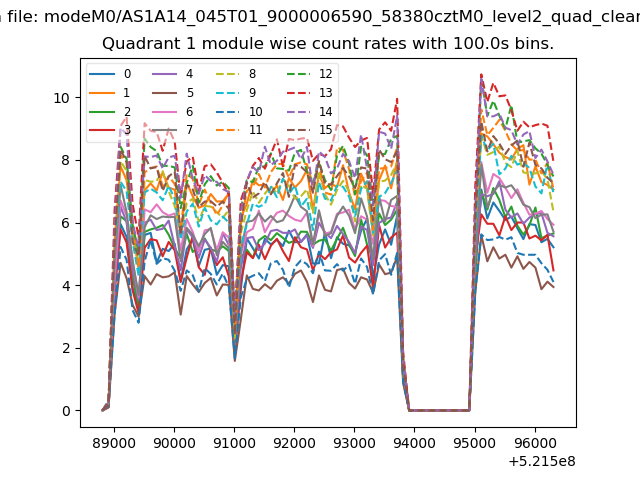

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

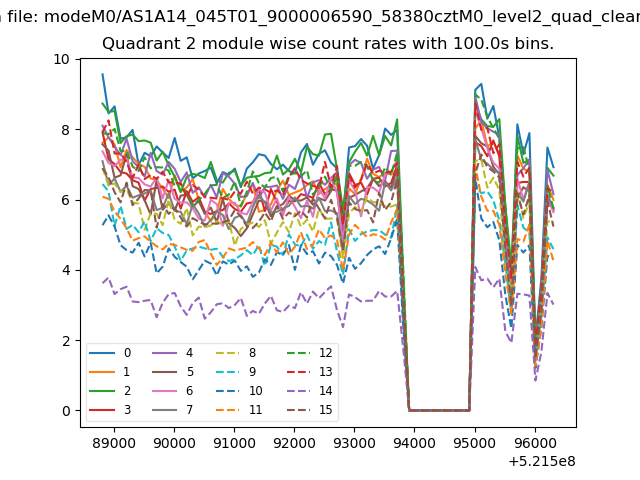

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

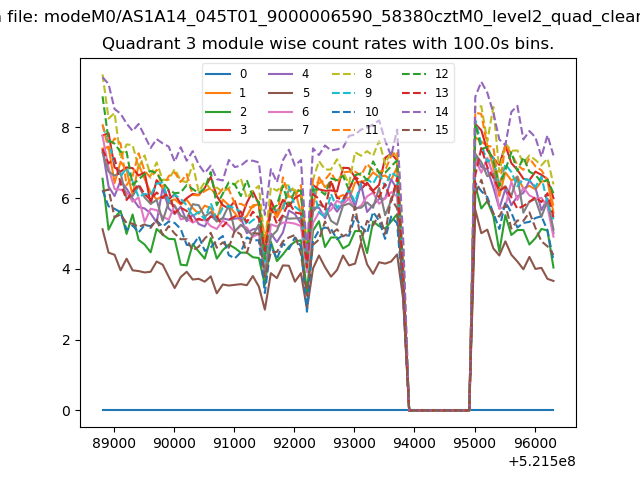

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

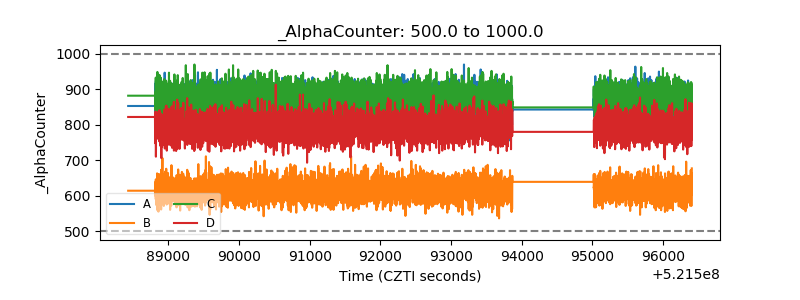

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

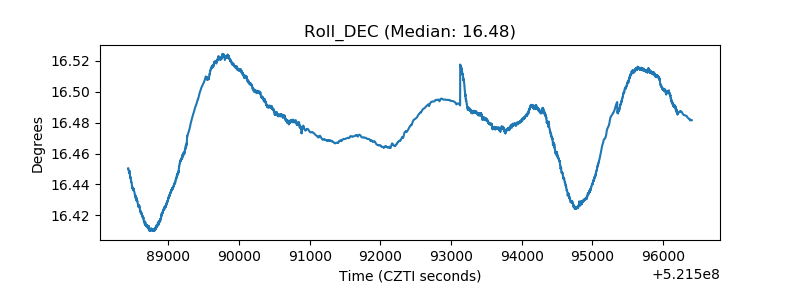

| _Roll_DEC |  |

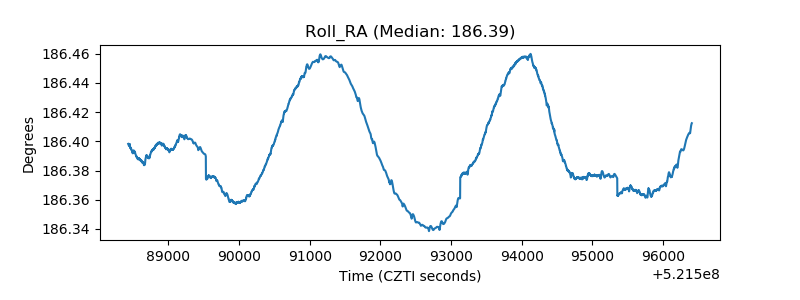

| _Roll_RA |  |
| Veto Counter |  |
