| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58382cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58382cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,271,680 | 93,447,360 |
| Size | 561.0 MB | 89.1 MB |
| Events in quadrant A | 3,367,063 | 674,966 |
| Events in quadrant B | 10,677,098 | 448,930 |
| Events in quadrant C | 3,112,425 | 651,585 |
| Events in quadrant D | 4,107,846 | 595,036 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14486 | 2 |
| B | 0 | 36206 | 2 |
| C | 0 | 13950 | 2 |
| D | 0 | 16857 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6581 | 119 | 1.808236% |
| B | 6582 | 2962 | 45.001519% |
| C | 6582 | 38 | 0.577332% |
| D | 6582 | 219 | 3.327256% |

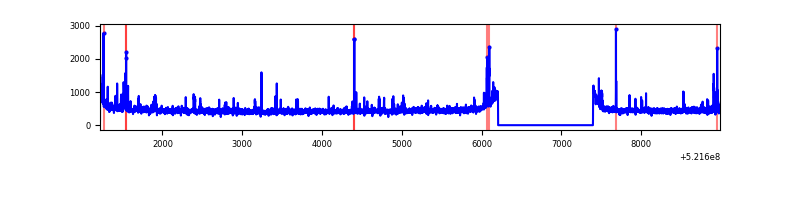

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7771 | 6581 | 36 | 36 | 0.46% | 0.55% |  |
| B | 7772 | 6582 | 2449 | 2449 | 31.51% | 37.21% |  |
| C | 7772 | 6583 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7772 | 6583 | 177 | 177 | 2.28% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 112181 | 585.38 | 772 | 752 | 190.4 |
| A | 13 | 248 | 93870 | 489.19 | 772 | 752 | 190.4 |
| A | 2 | 143 | 56076 | 290.64 | 772 | 752 | 190.4 |
| B | 5 | 172 | 6881780 | 49938.52 | 645 | 622 | 137.8 |
| B | 8 | 128 | 620231 | 4496.68 | 645 | 622 | 137.8 |
| B | 2 | 249 | 139271 | 1006.22 | 645 | 622 | 137.8 |
| C | 1 | 16 | 57592 | 275.96 | 747 | 740 | 206.0 |
| C | 4 | 5 | 48354 | 231.12 | 747 | 740 | 206.0 |
| C | 14 | 245 | 30431 | 144.12 | 747 | 740 | 206.0 |
| D | 12 | 110 | 914813 | 4385.66 | 733 | 702 | 208.4 |
| D | 11 | 129 | 95121 | 453.0 | 733 | 702 | 208.4 |
| D | 2 | 249 | 63652 | 302.02 | 733 | 702 | 208.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

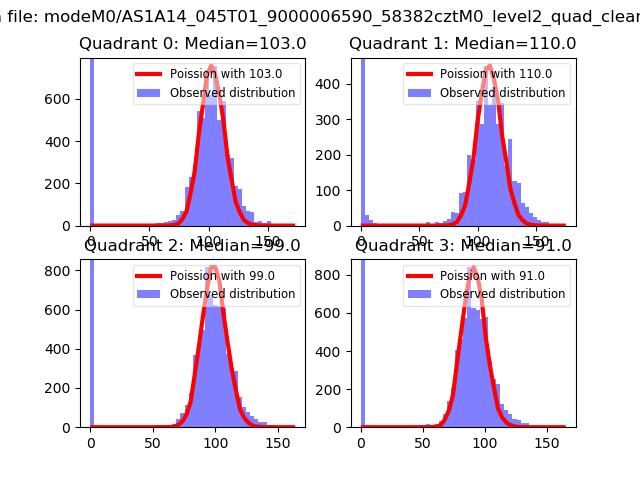

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

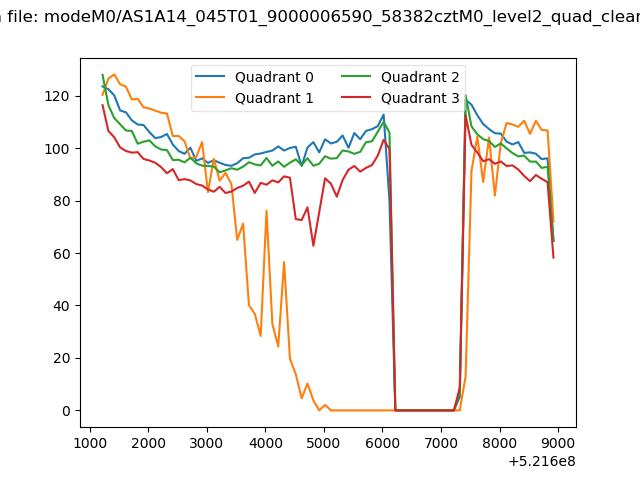

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

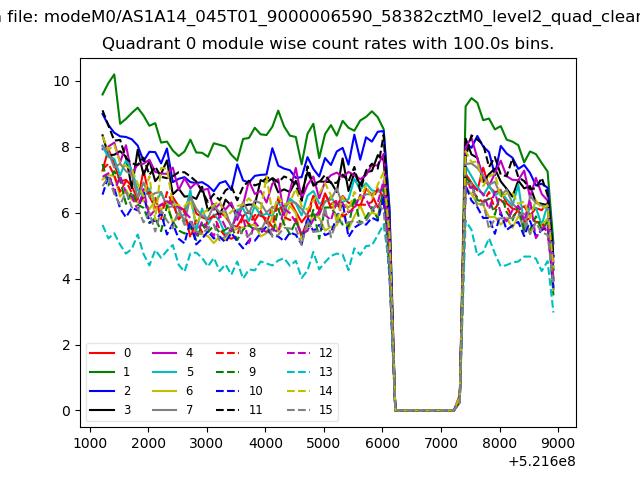

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

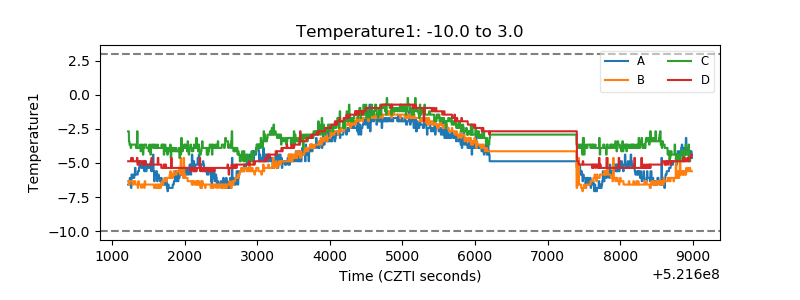

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

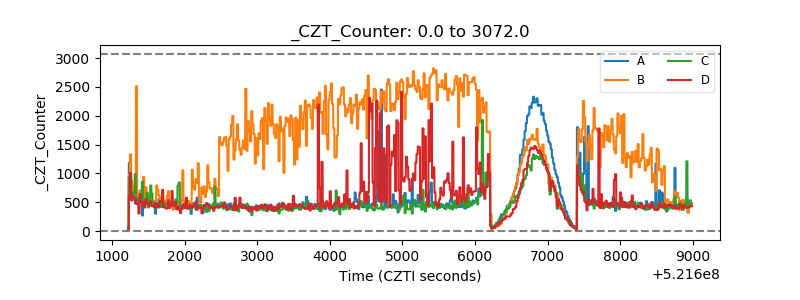

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

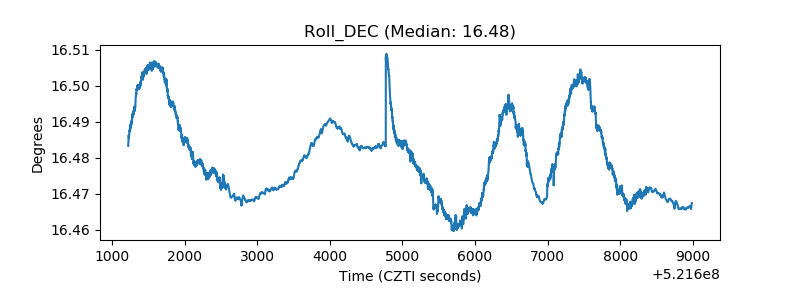

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
