| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58387cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58387cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,752,960 | 98,648,640 |
| Size | 479.5 MB | 94.1 MB |
| Events in quadrant A | 3,753,162 | 654,425 |
| Events in quadrant B | 6,741,772 | 636,936 |
| Events in quadrant C | 3,424,691 | 625,388 |
| Events in quadrant D | 4,153,683 | 588,341 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16105 | 0 |
| B | 0 | 24798 | 0 |
| C | 0 | 15343 | 0 |
| D | 0 | 16820 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6916 | 121 | 1.749566% |
| B | 6917 | 813 | 11.753650% |
| C | 6917 | 75 | 1.084285% |
| D | 6917 | 89 | 1.286685% |

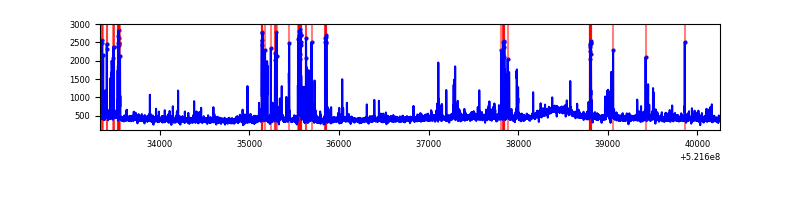

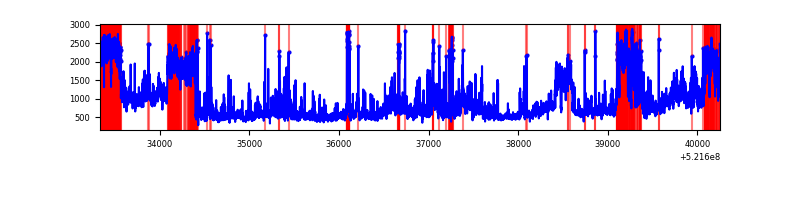

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6916 | 6916 | 94 | 94 | 1.36% | 1.36% |  |
| B | 6916 | 6916 | 576 | 576 | 8.33% | 8.33% |  |
| C | 6917 | 6917 | 72 | 72 | 1.04% | 1.04% |  |
| D | 6917 | 6917 | 95 | 95 | 1.37% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 237 | 233994 | 1225.73 | 763 | 743 | 190.3 |
| A | 10 | 251 | 148414 | 776.01 | 763 | 743 | 190.3 |
| A | 4 | 249 | 147547 | 771.46 | 763 | 743 | 190.3 |
| B | 5 | 172 | 2131944 | 13602.65 | 727 | 701 | 156.7 |
| B | 5 | 185 | 706760 | 4506.42 | 727 | 701 | 156.7 |
| B | 0 | 153 | 161450 | 1025.98 | 727 | 701 | 156.7 |
| C | 15 | 148 | 325703 | 1600.67 | 738 | 730 | 203.0 |
| C | 4 | 5 | 111561 | 545.9 | 738 | 730 | 203.0 |
| C | 12 | 252 | 20486 | 97.31 | 738 | 730 | 203.0 |
| D | 11 | 129 | 589199 | 2793.61 | 740 | 705 | 210.7 |
| D | 10 | 86 | 161906 | 765.23 | 740 | 705 | 210.7 |
| D | 2 | 153 | 85913 | 404.49 | 740 | 705 | 210.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

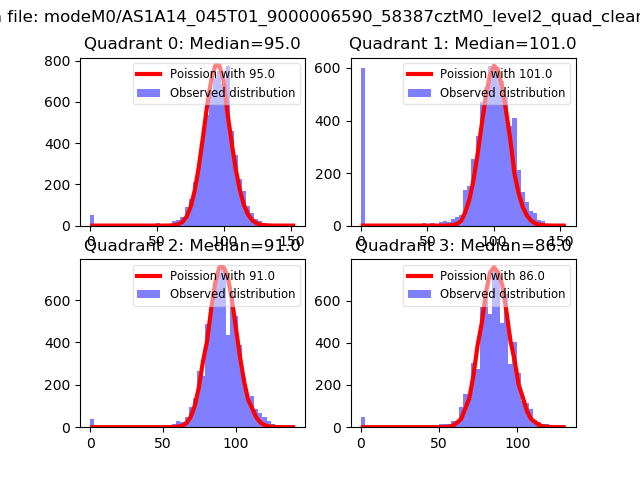

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

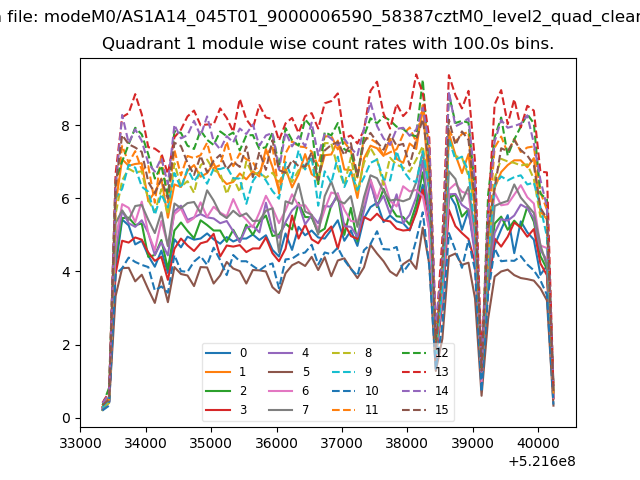

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

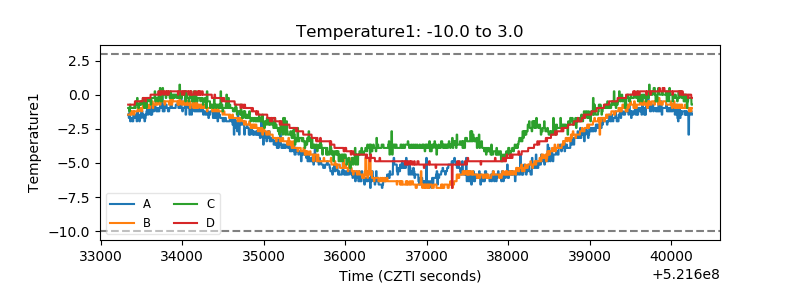

| Temperature 1 |  |

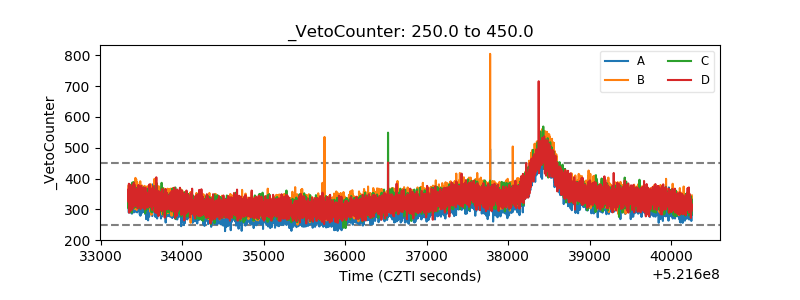

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

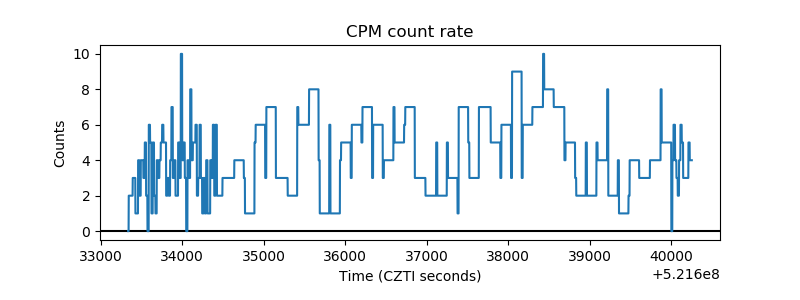

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

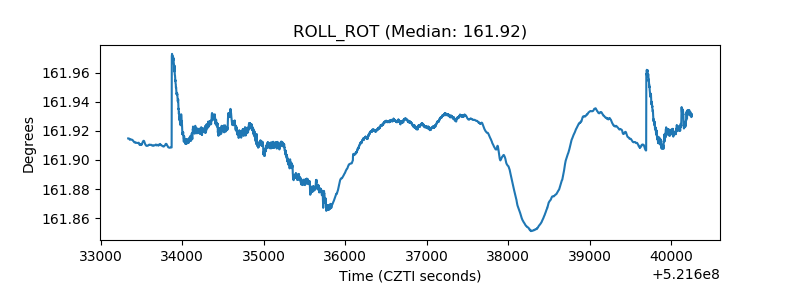

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
