| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58390cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58390cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,392,278,400 | 241,205,760 |
| Size | 1.3 GB | 230.0 MB |
| Events in quadrant A | 9,591,184 | 1,646,471 |
| Events in quadrant B | 18,450,113 | 1,444,504 |
| Events in quadrant C | 9,315,541 | 1,582,700 |
| Events in quadrant D | 12,803,980 | 1,401,241 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 362 | 0 |
| B | 0 | 362 | 0 |
| C | 0 | 362 | 0 |
| D | 0 | 362 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41152 | 3 |
| B | 0 | 67198 | 3 |
| C | 0 | 40703 | 3 |
| D | 0 | 50017 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17800 | 435 | 2.443820% |
| B | 17800 | 3306 | 18.573034% |
| C | 17801 | 359 | 2.016741% |
| D | 17801 | 1116 | 6.269311% |

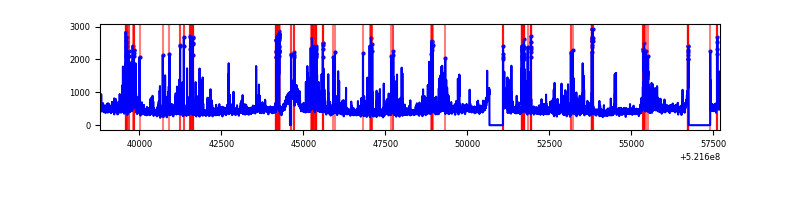

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18909 | 17801 | 214 | 214 | 1.13% | 1.20% |  |
| B | 18909 | 17800 | 2378 | 2378 | 12.58% | 13.36% |  |
| C | 18910 | 17802 | 253 | 253 | 1.34% | 1.42% |  |
| D | 18910 | 17803 | 950 | 950 | 5.02% | 5.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 399831 | 815.13 | 1979 | 1926 | 488.2 |
| A | 13 | 248 | 354132 | 721.51 | 1979 | 1926 | 488.2 |
| A | 2 | 143 | 352415 | 717.99 | 1979 | 1926 | 488.2 |
| B | 5 | 172 | 7512819 | 18951.26 | 1859 | 1784 | 396.3 |
| B | 6 | 255 | 761471 | 1916.78 | 1859 | 1784 | 396.3 |
| B | 0 | 153 | 534992 | 1345.35 | 1859 | 1784 | 396.3 |
| C | 15 | 147 | 684599 | 1296.8 | 1920 | 1907 | 526.4 |
| C | 6 | 223 | 242440 | 456.9 | 1920 | 1907 | 526.4 |
| C | 15 | 148 | 218272 | 410.99 | 1920 | 1907 | 526.4 |
| D | 2 | 249 | 2214387 | 4176.9 | 1877 | 1798 | 529.7 |
| D | 11 | 129 | 1715865 | 3235.79 | 1877 | 1798 | 529.7 |
| D | 2 | 153 | 305625 | 573.56 | 1877 | 1798 | 529.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

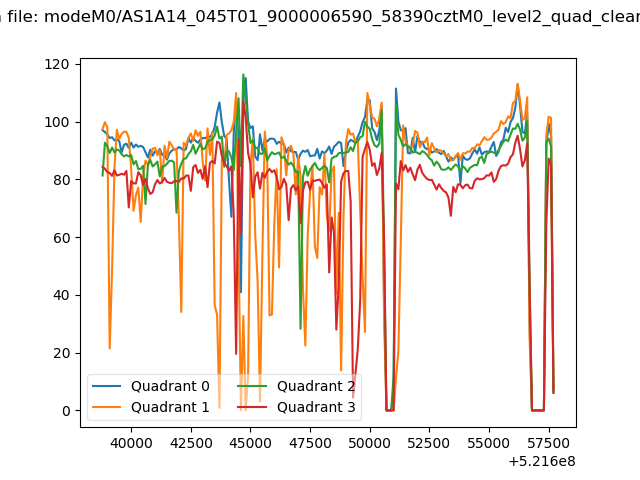

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

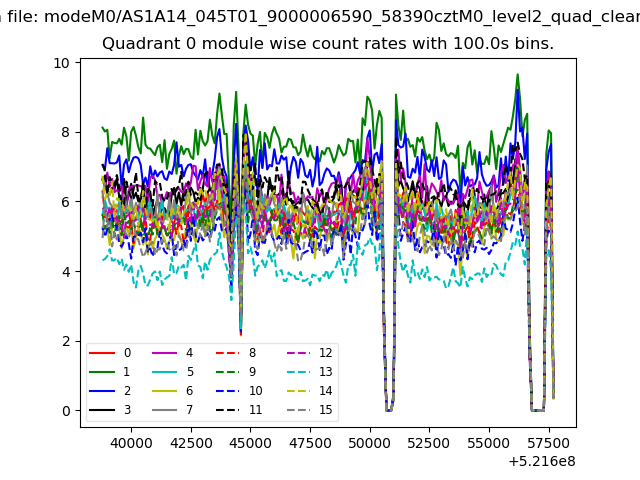

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

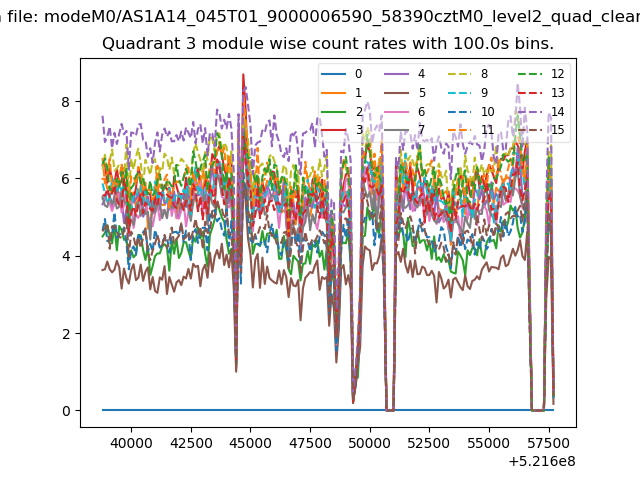

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

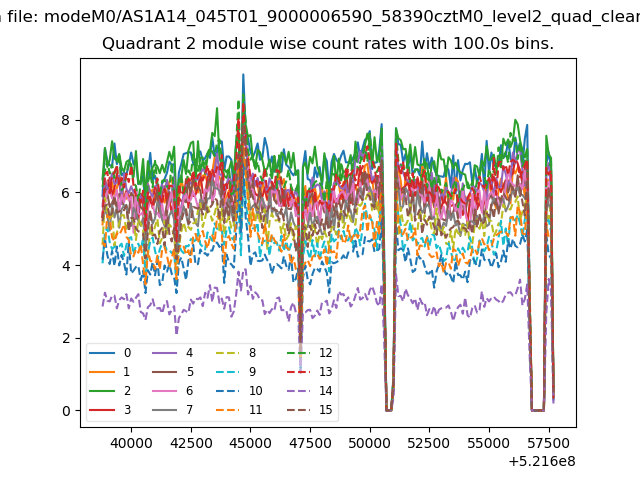

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

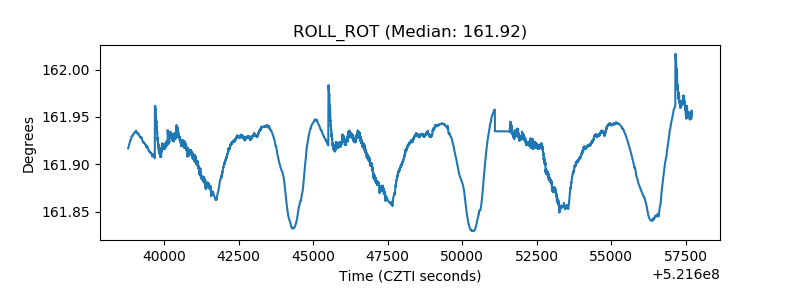

| _ROLL_ROT |  |

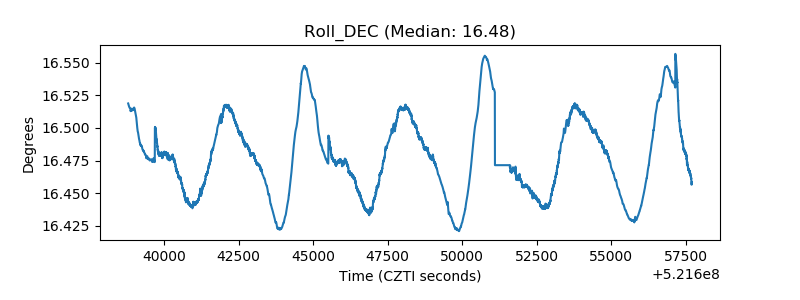

| _Roll_DEC |  |

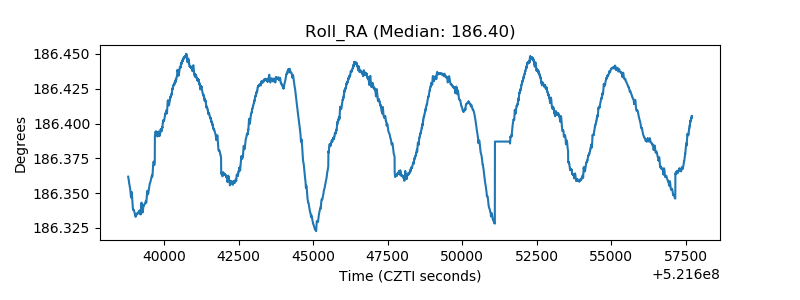

| _Roll_RA |  |
| Veto Counter |  |
