| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58394cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58394cztM0_level2_quad_clean.evt |
| Size (bytes) | 594,293,760 | 92,687,040 |
| Size | 566.8 MB | 88.4 MB |
| Events in quadrant A | 3,978,057 | 614,939 |
| Events in quadrant B | 5,850,546 | 610,013 |
| Events in quadrant C | 3,866,915 | 586,349 |
| Events in quadrant D | 7,807,958 | 548,499 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16317 | 2 |
| B | 0 | 21758 | 5 |
| C | 0 | 16069 | 2 |
| D | 0 | 27866 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6401 | 208 | 3.249492% |
| B | 6400 | 871 | 13.609375% |
| C | 6400 | 260 | 4.062500% |
| D | 6400 | 346 | 5.406250% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6402 | 165 | 165 | 2.19% | 2.58% |  |
| B | 7525 | 6401 | 669 | 669 | 8.89% | 10.45% |  |
| C | 7525 | 6401 | 248 | 248 | 3.30% | 3.87% |  |
| D | 7525 | 6401 | 514 | 514 | 6.83% | 8.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 471817 | 2718.44 | 702 | 685 | 173.3 |
| A | 4 | 249 | 305009 | 1755.95 | 702 | 685 | 173.3 |
| A | 2 | 143 | 188177 | 1081.83 | 702 | 685 | 173.3 |
| B | 5 | 172 | 2399752 | 16787.53 | 673 | 648 | 142.9 |
| B | 4 | 201 | 380132 | 2655.41 | 673 | 648 | 142.9 |
| B | 6 | 255 | 86608 | 601.5 | 673 | 648 | 142.9 |
| C | 9 | 38 | 462067 | 2471.69 | 677 | 672 | 186.7 |
| C | 4 | 5 | 350527 | 1874.17 | 677 | 672 | 186.7 |
| C | 6 | 223 | 185493 | 990.08 | 677 | 672 | 186.7 |
| D | 5 | 113 | 4418258 | 23026.9 | 669 | 640 | 191.8 |
| D | 11 | 129 | 274463 | 1427.31 | 669 | 640 | 191.8 |
| D | 2 | 249 | 239867 | 1246.97 | 669 | 640 | 191.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

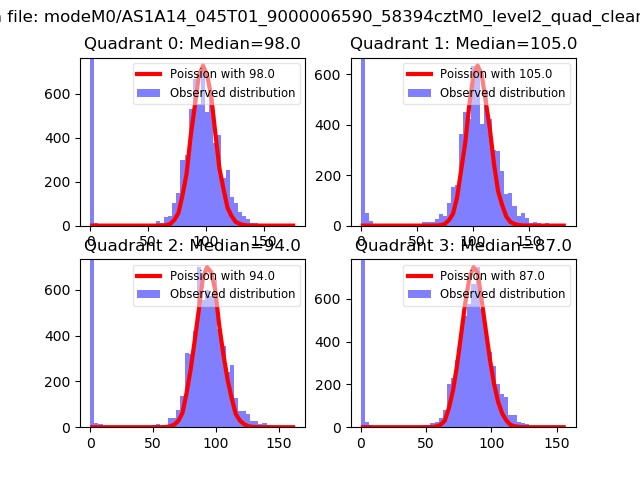

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

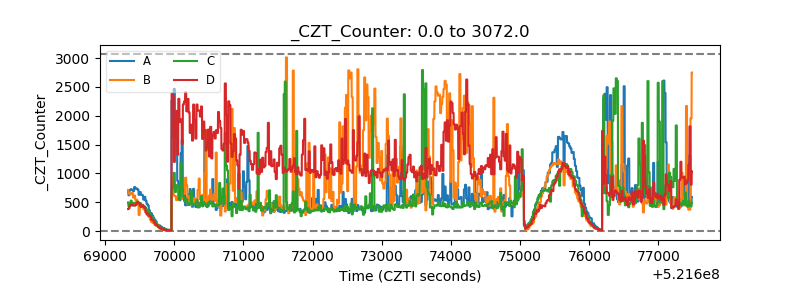

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

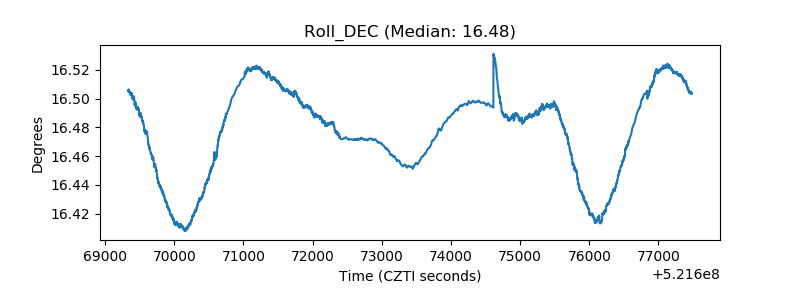

| _Roll_DEC |  |

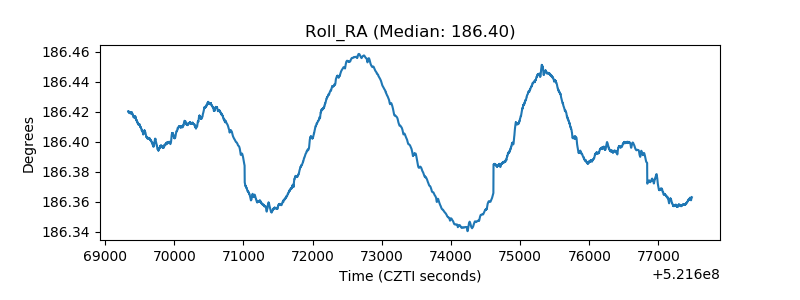

| _Roll_RA |  |
| Veto Counter |  |
