| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58397cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58397cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,810,880 | 96,531,840 |
| Size | 543.4 MB | 92.1 MB |
| Events in quadrant A | 3,666,028 | 663,024 |
| Events in quadrant B | 3,609,413 | 709,160 |
| Events in quadrant C | 7,623,093 | 508,711 |
| Events in quadrant D | 5,687,597 | 586,983 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15228 | 2 |
| B | 0 | 14867 | 2 |
| C | 0 | 27089 | 2 |
| D | 0 | 21327 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6529 | 127 | 1.945168% |
| B | 6529 | 225 | 3.446163% |
| C | 6529 | 1483 | 22.714045% |
| D | 6529 | 196 | 3.001991% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

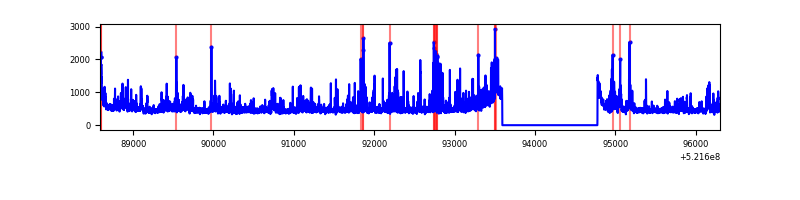

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7714 | 6530 | 25 | 25 | 0.32% | 0.38% |  |
| B | 7714 | 6530 | 71 | 71 | 0.92% | 1.09% |  |
| C | 7714 | 6530 | 1255 | 1255 | 16.27% | 19.22% |  |
| D | 7714 | 6530 | 127 | 127 | 1.65% | 1.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 247164 | 1323.93 | 758 | 741 | 186.1 |
| A | 2 | 143 | 193643 | 1036.38 | 758 | 741 | 186.1 |
| A | 10 | 251 | 63406 | 336.67 | 758 | 741 | 186.1 |
| B | 10 | 247 | 178518 | 1101.75 | 748 | 719 | 161.4 |
| B | 4 | 201 | 102241 | 629.09 | 748 | 719 | 161.4 |
| B | 0 | 156 | 67637 | 414.67 | 748 | 719 | 161.4 |
| C | 9 | 38 | 2874454 | 15870.13 | 657 | 650 | 181.1 |
| C | 5 | 10 | 1932114 | 10666.21 | 657 | 650 | 181.1 |
| C | 4 | 5 | 84615 | 463.68 | 657 | 650 | 181.1 |
| D | 5 | 113 | 1952839 | 9463.2 | 723 | 689 | 206.3 |
| D | 8 | 240 | 360249 | 1743.0 | 723 | 689 | 206.3 |
| D | 12 | 248 | 153341 | 739.99 | 723 | 689 | 206.3 |

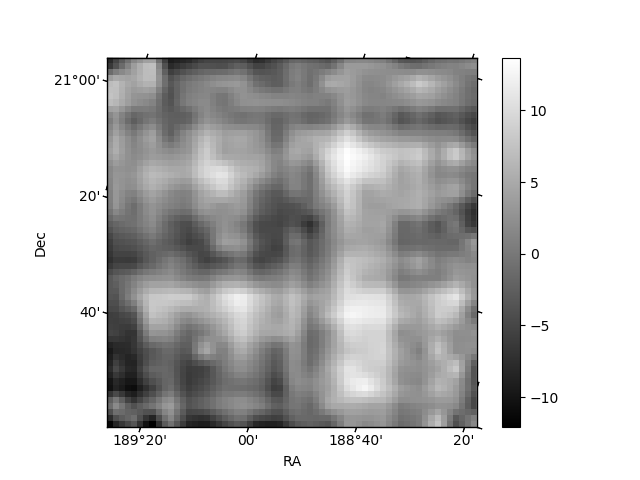

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

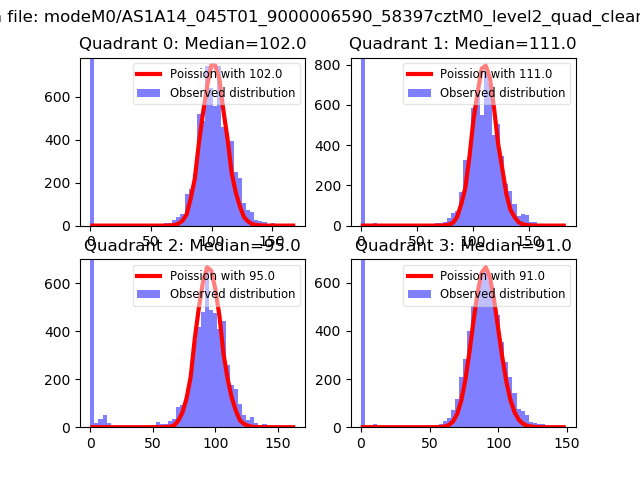

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

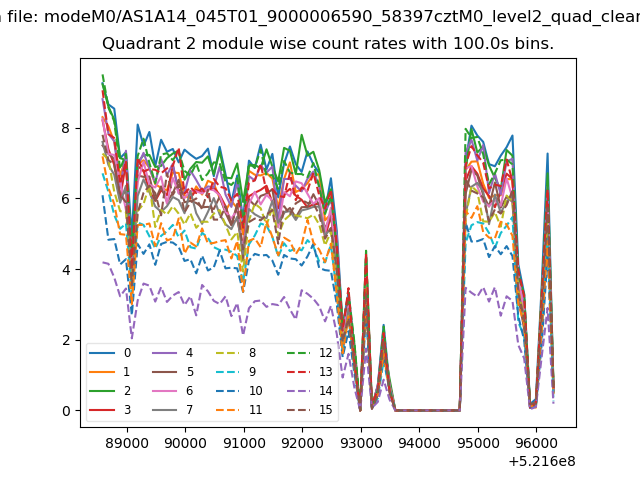

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

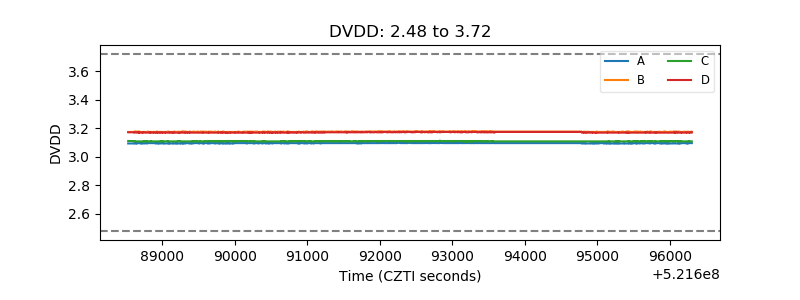

| D_VDD |  |

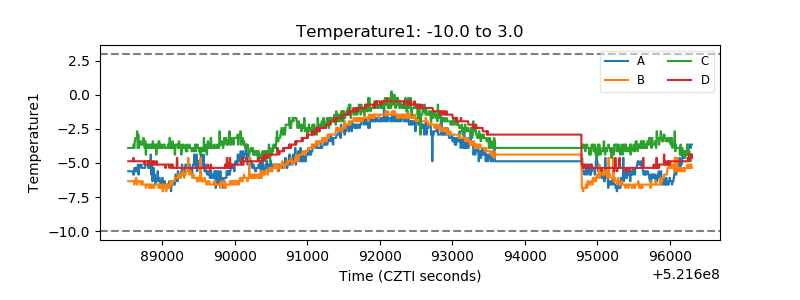

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

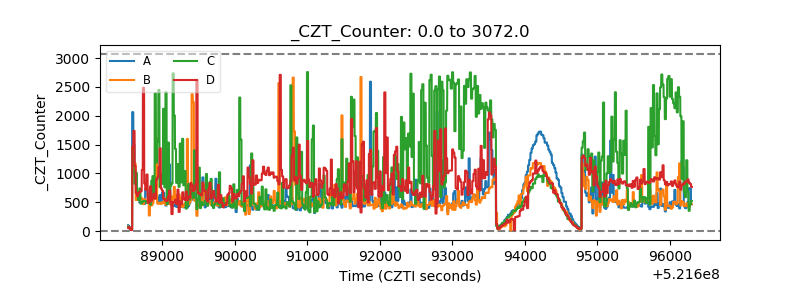

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

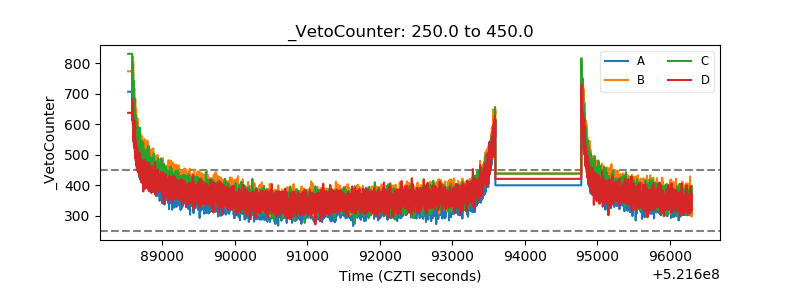

| Veto Counter |  |
