| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58399cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58399cztM0_level2_quad_clean.evt |
| Size (bytes) | 716,644,800 | 97,735,680 |
| Size | 683.4 MB | 93.2 MB |
| Events in quadrant A | 7,218,695 | 563,557 |
| Events in quadrant B | 4,182,388 | 719,162 |
| Events in quadrant C | 7,419,862 | 570,705 |
| Events in quadrant D | 7,143,001 | 598,863 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26452 | 2 |
| B | 0 | 17342 | 2 |
| C | 0 | 27086 | 3 |
| D | 0 | 26406 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7280 | 1603 | 22.019231% |
| B | 7281 | 523 | 7.183079% |
| C | 7280 | 1349 | 18.530220% |
| D | 7280 | 448 | 6.153846% |

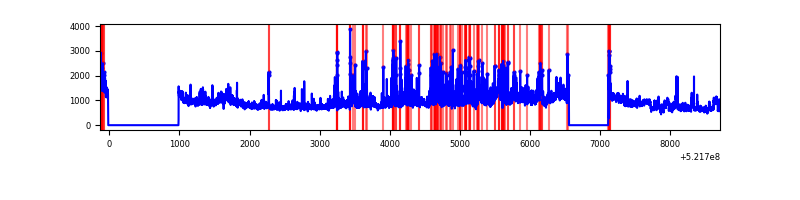

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8845 | 7282 | 963 | 963 | 10.89% | 13.22% |  |
| B | 8846 | 7283 | 146 | 146 | 1.65% | 2.00% |  |
| C | 8845 | 7282 | 822 | 822 | 9.29% | 11.29% |  |
| D | 8845 | 7282 | 150 | 150 | 1.70% | 2.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 2602845 | 13356.0 | 790 | 770 | 194.8 |
| A | 12 | 80 | 1224100 | 6279.14 | 790 | 770 | 194.8 |
| A | 13 | 248 | 151044 | 771.33 | 790 | 770 | 194.8 |
| B | 6 | 255 | 373155 | 2068.3 | 830 | 799 | 180.0 |
| B | 4 | 201 | 127463 | 703.57 | 830 | 799 | 180.0 |
| B | 2 | 249 | 85885 | 472.62 | 830 | 799 | 180.0 |
| C | 6 | 223 | 2455925 | 11830.14 | 758 | 751 | 207.5 |
| C | 9 | 38 | 989557 | 4764.51 | 758 | 751 | 207.5 |
| C | 5 | 10 | 532999 | 2564.61 | 758 | 751 | 207.5 |
| D | 5 | 113 | 2923128 | 12891.2 | 805 | 769 | 226.7 |
| D | 8 | 240 | 576376 | 2539.13 | 805 | 769 | 226.7 |
| D | 11 | 129 | 183624 | 806.62 | 805 | 769 | 226.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

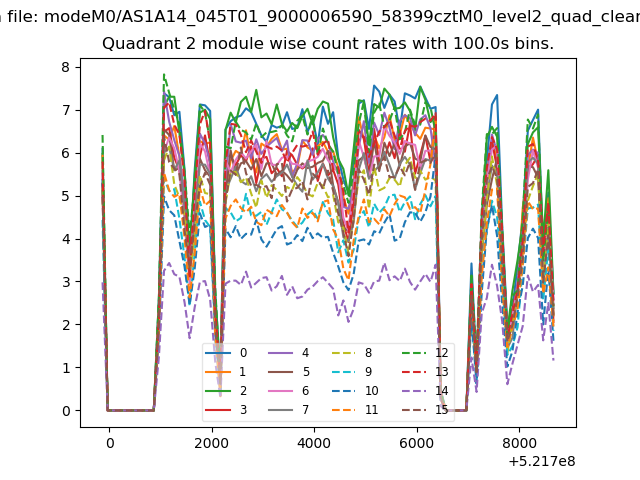

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

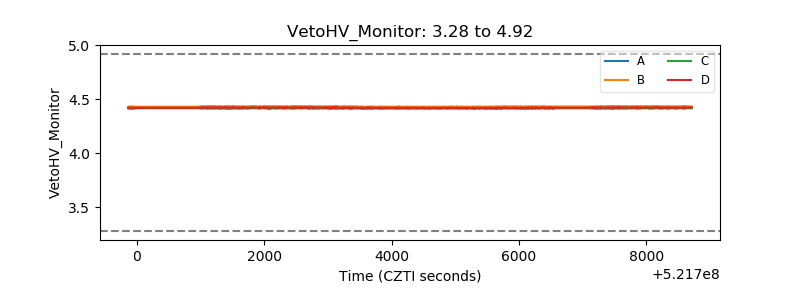

| Veto HV Monitor |  |
| Veto LLD |  |

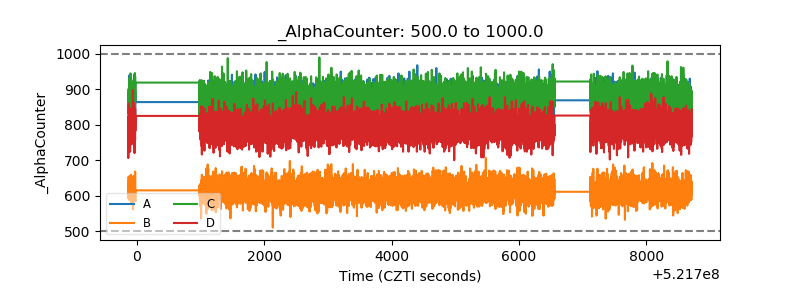

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

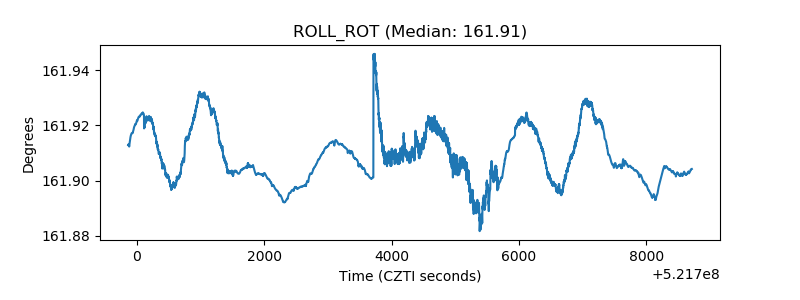

| _ROLL_ROT |  |

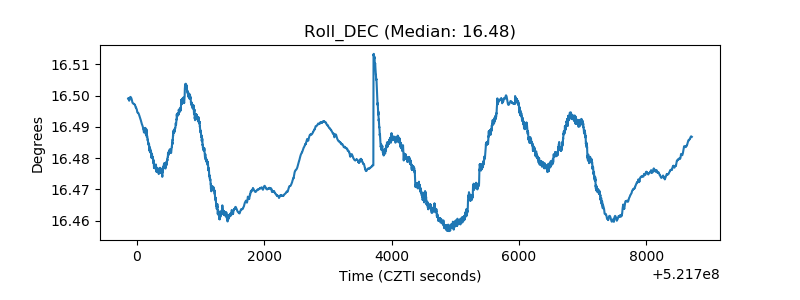

| _Roll_DEC |  |

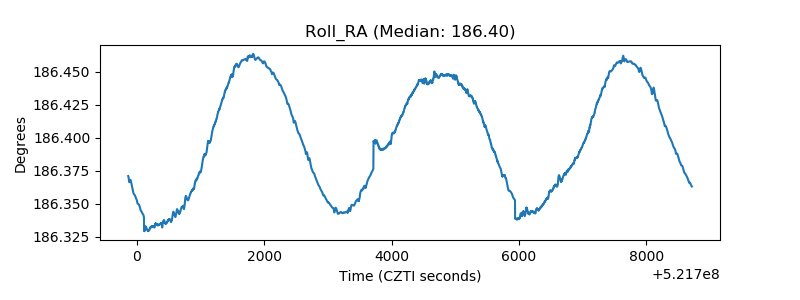

| _Roll_RA |  |
| Veto Counter |  |
