| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58400cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58400cztM0_level2_quad_clean.evt |
| Size (bytes) | 799,300,800 | 96,802,560 |
| Size | 762.3 MB | 92.3 MB |
| Events in quadrant A | 7,595,166 | 557,740 |
| Events in quadrant B | 4,222,387 | 760,134 |
| Events in quadrant C | 9,991,650 | 484,419 |
| Events in quadrant D | 7,204,808 | 612,732 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27682 | 0 |
| B | 0 | 17441 | 0 |
| C | 0 | 34757 | 0 |
| D | 0 | 26732 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7409 | 1718 | 23.188015% |
| B | 7410 | 213 | 2.874494% |
| C | 7410 | 2452 | 33.090418% |
| D | 7410 | 486 | 6.558704% |

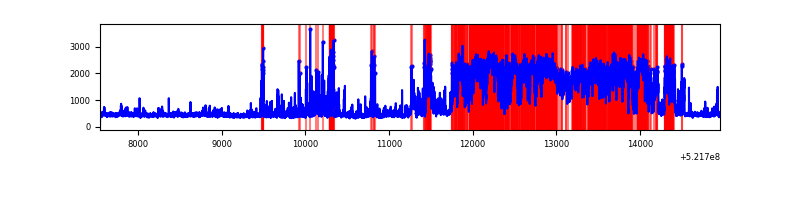

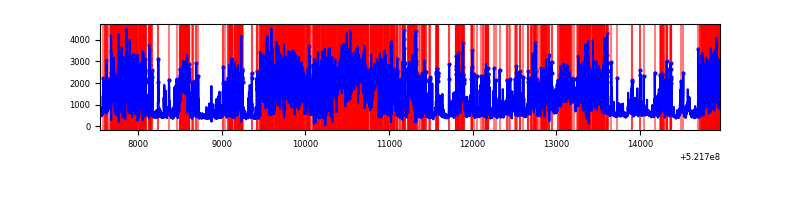

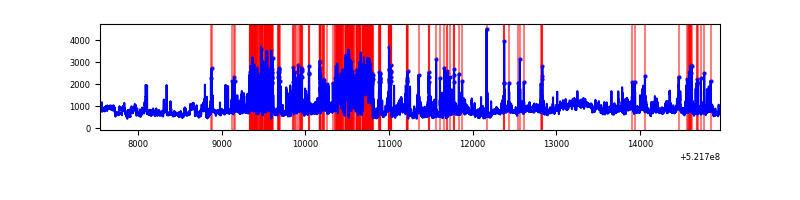

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7409 | 7409 | 1247 | 1247 | 16.83% | 16.83% |  |
| B | 7410 | 7410 | 65 | 65 | 0.88% | 0.88% |  |
| C | 7410 | 7410 | 1836 | 1836 | 24.78% | 24.78% |  |
| D | 7410 | 7410 | 388 | 388 | 5.24% | 5.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 4082259 | 21295.53 | 776 | 755 | 191.7 |
| A | 12 | 80 | 210555 | 1094.65 | 776 | 755 | 191.7 |
| A | 2 | 143 | 121694 | 631.01 | 776 | 755 | 191.7 |
| B | 4 | 158 | 277895 | 1560.11 | 824 | 794 | 177.6 |
| B | 0 | 153 | 199453 | 1118.47 | 824 | 794 | 177.6 |
| B | 4 | 201 | 105270 | 588.21 | 824 | 794 | 177.6 |
| C | 6 | 223 | 3814481 | 20204.15 | 685 | 677 | 188.8 |
| C | 5 | 10 | 1805424 | 9560.9 | 685 | 677 | 188.8 |
| C | 9 | 38 | 903638 | 4783.56 | 685 | 677 | 188.8 |
| D | 5 | 113 | 2152271 | 9621.93 | 793 | 760 | 223.6 |
| D | 8 | 240 | 1454396 | 6500.91 | 793 | 760 | 223.6 |
| D | 12 | 248 | 113547 | 504.4 | 793 | 760 | 223.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

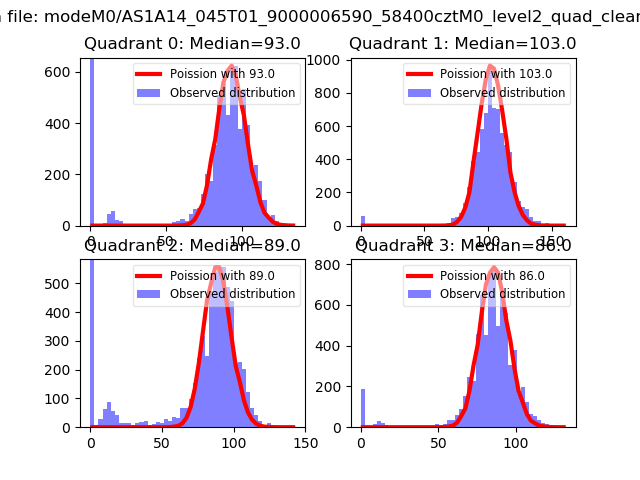

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

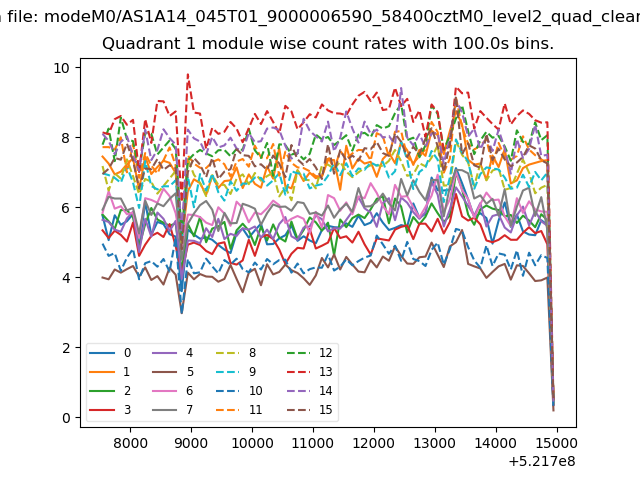

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

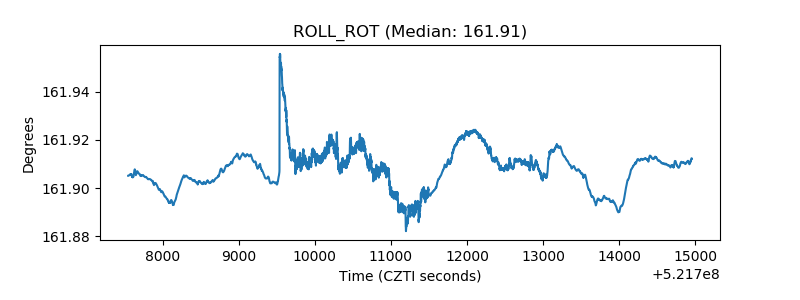

| _ROLL_ROT |  |

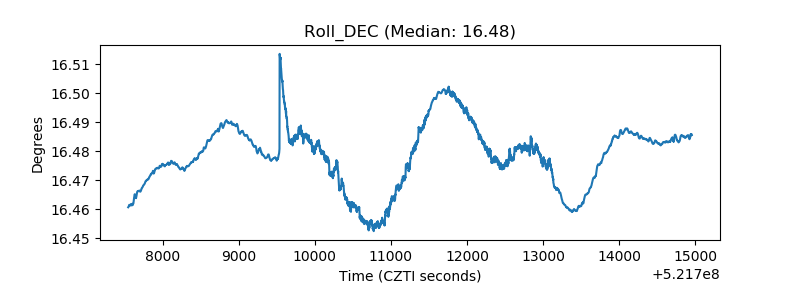

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
