| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58402cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58402cztM0_level2_quad_clean.evt |
| Size (bytes) | 715,144,320 | 96,923,520 |
| Size | 682.0 MB | 92.4 MB |
| Events in quadrant A | 4,966,389 | 646,294 |
| Events in quadrant B | 7,731,685 | 671,202 |
| Events in quadrant C | 7,923,979 | 550,539 |
| Events in quadrant D | 5,311,324 | 580,815 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19688 | 0 |
| B | 0 | 28036 | 0 |
| C | 0 | 28364 | 0 |
| D | 0 | 20358 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6972 | 330 | 4.733219% |
| B | 6973 | 721 | 10.339882% |
| C | 6973 | 1215 | 17.424351% |
| D | 6973 | 333 | 4.775563% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

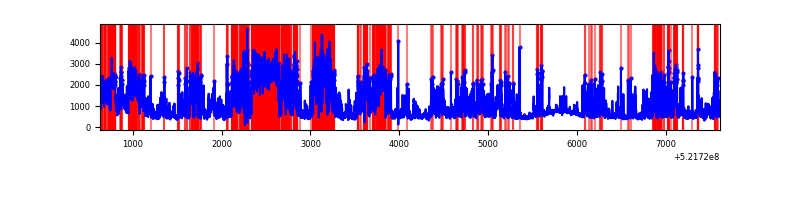

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6972 | 6972 | 188 | 188 | 2.70% | 2.70% |  |
| B | 6973 | 6973 | 451 | 451 | 6.47% | 6.47% |  |
| C | 6973 | 6973 | 1116 | 1116 | 16.00% | 16.00% |  |
| D | 6973 | 6973 | 308 | 308 | 4.42% | 4.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 955654 | 5006.17 | 770 | 752 | 190.7 |
| A | 12 | 80 | 314401 | 1644.33 | 770 | 752 | 190.7 |
| A | 7 | 64 | 141614 | 738.48 | 770 | 752 | 190.7 |
| B | 5 | 172 | 2966626 | 18391.66 | 752 | 723 | 161.3 |
| B | 4 | 158 | 1006498 | 6236.84 | 752 | 723 | 161.3 |
| B | 6 | 255 | 328531 | 2032.75 | 752 | 723 | 161.3 |
| C | 9 | 38 | 2246529 | 11421.68 | 710 | 704 | 196.6 |
| C | 15 | 147 | 1555411 | 7906.83 | 710 | 704 | 196.6 |
| C | 13 | 3 | 657807 | 3341.85 | 710 | 704 | 196.6 |
| D | 8 | 240 | 723947 | 3388.56 | 746 | 713 | 213.4 |
| D | 2 | 249 | 433786 | 2029.07 | 746 | 713 | 213.4 |
| D | 5 | 113 | 400412 | 1872.71 | 746 | 713 | 213.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

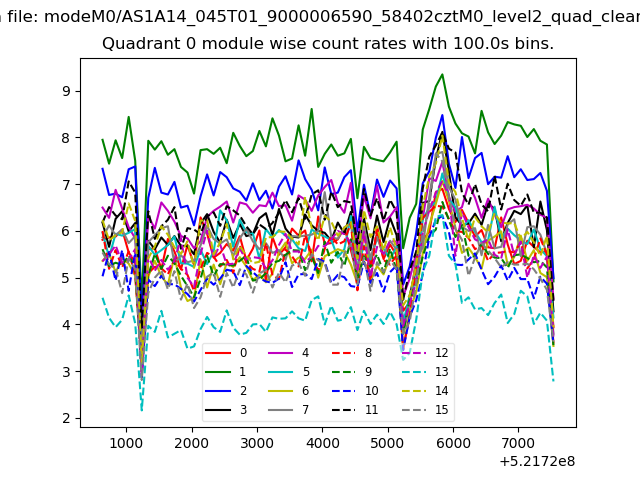

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

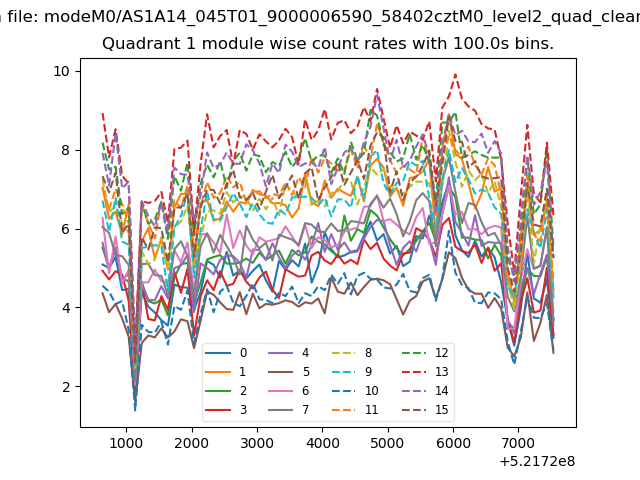

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

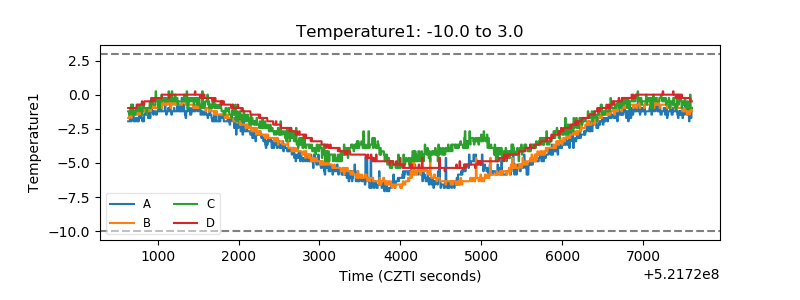

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

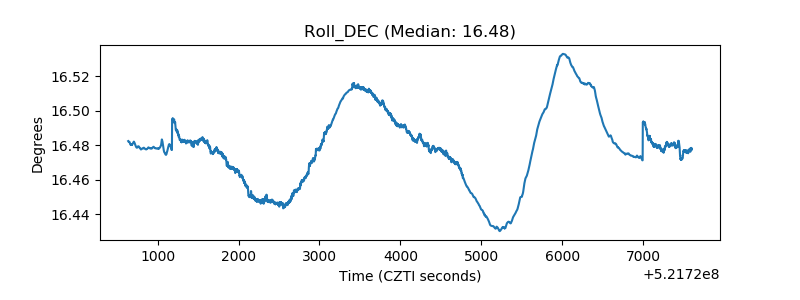

| _Roll_DEC |  |

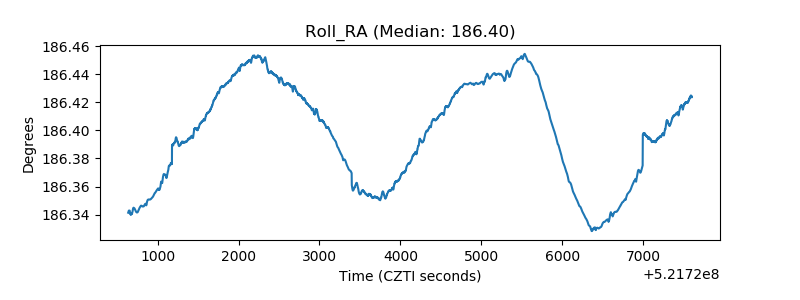

| _Roll_RA |  |

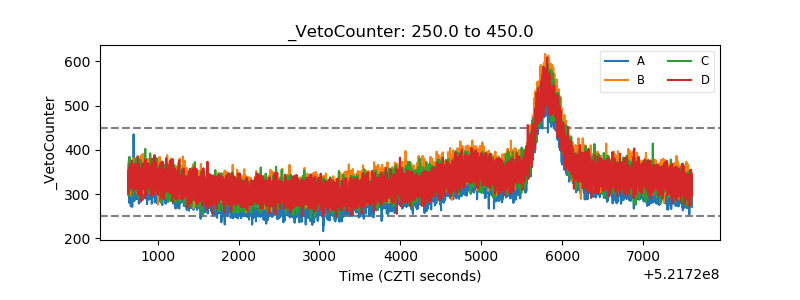

| Veto Counter |  |
