| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58406cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58406cztM0_level2_quad_clean.evt |
| Size (bytes) | 746,282,880 | 79,562,880 |
| Size | 711.7 MB | 75.9 MB |
| Events in quadrant A | 8,450,382 | 534,218 |
| Events in quadrant B | 11,328,059 | 314,207 |
| Events in quadrant C | 3,191,358 | 578,343 |
| Events in quadrant D | 4,164,046 | 539,385 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29399 | 1 |
| B | 0 | 38018 | 1 |
| C | 0 | 14031 | 1 |
| D | 0 | 16749 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6342 | 1029 | 16.225166% |
| B | 6343 | 3660 | 57.701403% |
| C | 6343 | 75 | 1.182406% |
| D | 6342 | 132 | 2.081362% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

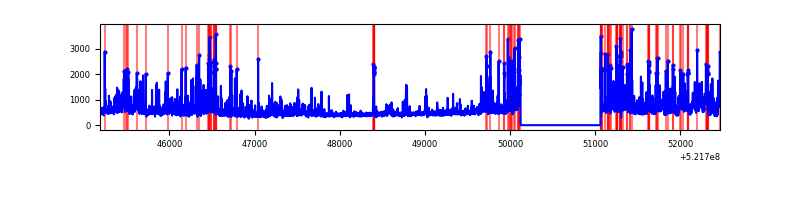

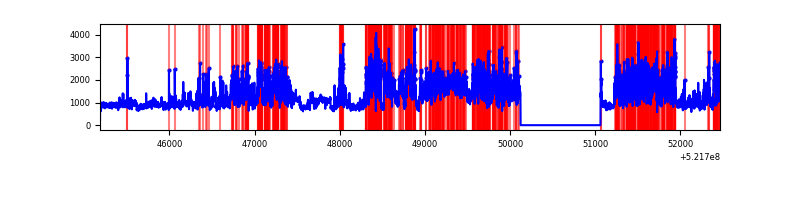

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7282 | 6343 | 846 | 846 | 11.62% | 13.34% |  |
| B | 7283 | 6341 | 2514 | 2514 | 34.52% | 39.65% |  |
| C | 7283 | 6344 | 41 | 41 | 0.56% | 0.65% |  |
| D | 7282 | 6343 | 122 | 122 | 1.68% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 2257139 | 13972.77 | 648 | 630 | 161.5 |
| A | 4 | 249 | 1832523 | 11343.46 | 648 | 630 | 161.5 |
| A | 12 | 114 | 924105 | 5718.35 | 648 | 630 | 161.5 |
| B | 6 | 255 | 8184037 | 81464.06 | 467 | 450 | 100.5 |
| B | 5 | 172 | 779156 | 7751.68 | 467 | 450 | 100.5 |
| B | 4 | 158 | 160096 | 1589.21 | 467 | 450 | 100.5 |
| C | 9 | 38 | 158066 | 859.61 | 664 | 656 | 183.1 |
| C | 4 | 5 | 109869 | 596.41 | 664 | 656 | 183.1 |
| C | 13 | 3 | 93532 | 507.19 | 664 | 656 | 183.1 |
| D | 8 | 240 | 561253 | 3006.29 | 654 | 624 | 186.5 |
| D | 2 | 249 | 314901 | 1685.26 | 654 | 624 | 186.5 |
| D | 12 | 110 | 242088 | 1294.82 | 654 | 624 | 186.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

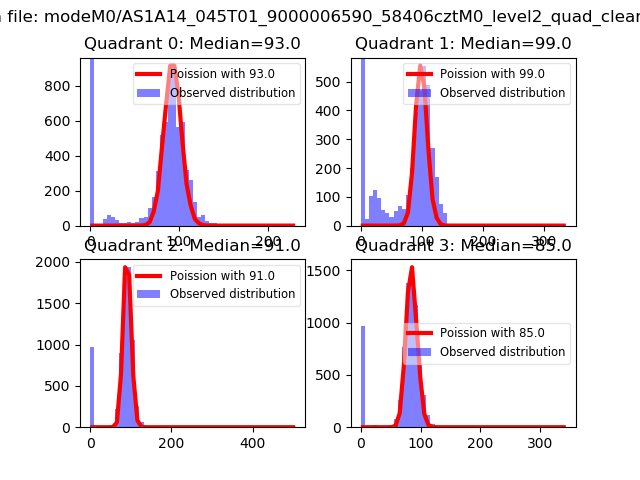

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

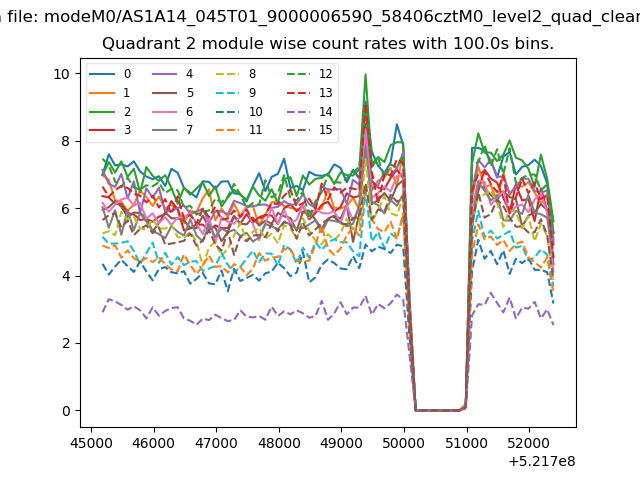

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

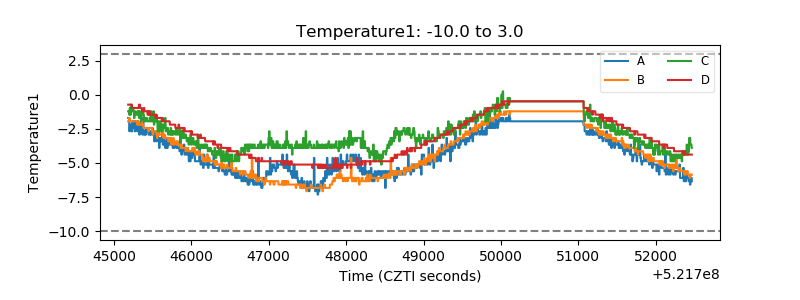

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

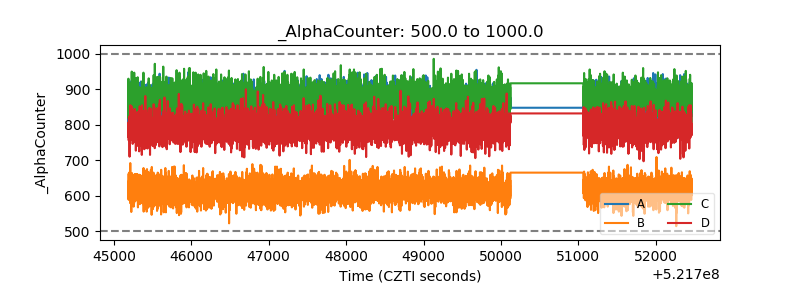

| Alpha Counter |  |

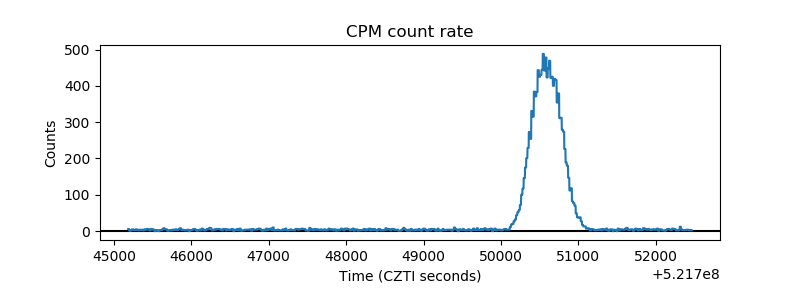

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

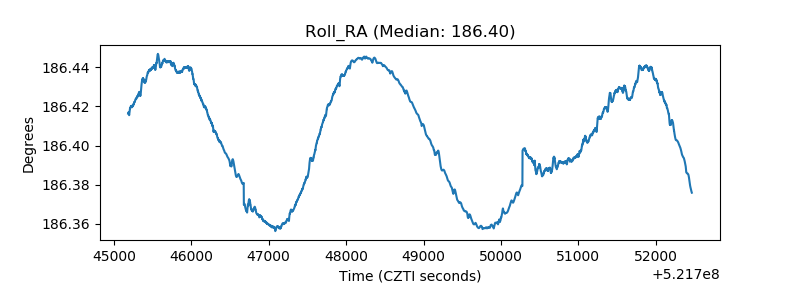

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
