| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58414cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58414cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,624,000 | 90,483,840 |
| Size | 435.5 MB | 86.3 MB |
| Events in quadrant A | 3,708,720 | 589,725 |
| Events in quadrant B | 4,212,724 | 616,576 |
| Events in quadrant C | 4,846,432 | 540,800 |
| Events in quadrant D | 3,623,729 | 535,241 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 14 |
| B | 0 | 147 | 9 |
| C | 0 | 148 | 14 |
| D | 0 | 148 | 16 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17307 | 1869 |
| B | 0 | 19139 | 2114 |
| C | 0 | 21345 | 2503 |
| D | 0 | 17104 | 1836 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 3 |
| B | 0 | 7 | 3 |
| C | 0 | 7 | 3 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6578 | 283 | 4.302220% |
| B | 6565 | 595 | 9.063214% |
| C | 6504 | 563 | 8.656212% |
| D | 6579 | 228 | 3.465572% |

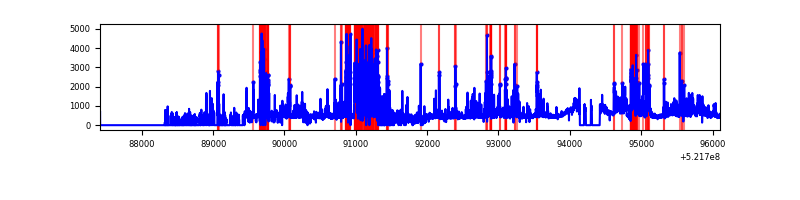

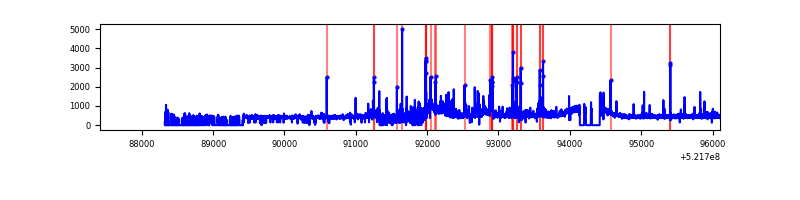

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7781 | 6905 | 9 | 9 | 0.12% | 0.13% |  |
| B | 8674 | 6898 | 261 | 261 | 3.01% | 3.78% |  |
| C | 8690 | 6859 | 285 | 285 | 3.28% | 4.16% |  |
| D | 7781 | 6909 | 33 | 33 | 0.42% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 397628 | 2127.09 | 751 | 730 | 186.6 |
| A | 3 | 14 | 278257 | 1487.35 | 751 | 730 | 186.6 |
| A | 10 | 251 | 45247 | 238.58 | 751 | 730 | 186.6 |
| B | 5 | 172 | 415297 | 2677.5 | 713 | 687 | 154.8 |
| B | 0 | 153 | 251560 | 1620.11 | 713 | 687 | 154.8 |
| B | 4 | 201 | 197654 | 1271.99 | 713 | 687 | 154.8 |
| C | 5 | 10 | 948528 | 4921.85 | 706 | 700 | 192.6 |
| C | 9 | 38 | 717464 | 3721.99 | 706 | 700 | 192.6 |
| C | 9 | 237 | 118146 | 609.87 | 706 | 700 | 192.6 |
| D | 12 | 110 | 204046 | 981.71 | 732 | 697 | 207.1 |
| D | 8 | 240 | 161704 | 777.29 | 732 | 697 | 207.1 |
| D | 11 | 129 | 124917 | 599.7 | 732 | 697 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

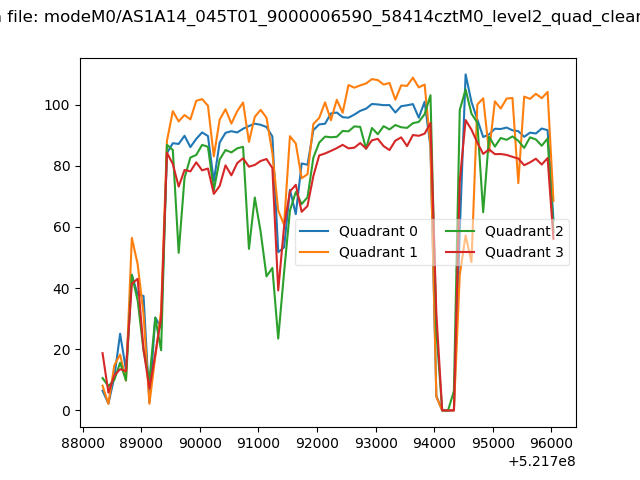

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

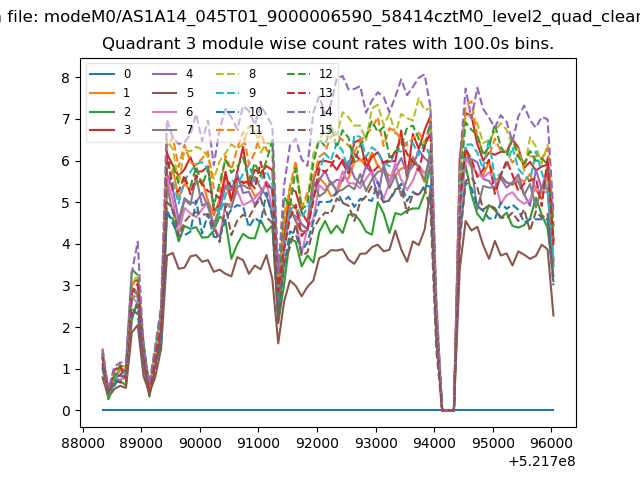

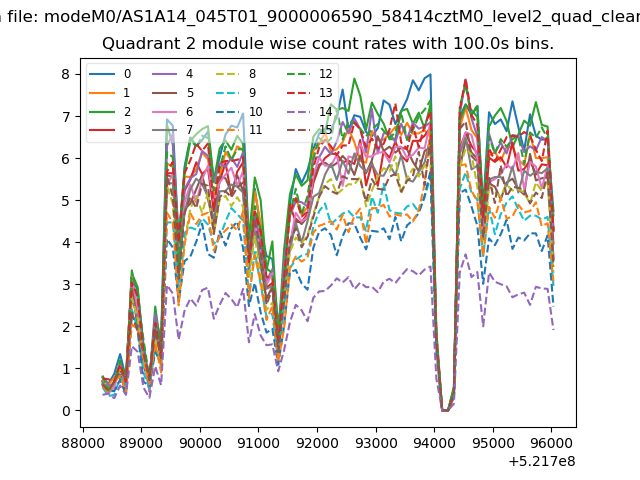

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

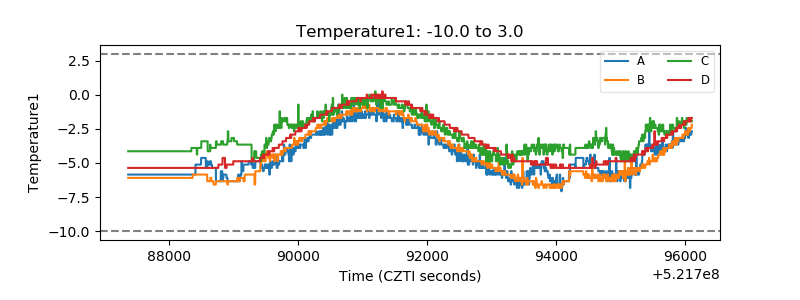

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

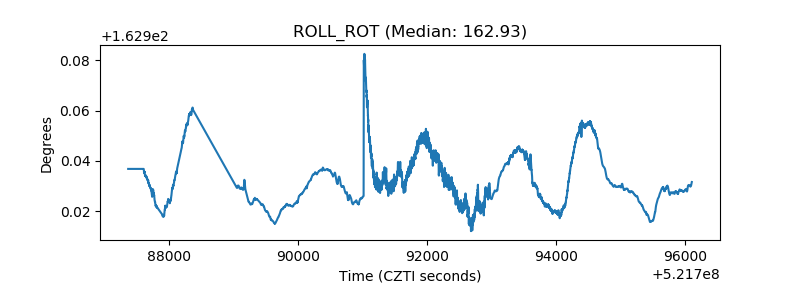

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

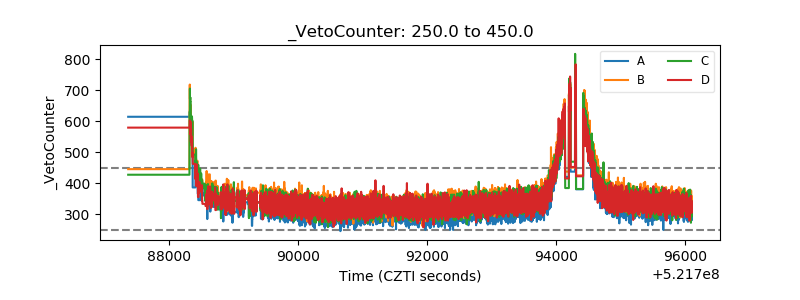

| Veto Counter |  |
