| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58420cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58420cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,080,745,280 | 404,657,280 |
| Size | 1.9 GB | 385.9 MB |
| Events in quadrant A | 15,643,200 | 2,670,209 |
| Events in quadrant B | 16,934,800 | 2,788,853 |
| Events in quadrant C | 22,185,036 | 2,496,014 |
| Events in quadrant D | 20,072,766 | 2,348,858 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 580 | 0 |
| B | 0 | 580 | 0 |
| C | 0 | 580 | 0 |
| D | 0 | 580 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66047 | 5 |
| B | 0 | 70017 | 4 |
| C | 0 | 85777 | 4 |
| D | 0 | 78946 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28313 | 619 | 2.186275% |
| B | 28314 | 1617 | 5.710956% |
| C | 28314 | 1579 | 5.576746% |
| D | 28314 | 1438 | 5.078760% |

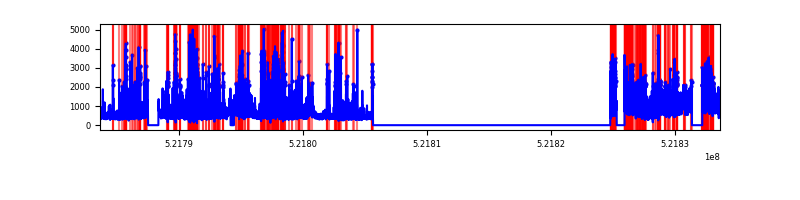

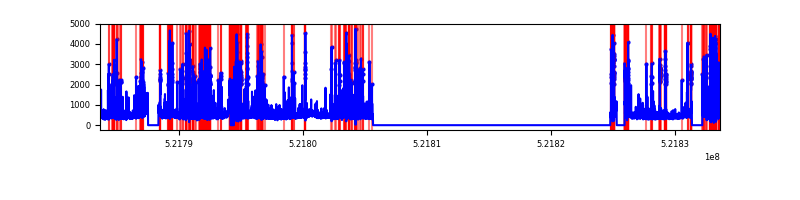

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 50016 | 28320 | 143 | 143 | 0.29% | 0.50% |  |
| B | 50016 | 28320 | 882 | 882 | 1.76% | 3.11% |  |
| C | 50016 | 28321 | 962 | 962 | 1.92% | 3.40% |  |
| D | 50016 | 28321 | 1065 | 1065 | 2.13% | 3.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 2017720 | 2623.74 | 3136 | 3056 | 767.9 |
| A | 12 | 114 | 483288 | 625.42 | 3136 | 3056 | 767.9 |
| A | 10 | 251 | 200369 | 256.97 | 3136 | 3056 | 767.9 |
| B | 5 | 185 | 1233246 | 1900.39 | 3034 | 2915 | 647.4 |
| B | 5 | 172 | 615282 | 945.87 | 3034 | 2915 | 647.4 |
| B | 4 | 201 | 583672 | 897.05 | 3034 | 2915 | 647.4 |
| C | 9 | 38 | 6213656 | 7670.46 | 2991 | 2965 | 809.7 |
| C | 5 | 10 | 2438432 | 3007.9 | 2991 | 2965 | 809.7 |
| C | 6 | 223 | 435679 | 534.42 | 2991 | 2965 | 809.7 |
| D | 8 | 240 | 3523816 | 4166.85 | 2999 | 2865 | 845.0 |
| D | 12 | 110 | 2421803 | 2862.68 | 2999 | 2865 | 845.0 |
| D | 11 | 129 | 813847 | 959.75 | 2999 | 2865 | 845.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

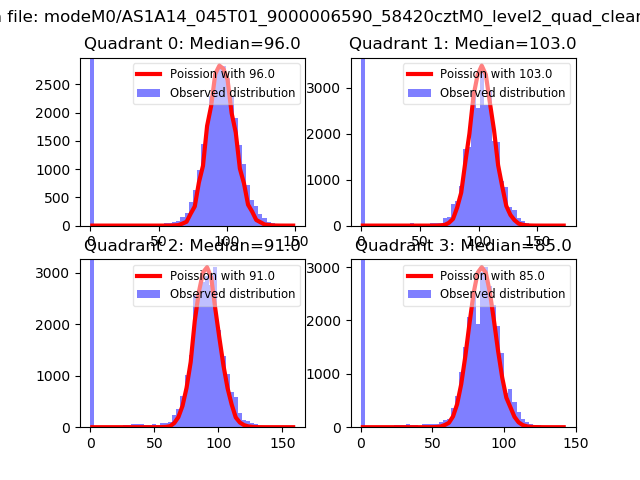

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

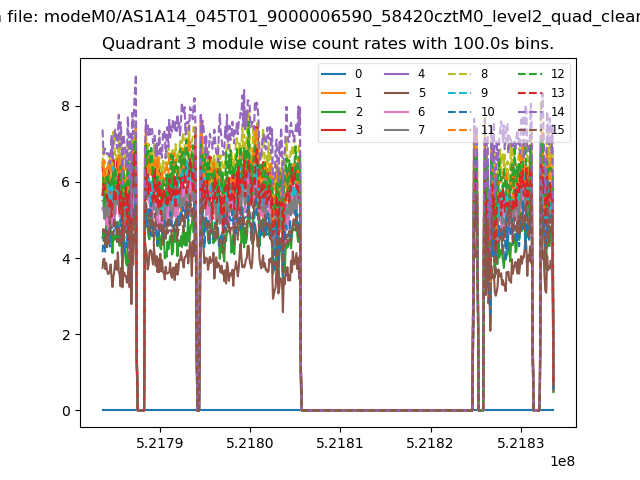

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

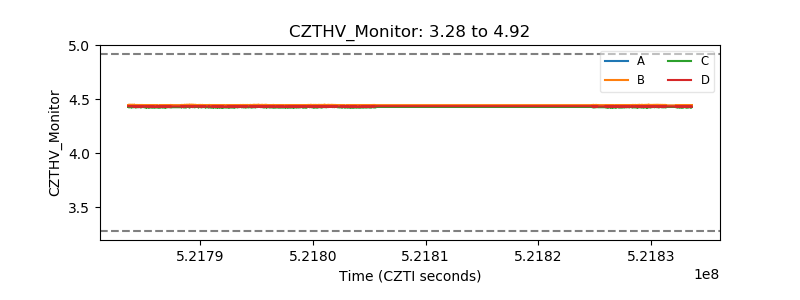

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

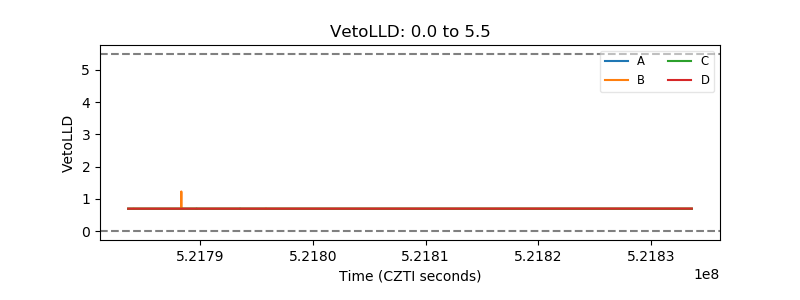

| Veto LLD |  |

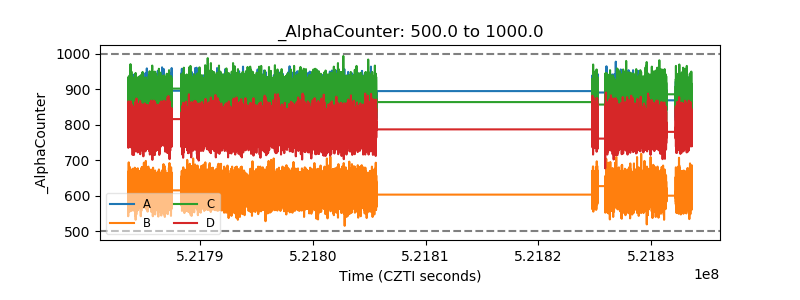

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

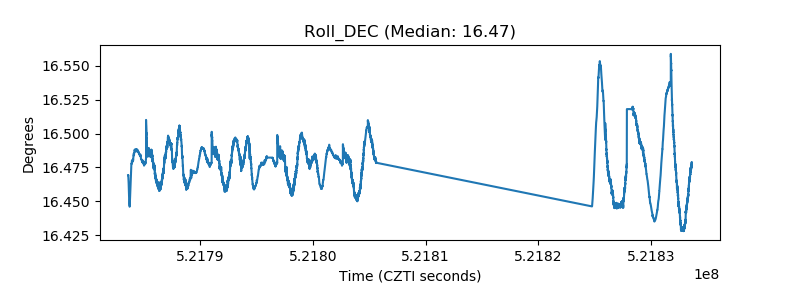

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
