| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58424cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58424cztM0_level2_quad_clean.evt |
| Size (bytes) | 390,735,360 | 96,926,400 |
| Size | 372.6 MB | 92.4 MB |
| Events in quadrant A | 2,956,807 | 642,930 |
| Events in quadrant B | 3,817,011 | 682,771 |
| Events in quadrant C | 3,498,150 | 602,171 |
| Events in quadrant D | 3,698,398 | 564,613 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13339 | 2 |
| B | 0 | 15473 | 2 |
| C | 0 | 14895 | 2 |
| D | 0 | 15396 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6338 | 41 | 0.646892% |
| B | 6337 | 159 | 2.509074% |
| C | 6337 | 166 | 2.619536% |
| D | 6337 | 127 | 2.004103% |

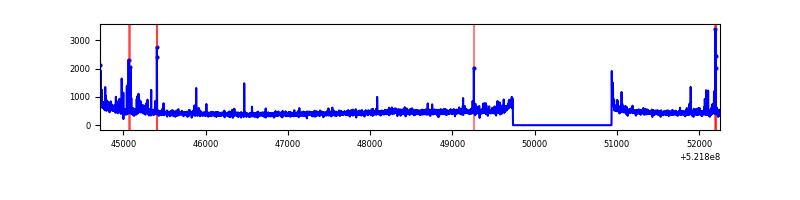

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7538 | 6339 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7537 | 6338 | 106 | 106 | 1.41% | 1.67% |  |
| C | 7537 | 6338 | 107 | 107 | 1.42% | 1.69% |  |
| D | 7537 | 6338 | 96 | 96 | 1.27% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 75738 | 421.58 | 712 | 694 | 178.0 |
| A | 11 | 31 | 27951 | 153.12 | 712 | 694 | 178.0 |
| A | 7 | 112 | 27462 | 150.38 | 712 | 694 | 178.0 |
| B | 5 | 172 | 413629 | 2715.03 | 704 | 678 | 152.1 |
| B | 4 | 201 | 187065 | 1225.44 | 704 | 678 | 152.1 |
| B | 6 | 255 | 110435 | 721.62 | 704 | 678 | 152.1 |
| C | 5 | 10 | 432410 | 2293.02 | 683 | 678 | 188.3 |
| C | 6 | 223 | 117624 | 621.13 | 683 | 678 | 188.3 |
| C | 14 | 245 | 61077 | 320.79 | 683 | 678 | 188.3 |
| D | 8 | 240 | 462037 | 2385.72 | 677 | 648 | 193.4 |
| D | 10 | 86 | 172799 | 890.15 | 677 | 648 | 193.4 |
| D | 7 | 222 | 111412 | 572.73 | 677 | 648 | 193.4 |

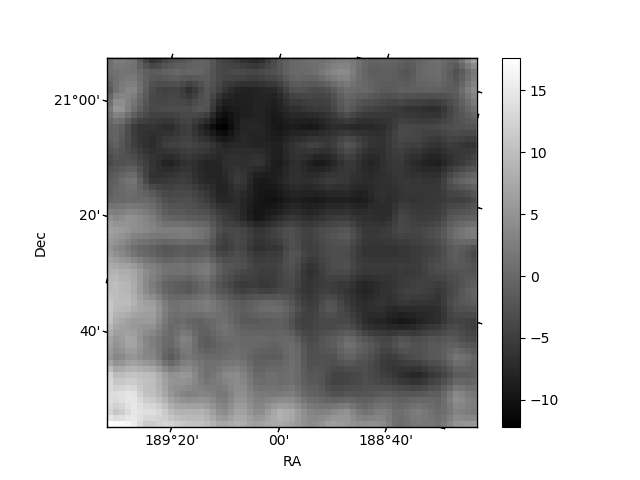

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

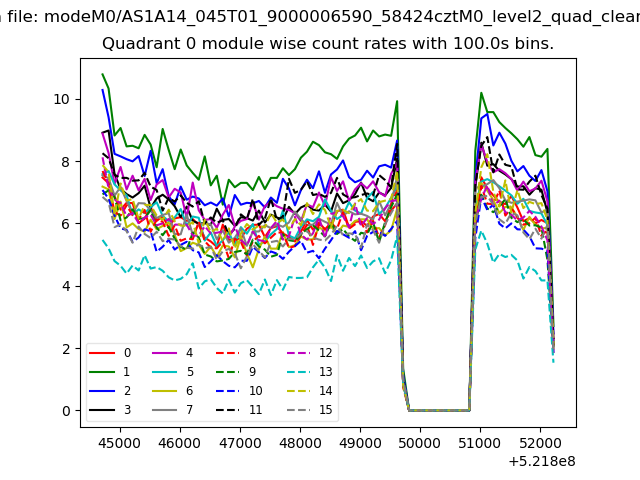

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

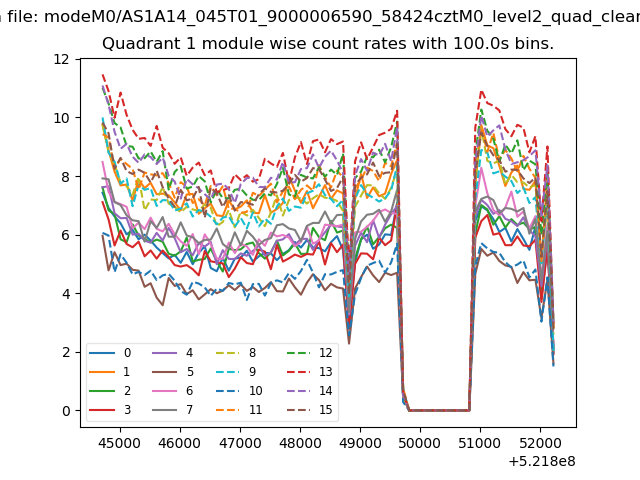

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

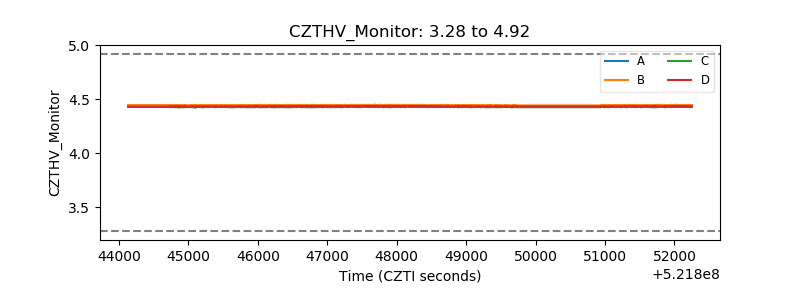

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

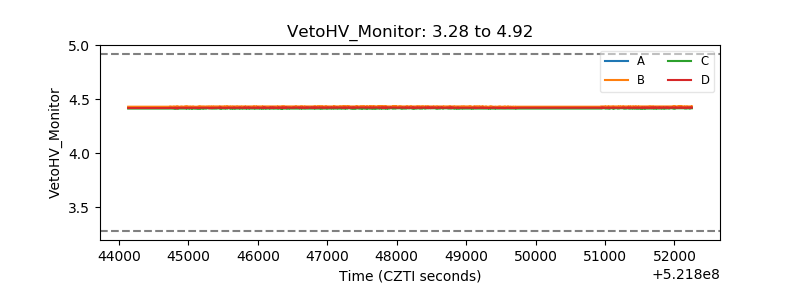

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

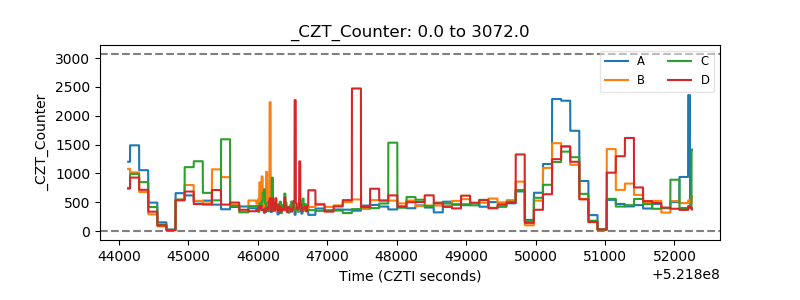

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

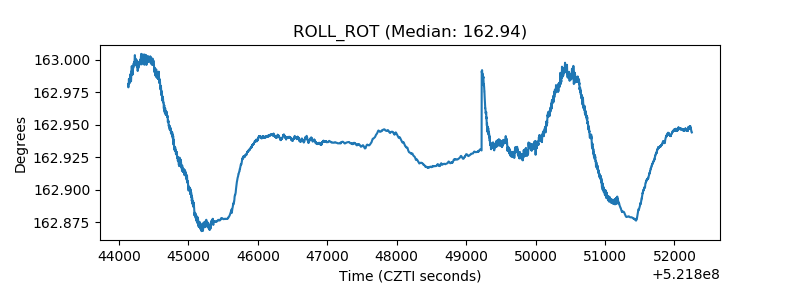

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
