| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58426cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58426cztM0_level2_quad_clean.evt |
| Size (bytes) | 402,963,840 | 99,210,240 |
| Size | 384.3 MB | 94.6 MB |
| Events in quadrant A | 3,009,074 | 659,027 |
| Events in quadrant B | 3,720,660 | 698,657 |
| Events in quadrant C | 3,471,255 | 624,926 |
| Events in quadrant D | 4,212,643 | 570,815 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13442 | 2 |
| B | 0 | 15368 | 2 |
| C | 0 | 14830 | 2 |
| D | 0 | 17124 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6460 | 46 | 0.712074% |
| B | 6460 | 244 | 3.777090% |
| C | 6460 | 111 | 1.718266% |
| D | 6460 | 259 | 4.009288% |

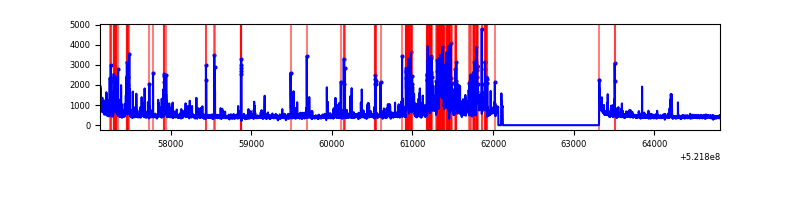

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7690 | 6462 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7690 | 6462 | 133 | 133 | 1.73% | 2.06% |  |
| C | 7690 | 6462 | 73 | 73 | 0.95% | 1.13% |  |
| D | 7690 | 6462 | 207 | 207 | 2.69% | 3.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 63790 | 340.55 | 746 | 726 | 185.2 |
| A | 3 | 245 | 13912 | 71.21 | 746 | 726 | 185.2 |
| A | 12 | 114 | 11902 | 60.35 | 746 | 726 | 185.2 |
| B | 4 | 201 | 246608 | 1583.91 | 732 | 706 | 155.3 |
| B | 4 | 171 | 243429 | 1563.43 | 732 | 706 | 155.3 |
| B | 6 | 255 | 78443 | 500.72 | 732 | 706 | 155.3 |
| C | 12 | 252 | 384163 | 1948.1 | 715 | 709 | 196.8 |
| C | 6 | 223 | 112860 | 569.77 | 715 | 709 | 196.8 |
| C | 14 | 254 | 44365 | 221.79 | 715 | 709 | 196.8 |
| D | 2 | 120 | 750080 | 3785.01 | 701 | 672 | 198.0 |
| D | 8 | 240 | 319473 | 1610.16 | 701 | 672 | 198.0 |
| D | 12 | 248 | 227118 | 1143.7 | 701 | 672 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

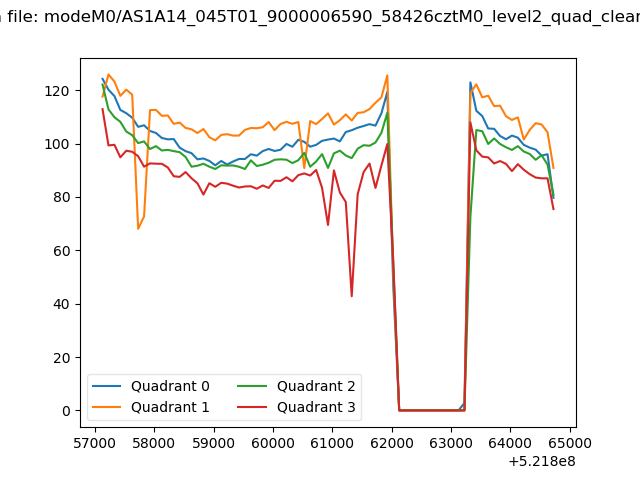

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

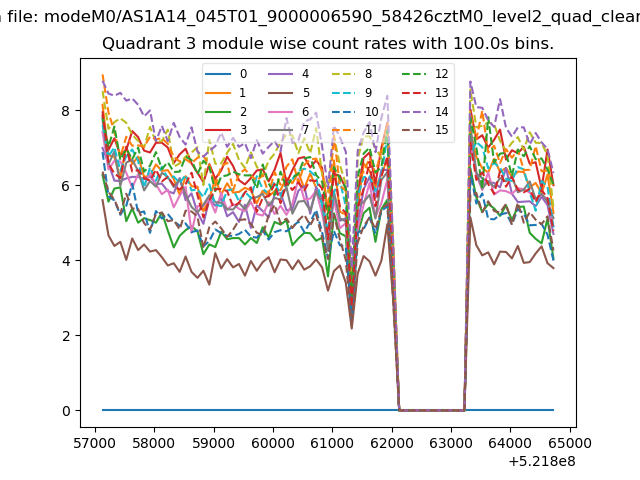

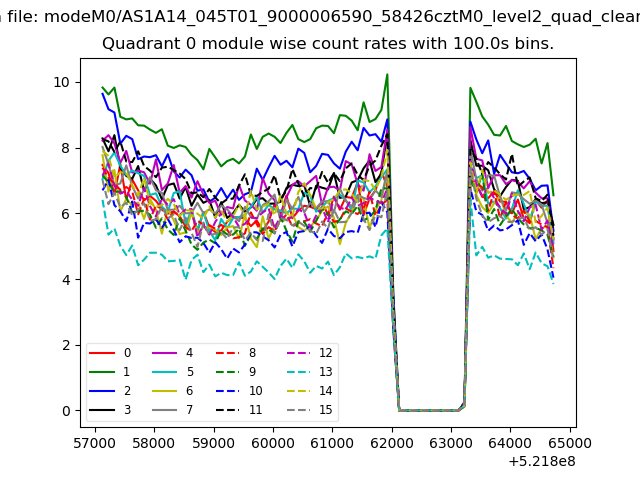

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

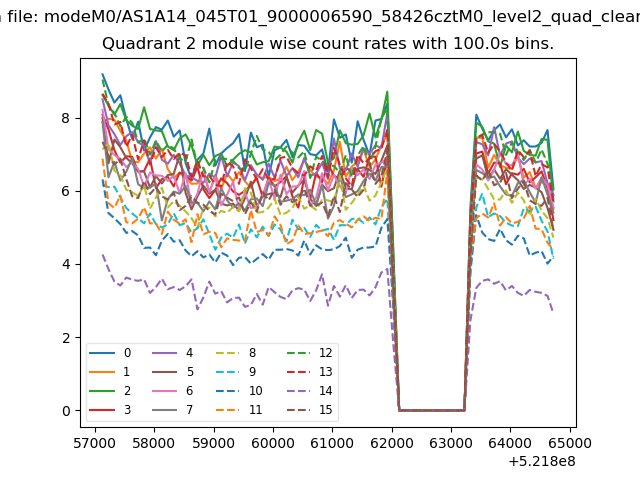

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

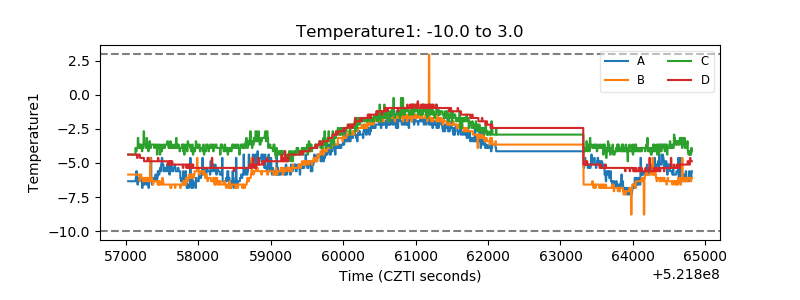

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

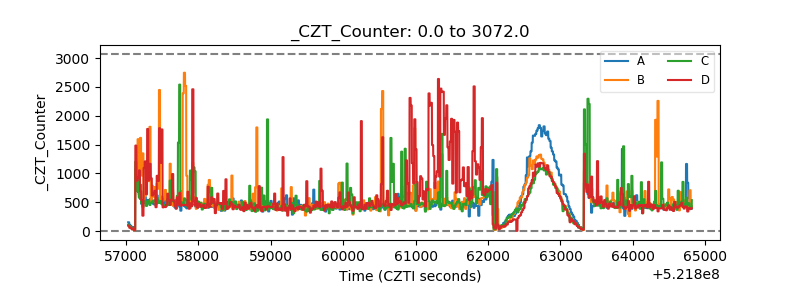

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

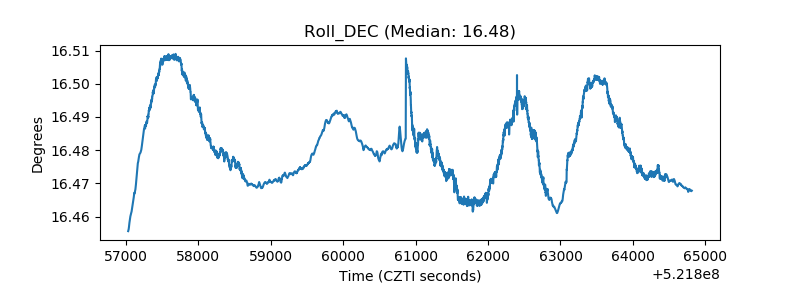

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
