| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58427cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58427cztM0_level2_quad_clean.evt |
| Size (bytes) | 382,305,600 | 100,529,280 |
| Size | 364.6 MB | 95.9 MB |
| Events in quadrant A | 3,206,625 | 654,501 |
| Events in quadrant B | 3,513,030 | 707,467 |
| Events in quadrant C | 3,538,387 | 627,019 |
| Events in quadrant D | 3,374,599 | 590,790 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14289 | 2 |
| B | 0 | 14960 | 2 |
| C | 0 | 15329 | 2 |
| D | 0 | 14813 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6665 | 115 | 1.725431% |
| B | 6665 | 184 | 2.760690% |
| C | 6665 | 154 | 2.310578% |
| D | 6665 | 101 | 1.515379% |

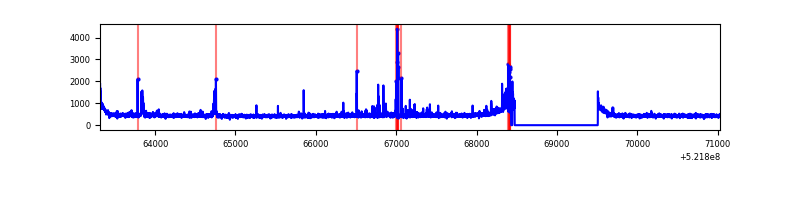

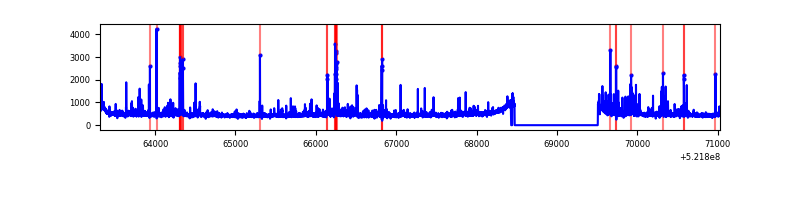

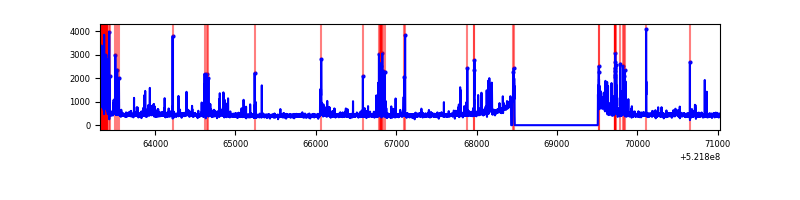

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7715 | 6667 | 16 | 16 | 0.21% | 0.24% |  |
| B | 7715 | 6667 | 36 | 36 | 0.47% | 0.54% |  |
| C | 7715 | 6667 | 79 | 79 | 1.02% | 1.18% |  |
| D | 7715 | 6667 | 36 | 36 | 0.47% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 52051 | 267.04 | 769 | 750 | 192.1 |
| A | 7 | 64 | 47144 | 241.49 | 769 | 750 | 192.1 |
| A | 3 | 245 | 42081 | 215.14 | 769 | 750 | 192.1 |
| B | 6 | 255 | 174263 | 1073.79 | 759 | 733 | 161.6 |
| B | 2 | 249 | 51622 | 314.9 | 759 | 733 | 161.6 |
| B | 4 | 171 | 49095 | 299.26 | 759 | 733 | 161.6 |
| C | 12 | 252 | 434249 | 2146.22 | 736 | 732 | 202.0 |
| C | 6 | 9 | 43798 | 213.21 | 736 | 732 | 202.0 |
| C | 14 | 96 | 42131 | 204.95 | 736 | 732 | 202.0 |
| D | 8 | 240 | 243647 | 1153.62 | 739 | 707 | 210.6 |
| D | 2 | 252 | 71509 | 336.21 | 739 | 707 | 210.6 |
| D | 5 | 32 | 43960 | 205.39 | 739 | 707 | 210.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

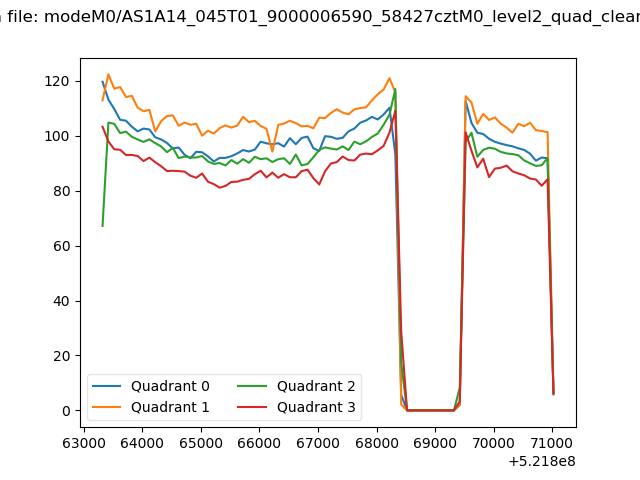

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

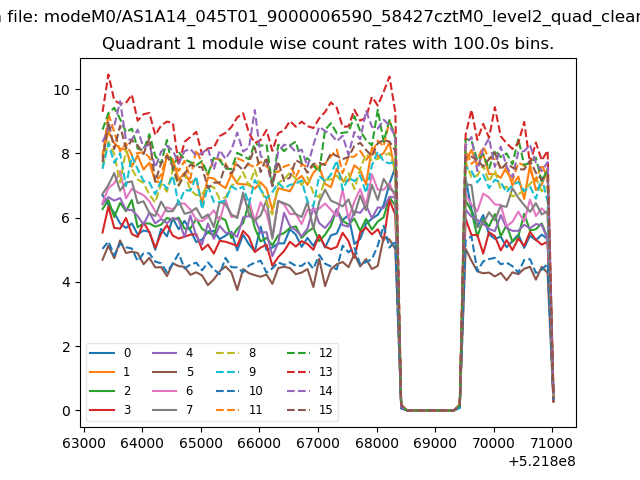

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

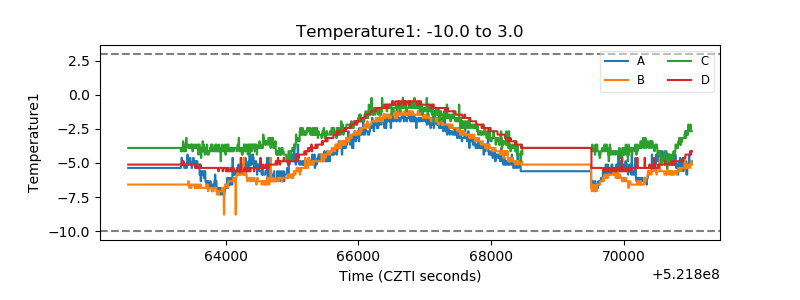

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

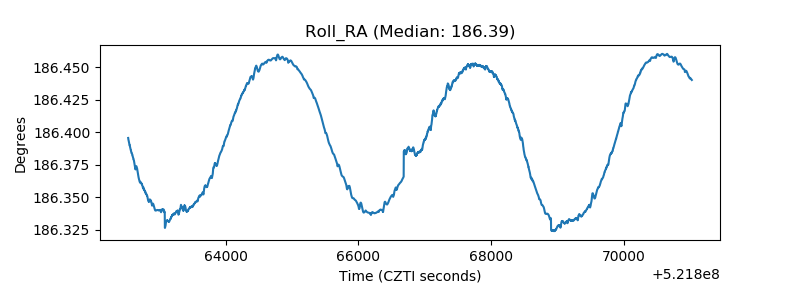

| _Roll_RA |  |
| Veto Counter |  |
