| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58430cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58430cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,564,611,840 | 381,024,000 |
| Size | 1.5 GB | 363.4 MB |
| Events in quadrant A | 12,171,414 | 2,492,495 |
| Events in quadrant B | 15,677,919 | 2,640,397 |
| Events in quadrant C | 13,469,695 | 2,393,858 |
| Events in quadrant D | 14,585,569 | 2,222,717 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 528 | 0 |
| B | 0 | 528 | 0 |
| C | 0 | 528 | 0 |
| D | 0 | 528 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54958 | 3 |
| B | 0 | 64246 | 3 |
| C | 0 | 58883 | 3 |
| D | 0 | 61801 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 25986 | 496 | 1.908720% |
| B | 25986 | 1192 | 4.587085% |
| C | 25986 | 564 | 2.170399% |
| D | 25987 | 710 | 2.732135% |

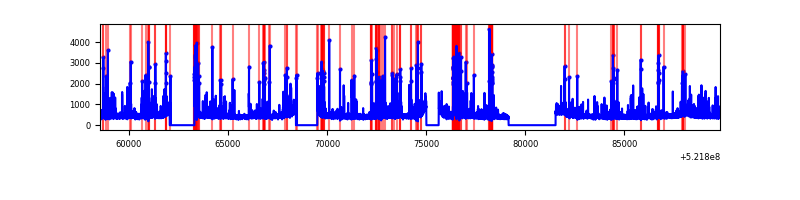

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31264 | 25992 | 27 | 27 | 0.09% | 0.10% |  |
| B | 31264 | 25992 | 407 | 407 | 1.30% | 1.57% |  |
| C | 31264 | 25992 | 263 | 263 | 0.84% | 1.01% |  |
| D | 31264 | 25993 | 397 | 397 | 1.27% | 1.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 189618 | 257.83 | 2957 | 2884 | 724.3 |
| A | 2 | 143 | 148918 | 201.63 | 2957 | 2884 | 724.3 |
| A | 12 | 80 | 100208 | 134.38 | 2957 | 2884 | 724.3 |
| B | 5 | 172 | 2304970 | 3751.49 | 2889 | 2780 | 613.7 |
| B | 4 | 171 | 459334 | 743.97 | 2889 | 2780 | 613.7 |
| B | 10 | 247 | 433472 | 701.83 | 2889 | 2780 | 613.7 |
| C | 12 | 252 | 825673 | 1058.51 | 2846 | 2822 | 777.4 |
| C | 5 | 10 | 477367 | 610.45 | 2846 | 2822 | 777.4 |
| C | 14 | 254 | 143497 | 180.96 | 2846 | 2822 | 777.4 |
| D | 8 | 240 | 1500206 | 1874.57 | 2842 | 2717 | 798.8 |
| D | 2 | 120 | 570406 | 710.64 | 2842 | 2717 | 798.8 |
| D | 12 | 248 | 520431 | 648.08 | 2842 | 2717 | 798.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

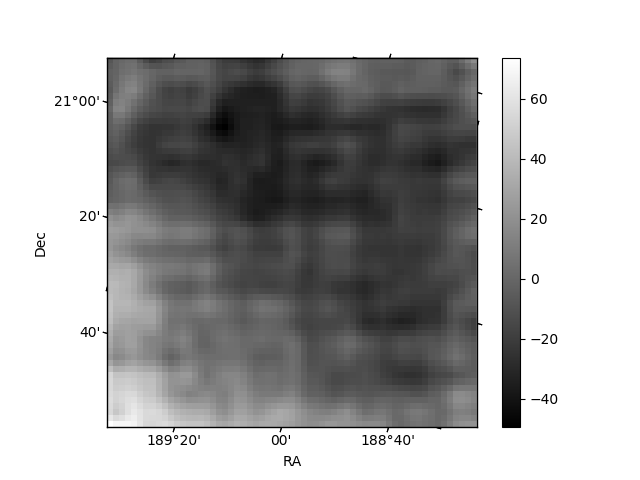

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

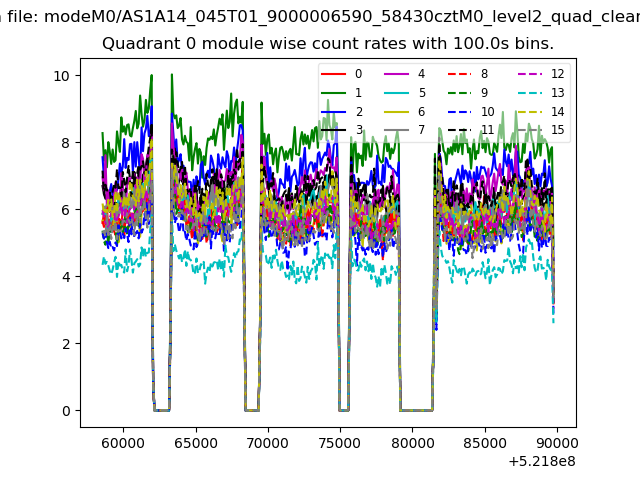

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

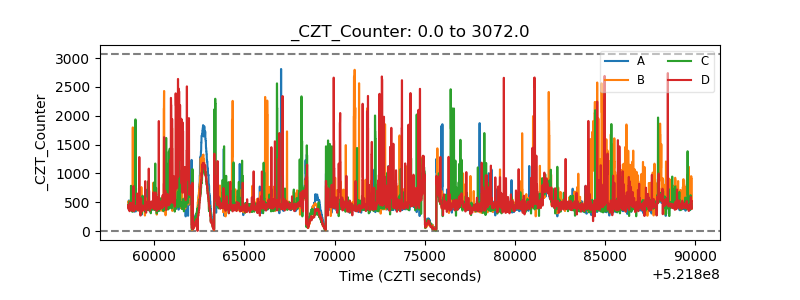

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

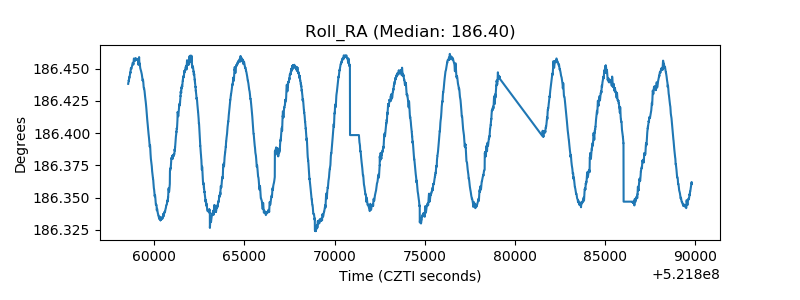

| _Roll_RA |  |

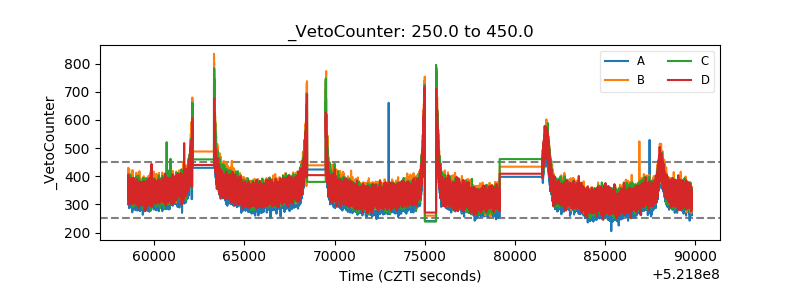

| Veto Counter |  |
