| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58438cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58438cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,535,680 | 96,246,720 |
| Size | 386.7 MB | 91.8 MB |
| Events in quadrant A | 3,806,197 | 625,785 |
| Events in quadrant B | 3,691,979 | 674,951 |
| Events in quadrant C | 3,439,352 | 605,277 |
| Events in quadrant D | 3,576,647 | 562,653 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15824 | 2 |
| B | 0 | 15444 | 5 |
| C | 0 | 14708 | 2 |
| D | 0 | 15132 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6393 | 167 | 2.612232% |
| B | 6392 | 171 | 2.675219% |
| C | 6392 | 81 | 1.267209% |
| D | 6392 | 132 | 2.065081% |

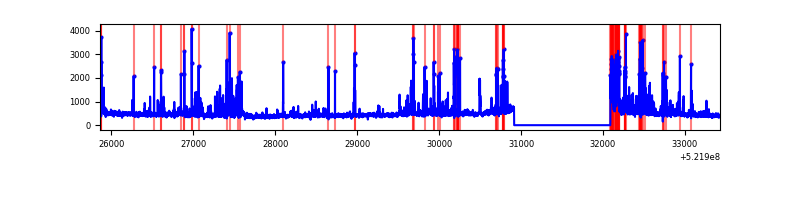

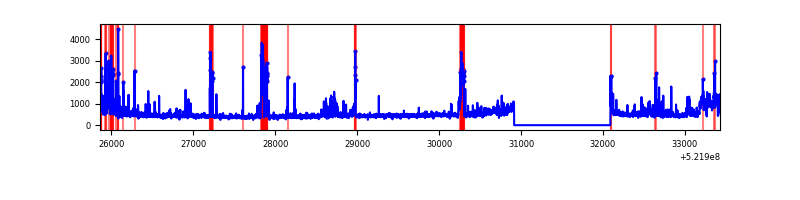

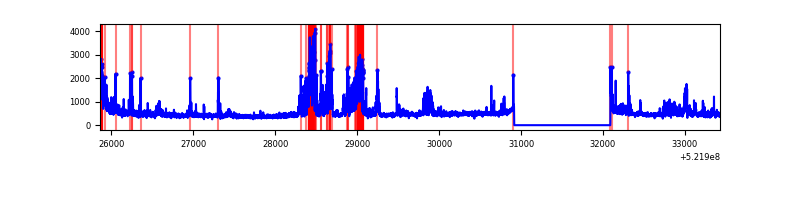

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7568 | 6394 | 133 | 133 | 1.76% | 2.08% |  |
| B | 7567 | 6393 | 119 | 119 | 1.57% | 1.86% |  |
| C | 7567 | 6393 | 86 | 86 | 1.14% | 1.35% |  |
| D | 7567 | 6393 | 116 | 116 | 1.53% | 1.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 701197 | 4023.97 | 701 | 684 | 174.1 |
| A | 7 | 64 | 234537 | 1343.32 | 701 | 684 | 174.1 |
| A | 10 | 251 | 42762 | 241.71 | 701 | 684 | 174.1 |
| B | 4 | 201 | 230840 | 1529.36 | 698 | 673 | 150.5 |
| B | 5 | 172 | 224954 | 1490.25 | 698 | 673 | 150.5 |
| B | 5 | 185 | 113101 | 747.03 | 698 | 673 | 150.5 |
| C | 6 | 223 | 252542 | 1329.45 | 683 | 677 | 189.4 |
| C | 14 | 254 | 124586 | 654.05 | 683 | 677 | 189.4 |
| C | 12 | 250 | 75747 | 396.25 | 683 | 677 | 189.4 |
| D | 8 | 240 | 640863 | 3275.21 | 676 | 646 | 195.5 |
| D | 5 | 32 | 67307 | 341.02 | 676 | 646 | 195.5 |
| D | 10 | 86 | 49509 | 249.97 | 676 | 646 | 195.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

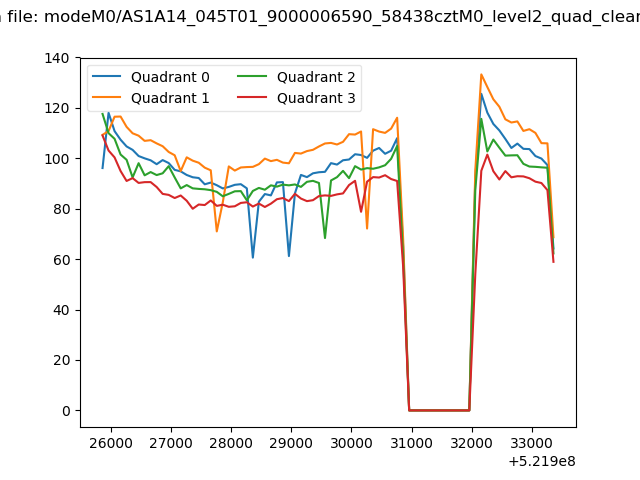

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

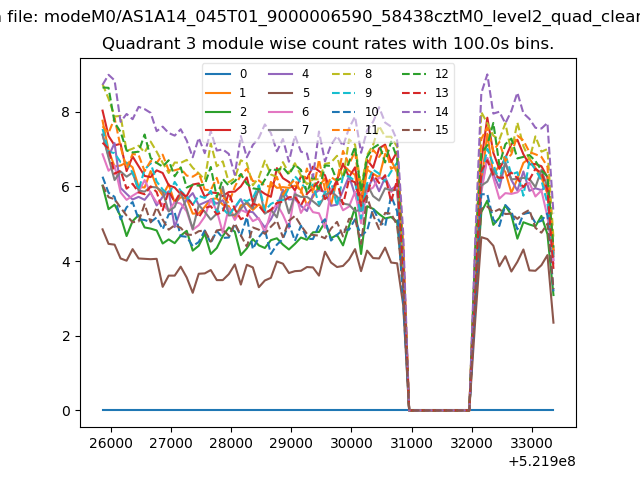

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

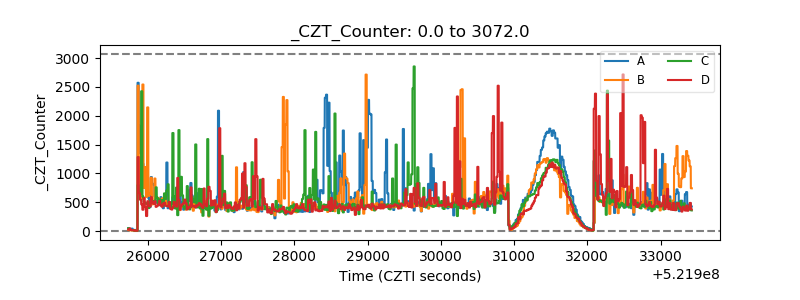

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

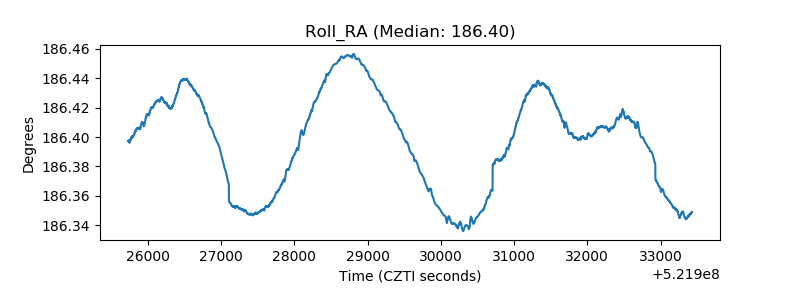

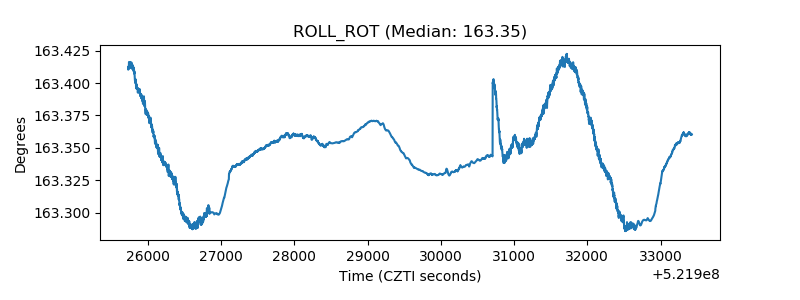

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
