| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58440cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58440cztM0_level2_quad_clean.evt |
| Size (bytes) | 414,360,000 | 101,136,960 |
| Size | 395.2 MB | 96.5 MB |
| Events in quadrant A | 3,235,931 | 671,977 |
| Events in quadrant B | 3,530,420 | 720,333 |
| Events in quadrant C | 4,003,925 | 629,410 |
| Events in quadrant D | 4,056,348 | 582,134 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14149 | 2 |
| B | 0 | 14957 | 2 |
| C | 0 | 16474 | 2 |
| D | 0 | 16731 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6577 | 57 | 0.866657% |
| B | 6577 | 185 | 2.812833% |
| C | 6577 | 238 | 3.618671% |
| D | 6577 | 244 | 3.709898% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

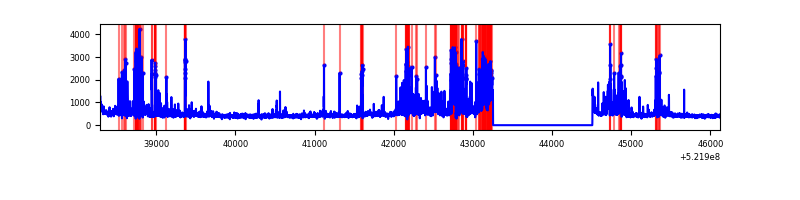

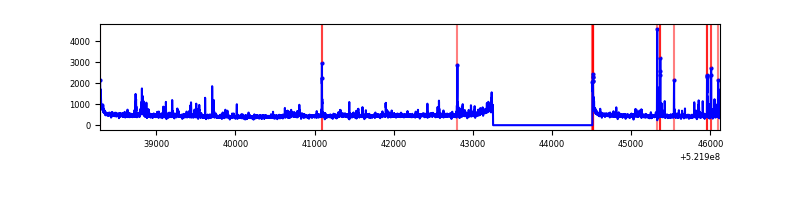

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7832 | 6578 | 21 | 21 | 0.27% | 0.32% |  |
| B | 7832 | 6578 | 107 | 107 | 1.37% | 1.63% |  |
| C | 7832 | 6578 | 163 | 163 | 2.08% | 2.48% |  |
| D | 7832 | 6578 | 190 | 190 | 2.43% | 2.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 131396 | 693.95 | 754 | 736 | 188.3 |
| A | 12 | 114 | 98173 | 517.5 | 754 | 736 | 188.3 |
| A | 10 | 251 | 38559 | 200.88 | 754 | 736 | 188.3 |
| B | 4 | 201 | 204292 | 1270.27 | 745 | 716 | 160.3 |
| B | 7 | 252 | 118772 | 736.64 | 745 | 716 | 160.3 |
| B | 10 | 246 | 100187 | 620.68 | 745 | 716 | 160.3 |
| C | 1 | 12 | 552886 | 2777.0 | 718 | 716 | 198.8 |
| C | 14 | 245 | 174466 | 873.83 | 718 | 716 | 198.8 |
| C | 12 | 249 | 167903 | 840.83 | 718 | 716 | 198.8 |
| D | 8 | 240 | 685922 | 3430.43 | 707 | 678 | 199.8 |
| D | 6 | 239 | 283268 | 1414.69 | 707 | 678 | 199.8 |
| D | 12 | 248 | 71821 | 356.15 | 707 | 678 | 199.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

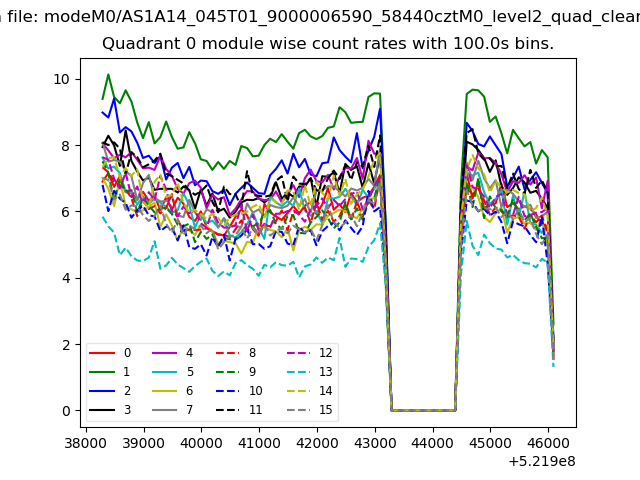

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

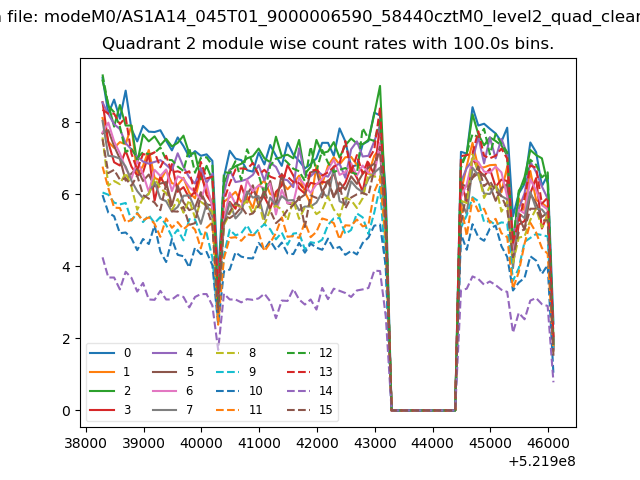

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

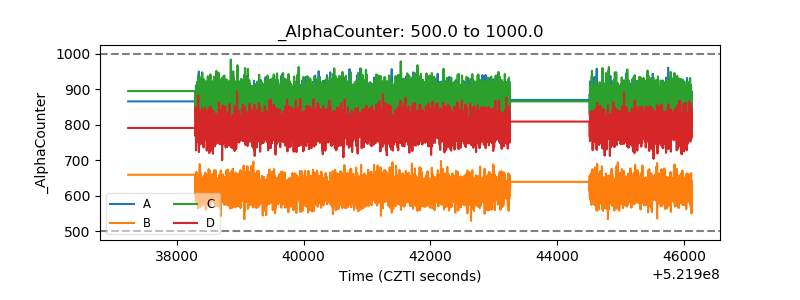

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

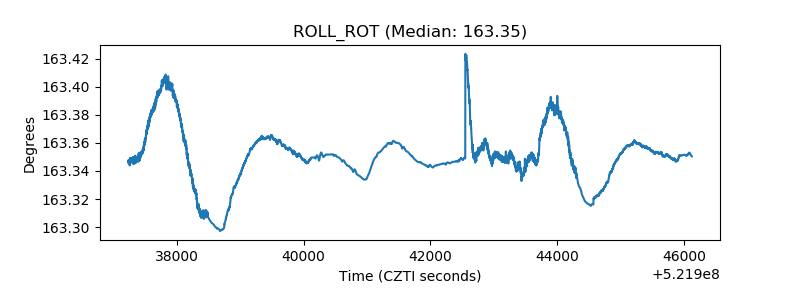

| _ROLL_ROT |  |

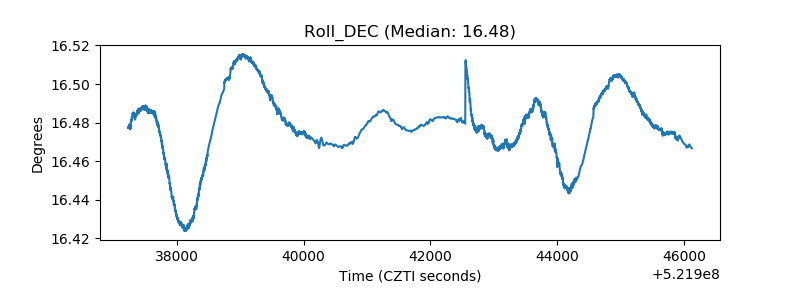

| _Roll_DEC |  |

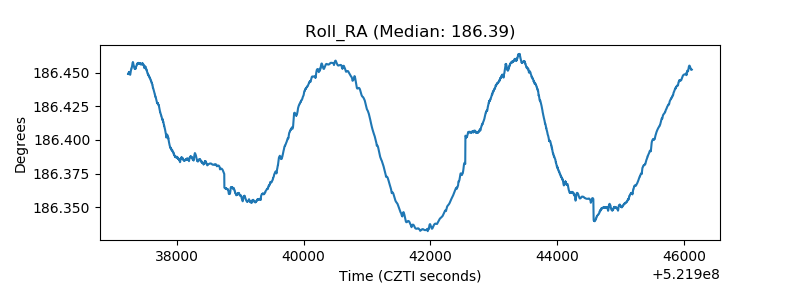

| _Roll_RA |  |
| Veto Counter |  |
