| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58443cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58443cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,420,800 | 114,589,440 |
| Size | 502.0 MB | 109.3 MB |
| Events in quadrant A | 4,123,641 | 746,974 |
| Events in quadrant B | 4,610,555 | 782,948 |
| Events in quadrant C | 5,479,008 | 702,958 |
| Events in quadrant D | 4,643,740 | 674,817 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17917 | 3 |
| B | 0 | 19373 | 3 |
| C | 0 | 21917 | 3 |
| D | 0 | 19567 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8091 | 414 | 5.116796% |
| B | 8091 | 681 | 8.416759% |
| C | 8091 | 687 | 8.490916% |
| D | 8091 | 412 | 5.092078% |

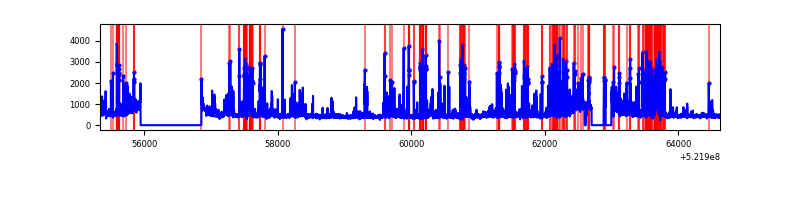

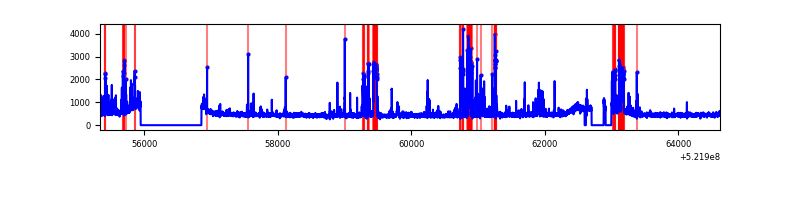

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9286 | 8091 | 29 | 29 | 0.31% | 0.36% |  |
| B | 9286 | 8092 | 185 | 185 | 1.99% | 2.29% |  |
| C | 9286 | 8091 | 330 | 330 | 3.55% | 4.08% |  |
| D | 9286 | 8092 | 123 | 123 | 1.32% | 1.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 143048 | 599.65 | 957 | 929 | 237.0 |
| A | 12 | 80 | 103538 | 432.94 | 957 | 929 | 237.0 |
| A | 13 | 248 | 95910 | 400.76 | 957 | 929 | 237.0 |
| B | 4 | 201 | 379149 | 1887.27 | 925 | 889 | 200.4 |
| B | 5 | 172 | 253777 | 1261.74 | 925 | 889 | 200.4 |
| B | 8 | 128 | 74726 | 368.4 | 925 | 889 | 200.4 |
| C | 5 | 10 | 1140789 | 4682.26 | 902 | 896 | 243.4 |
| C | 14 | 245 | 221047 | 904.3 | 902 | 896 | 243.4 |
| C | 6 | 223 | 216220 | 884.47 | 902 | 896 | 243.4 |
| D | 8 | 240 | 391181 | 1513.59 | 922 | 880 | 257.9 |
| D | 2 | 249 | 269419 | 1041.4 | 922 | 880 | 257.9 |
| D | 7 | 222 | 70466 | 269.86 | 922 | 880 | 257.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

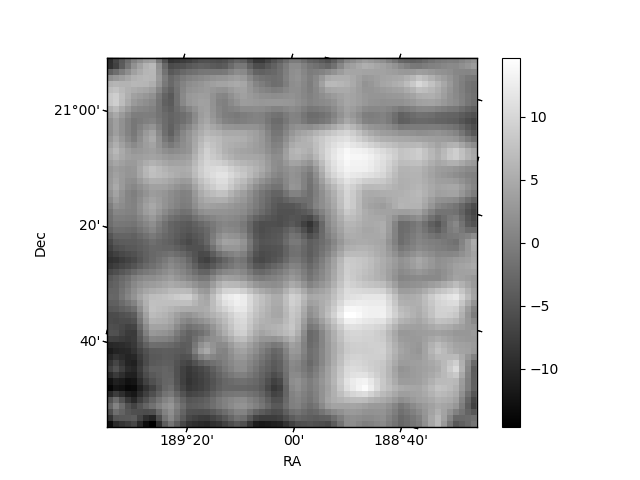

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

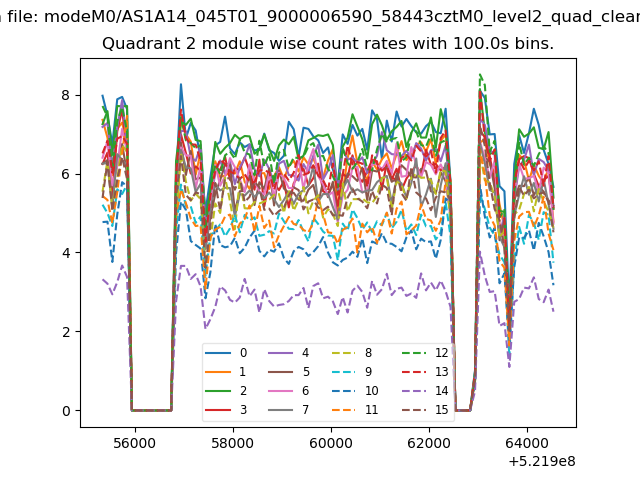

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

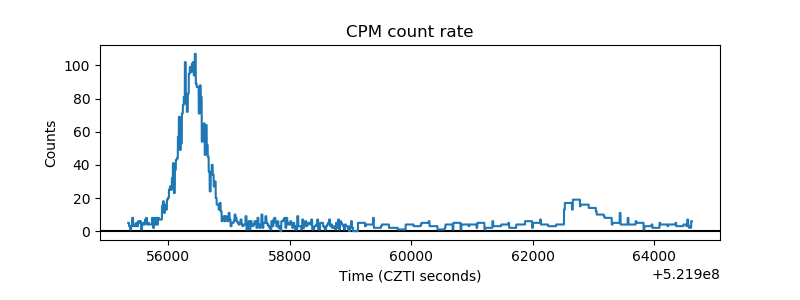

| _CPM_Rate |  |

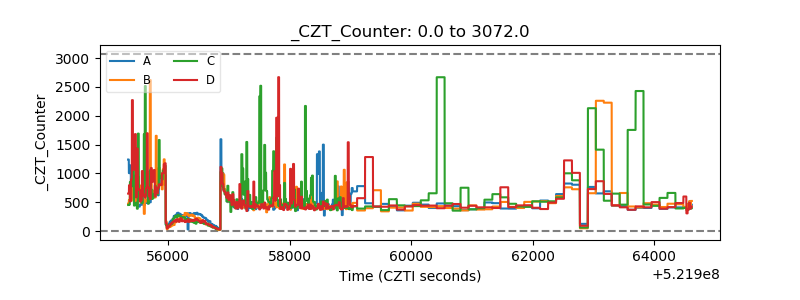

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

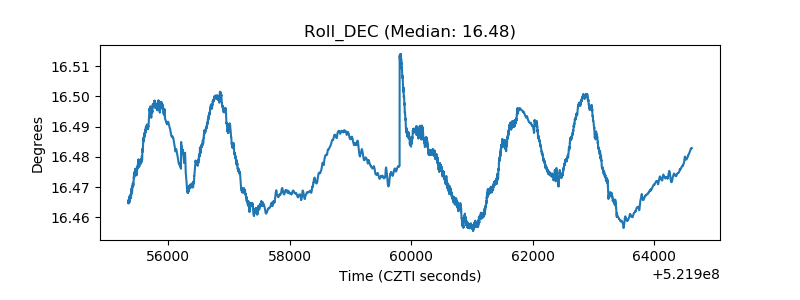

| _Roll_DEC |  |
| _Roll_RA |  |

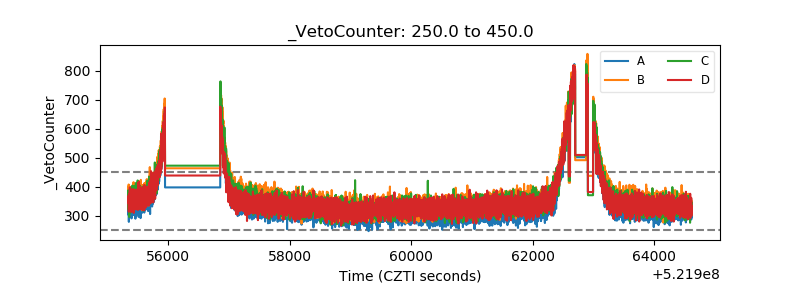

| Veto Counter |  |
