| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58444cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58444cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,378,240 | 114,575,040 |
| Size | 441.0 MB | 109.3 MB |
| Events in quadrant A | 3,862,600 | 743,480 |
| Events in quadrant B | 4,265,985 | 795,328 |
| Events in quadrant C | 4,419,214 | 703,792 |
| Events in quadrant D | 3,949,425 | 674,162 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17189 | 1 |
| B | 0 | 18238 | 1 |
| C | 0 | 18965 | 1 |
| D | 0 | 17421 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7949 | 185 | 2.327337% |
| B | 7949 | 319 | 4.013083% |
| C | 7949 | 331 | 4.164046% |
| D | 7949 | 92 | 1.157378% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8034 | 7949 | 34 | 34 | 0.42% | 0.43% |  |
| B | 8034 | 7949 | 141 | 141 | 1.76% | 1.77% |  |
| C | 8034 | 7949 | 199 | 199 | 2.48% | 2.50% |  |
| D | 8034 | 7949 | 17 | 17 | 0.21% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 248 | 156409 | 705.43 | 895 | 871 | 220.5 |
| A | 4 | 249 | 79506 | 356.64 | 895 | 871 | 220.5 |
| A | 12 | 80 | 50666 | 225.84 | 895 | 871 | 220.5 |
| B | 4 | 201 | 458235 | 2433.02 | 876 | 841 | 188.0 |
| B | 5 | 172 | 134367 | 710.27 | 876 | 841 | 188.0 |
| B | 7 | 252 | 36671 | 190.59 | 876 | 841 | 188.0 |
| C | 5 | 10 | 493844 | 2114.67 | 853 | 842 | 233.1 |
| C | 14 | 245 | 260752 | 1114.85 | 853 | 842 | 233.1 |
| C | 1 | 12 | 186579 | 796.69 | 853 | 842 | 233.1 |
| D | 2 | 249 | 161839 | 667.81 | 864 | 828 | 241.1 |
| D | 11 | 129 | 117614 | 484.38 | 864 | 828 | 241.1 |
| D | 2 | 120 | 76308 | 313.06 | 864 | 828 | 241.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

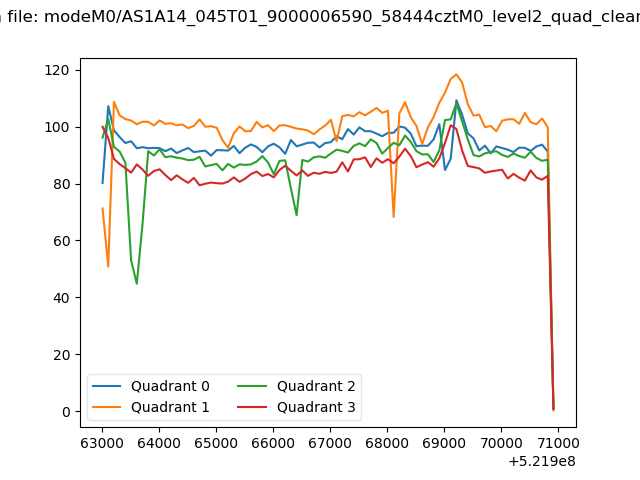

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

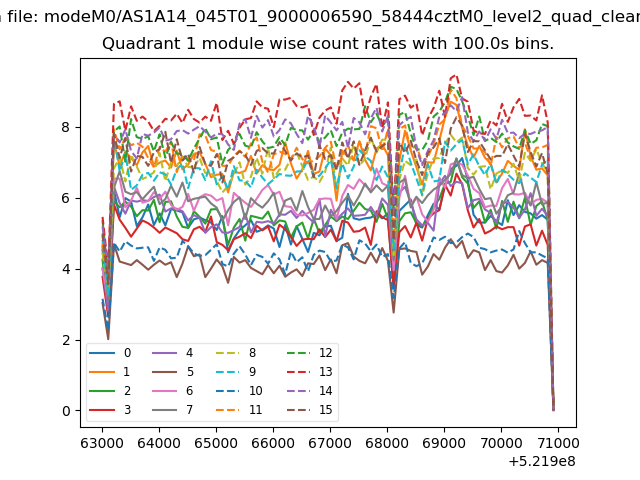

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

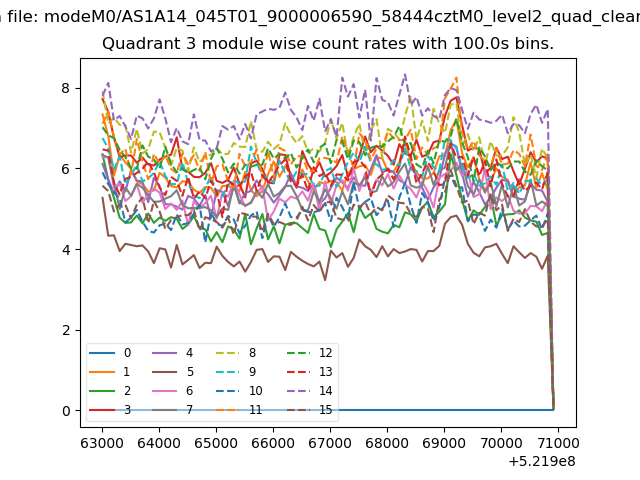

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

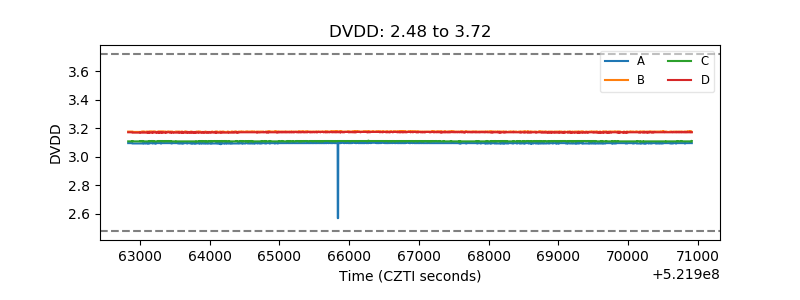

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

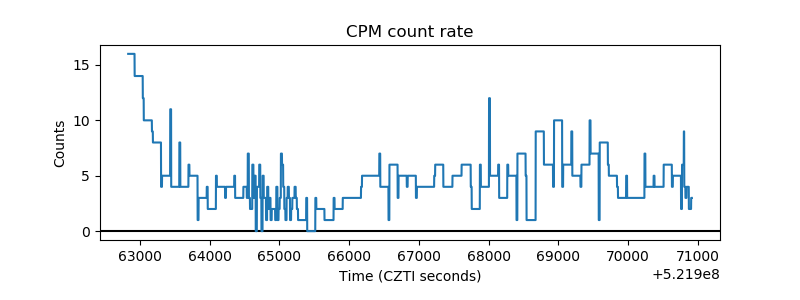

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

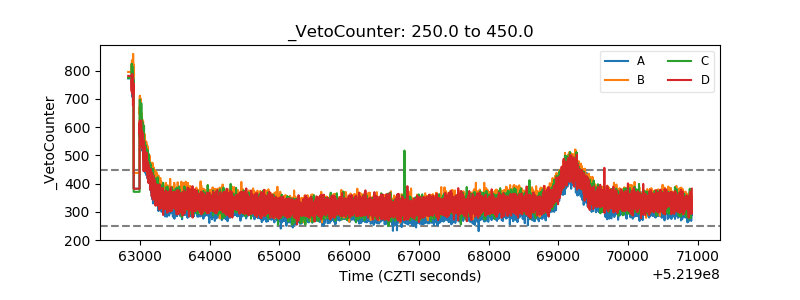

| Veto Counter |  |
