| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58445cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58445cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,038,400 | 111,222,720 |
| Size | 432.1 MB | 106.1 MB |
| Events in quadrant A | 3,573,520 | 727,440 |
| Events in quadrant B | 4,963,249 | 753,854 |
| Events in quadrant C | 3,475,907 | 699,699 |
| Events in quadrant D | 4,155,755 | 649,035 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16178 | 1 |
| B | 0 | 20076 | 0 |
| C | 0 | 16056 | 0 |
| D | 0 | 17766 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7734 | 54 | 0.698216% |
| B | 7734 | 408 | 5.275407% |
| C | 7734 | 16 | 0.206879% |
| D | 7734 | 139 | 1.797259% |

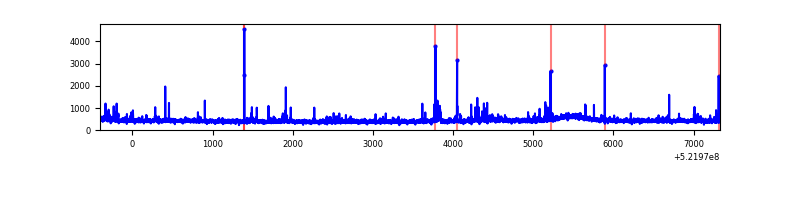

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7734 | 7734 | 35 | 35 | 0.45% | 0.45% |  |
| B | 7734 | 7734 | 294 | 294 | 3.80% | 3.80% |  |
| C | 7734 | 7734 | 7 | 7 | 0.09% | 0.09% |  |
| D | 7734 | 7734 | 121 | 121 | 1.56% | 1.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 82106 | 380.57 | 853 | 831 | 213.6 |
| A | 12 | 80 | 40533 | 185.9 | 853 | 831 | 213.6 |
| A | 4 | 249 | 38896 | 178.24 | 853 | 831 | 213.6 |
| B | 5 | 172 | 931229 | 5203.75 | 826 | 797 | 178.8 |
| B | 8 | 128 | 151707 | 844.02 | 826 | 797 | 178.8 |
| B | 4 | 201 | 134938 | 750.23 | 826 | 797 | 178.8 |
| C | 4 | 5 | 53545 | 233.95 | 826 | 821 | 225.4 |
| C | 14 | 254 | 45527 | 198.37 | 826 | 821 | 225.4 |
| C | 14 | 245 | 42226 | 183.73 | 826 | 821 | 225.4 |
| D | 8 | 240 | 450416 | 1927.6 | 818 | 779 | 233.3 |
| D | 2 | 249 | 199137 | 850.36 | 818 | 779 | 233.3 |
| D | 2 | 120 | 104064 | 442.78 | 818 | 779 | 233.3 |

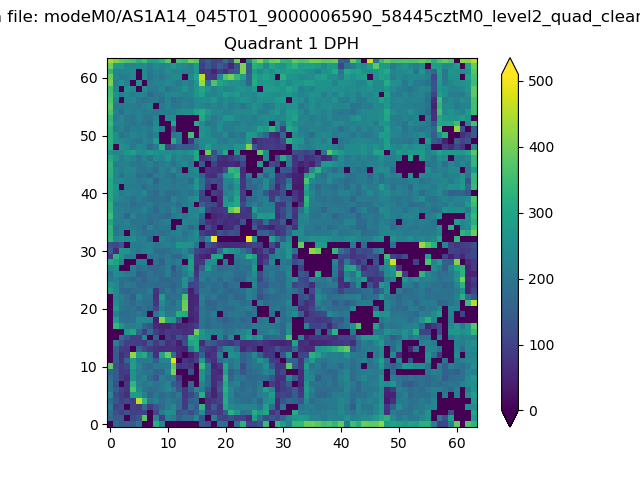

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

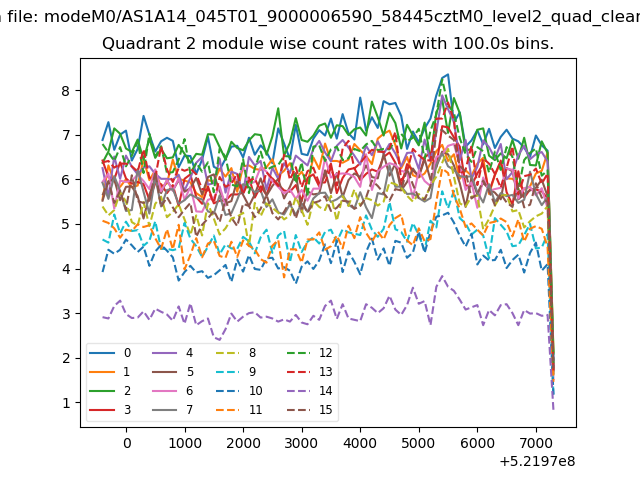

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

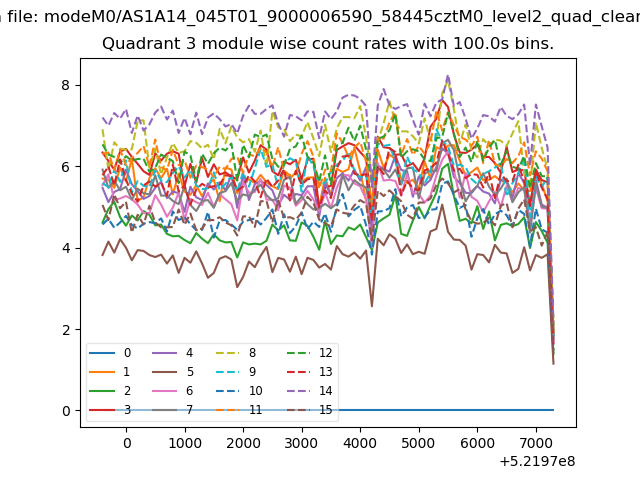

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

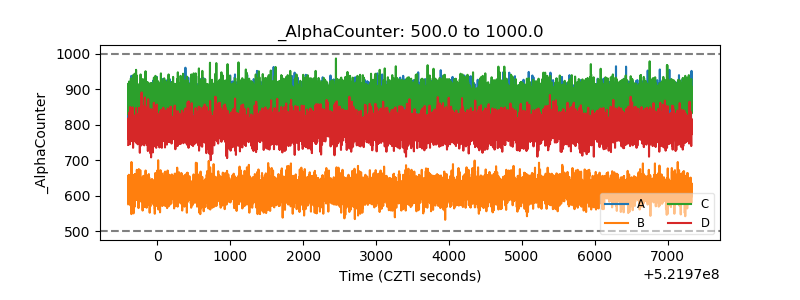

| Alpha Counter |  |

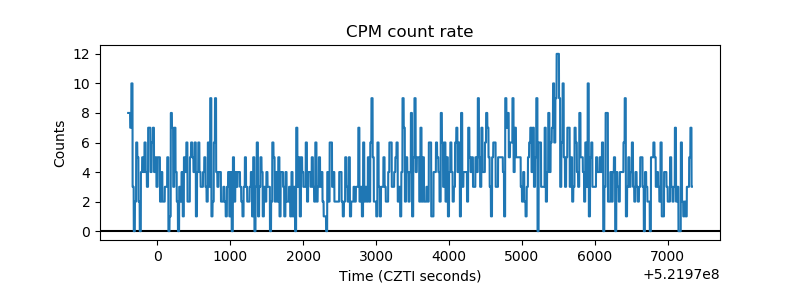

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

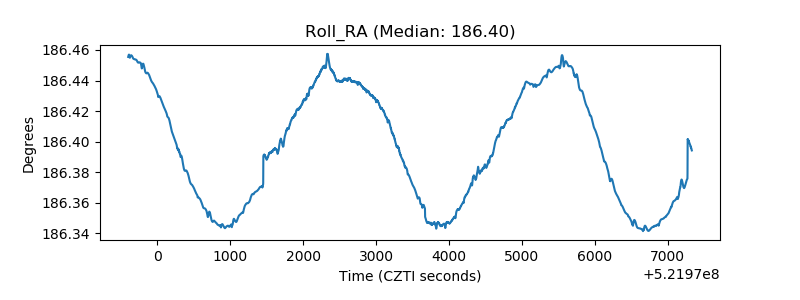

| _Roll_RA |  |

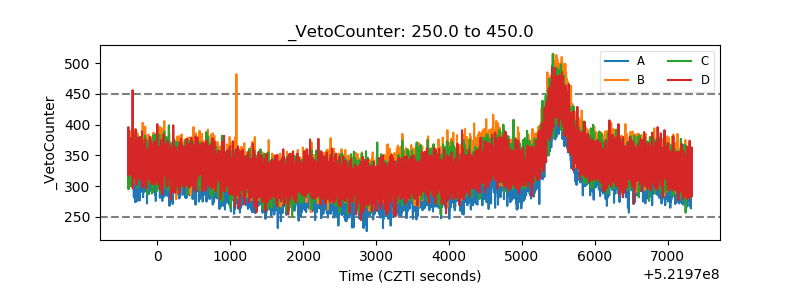

| Veto Counter |  |
