| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58455cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58455cztM0_level2_quad_clean.evt |
| Size (bytes) | 414,734,400 | 101,640,960 |
| Size | 395.5 MB | 96.9 MB |
| Events in quadrant A | 3,578,310 | 671,367 |
| Events in quadrant B | 4,074,222 | 712,354 |
| Events in quadrant C | 3,123,403 | 648,003 |
| Events in quadrant D | 4,057,812 | 581,408 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15280 | 3 |
| B | 0 | 16503 | 3 |
| C | 0 | 14099 | 3 |
| D | 0 | 16784 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6663 | 122 | 1.831007% |
| B | 6663 | 289 | 4.337386% |
| C | 6663 | 62 | 0.930512% |
| D | 6662 | 314 | 4.713299% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

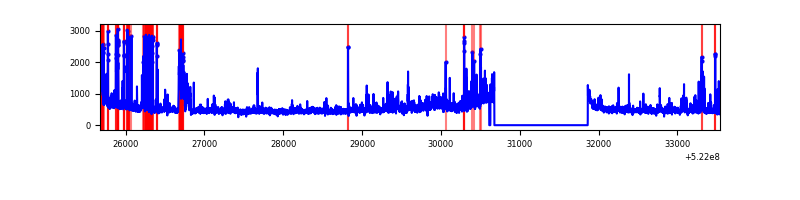

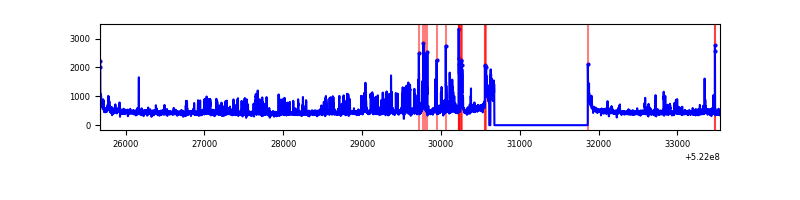

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7863 | 6664 | 21 | 21 | 0.27% | 0.32% |  |
| B | 7863 | 6664 | 149 | 149 | 1.89% | 2.24% |  |
| C | 7863 | 6664 | 20 | 20 | 0.25% | 0.30% |  |
| D | 7862 | 6662 | 258 | 258 | 3.28% | 3.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 286420 | 1523.8 | 758 | 739 | 187.5 |
| A | 12 | 80 | 195400 | 1038.31 | 758 | 739 | 187.5 |
| A | 13 | 248 | 47580 | 249.85 | 758 | 739 | 187.5 |
| B | 4 | 201 | 444695 | 2766.42 | 753 | 727 | 160.5 |
| B | 5 | 172 | 324315 | 2016.31 | 753 | 727 | 160.5 |
| B | 8 | 128 | 74969 | 462.61 | 753 | 727 | 160.5 |
| C | 6 | 223 | 81584 | 396.17 | 740 | 735 | 204.1 |
| C | 14 | 254 | 31598 | 151.23 | 740 | 735 | 204.1 |
| C | 14 | 245 | 28436 | 135.74 | 740 | 735 | 204.1 |
| D | 6 | 239 | 589266 | 2888.86 | 708 | 676 | 203.7 |
| D | 8 | 240 | 497828 | 2440.08 | 708 | 676 | 203.7 |
| D | 5 | 173 | 48118 | 232.85 | 708 | 676 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

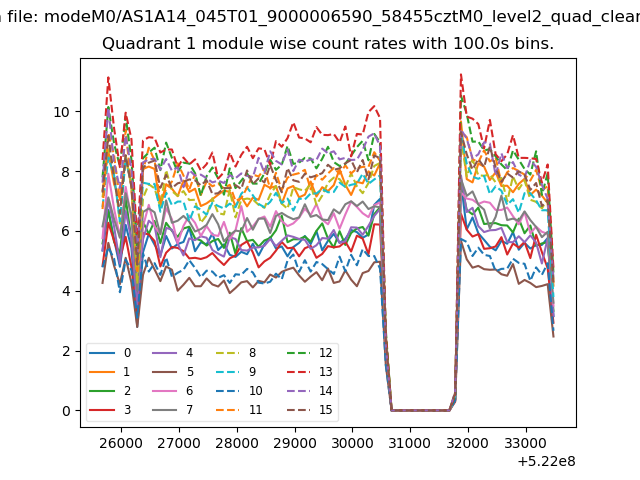

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

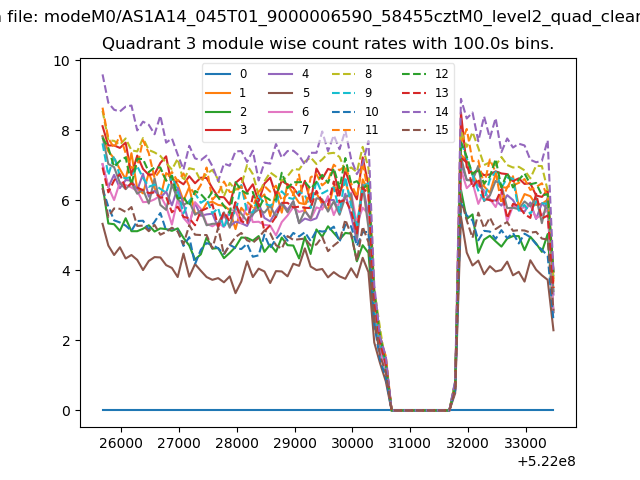

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

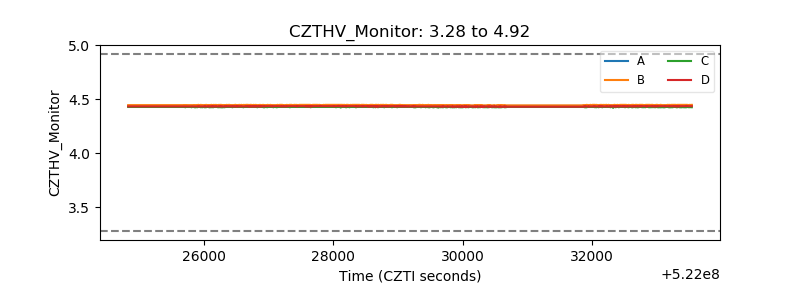

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

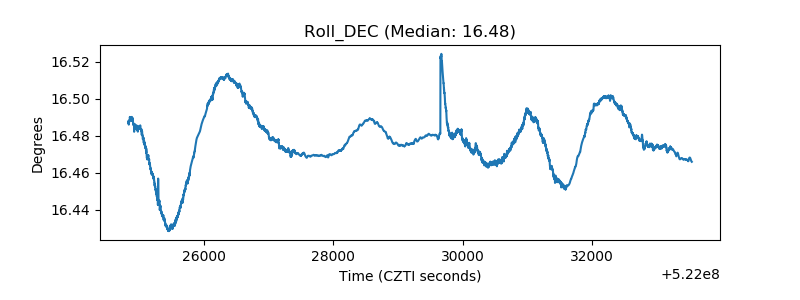

| _Roll_DEC |  |

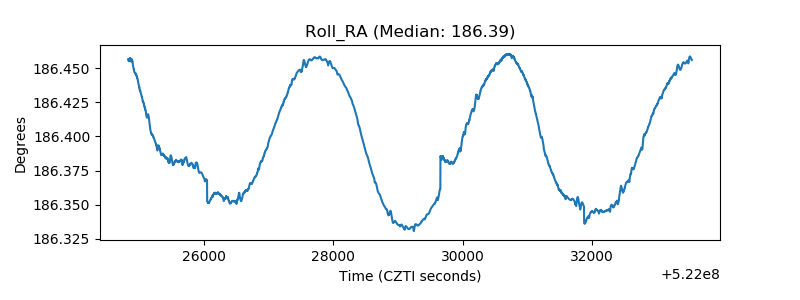

| _Roll_RA |  |
| Veto Counter |  |
