| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_045T01_9000006590_58457cztM0_level2.fits | modeM0/AS1A14_045T01_9000006590_58457cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,427,200 | 92,954,880 |
| Size | 535.4 MB | 88.6 MB |
| Events in quadrant A | 3,275,711 | 654,413 |
| Events in quadrant B | 9,193,151 | 480,889 |
| Events in quadrant C | 3,426,067 | 627,937 |
| Events in quadrant D | 4,353,385 | 572,768 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14677 | 2 |
| B | 0 | 31952 | 4 |
| C | 0 | 15203 | 2 |
| D | 0 | 17829 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6865 | 134 | 1.951930% |
| B | 6864 | 2469 | 35.970280% |
| C | 6864 | 163 | 2.374709% |
| D | 6864 | 351 | 5.113636% |

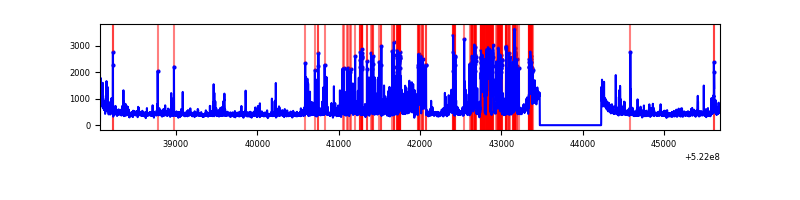

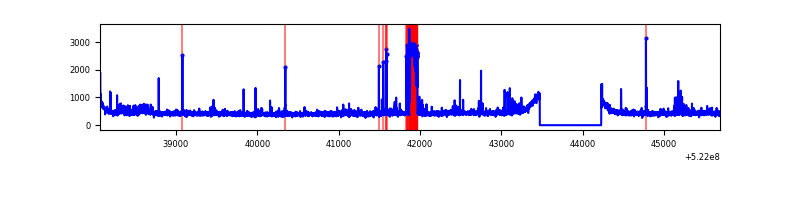

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7620 | 6865 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7618 | 6863 | 2187 | 2187 | 28.71% | 31.87% |  |
| C | 7619 | 6865 | 104 | 104 | 1.37% | 1.51% |  |
| D | 7619 | 6864 | 255 | 255 | 3.35% | 3.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 114108 | 586.9 | 781 | 762 | 193.1 |
| A | 3 | 14 | 42173 | 214.42 | 781 | 762 | 193.1 |
| A | 3 | 245 | 20964 | 104.61 | 781 | 762 | 193.1 |
| B | 5 | 172 | 3676098 | 28146.85 | 601 | 578 | 130.6 |
| B | 2 | 249 | 2716204 | 20796.05 | 601 | 578 | 130.6 |
| B | 8 | 128 | 216197 | 1651.19 | 601 | 578 | 130.6 |
| C | 14 | 254 | 308623 | 1482.92 | 752 | 746 | 207.6 |
| C | 13 | 3 | 53720 | 255.15 | 752 | 746 | 207.6 |
| C | 14 | 245 | 23290 | 108.59 | 752 | 746 | 207.6 |
| D | 8 | 240 | 920463 | 4395.27 | 738 | 704 | 209.3 |
| D | 5 | 32 | 209938 | 999.87 | 738 | 704 | 209.3 |
| D | 12 | 248 | 74262 | 351.51 | 738 | 704 | 209.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

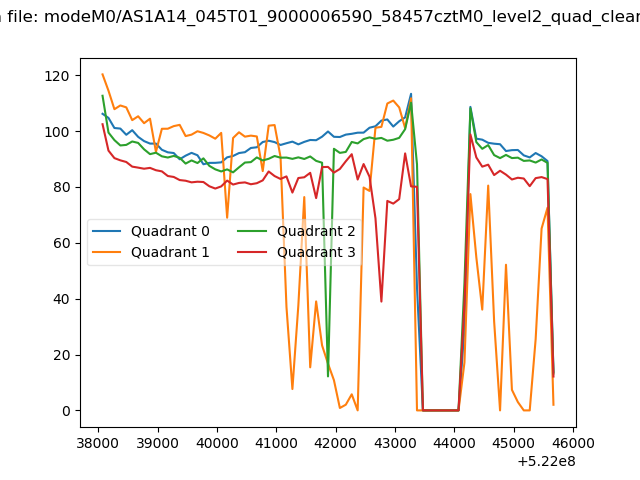

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

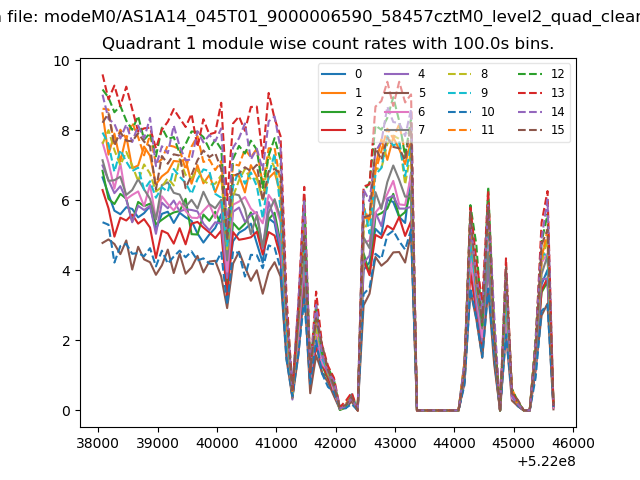

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

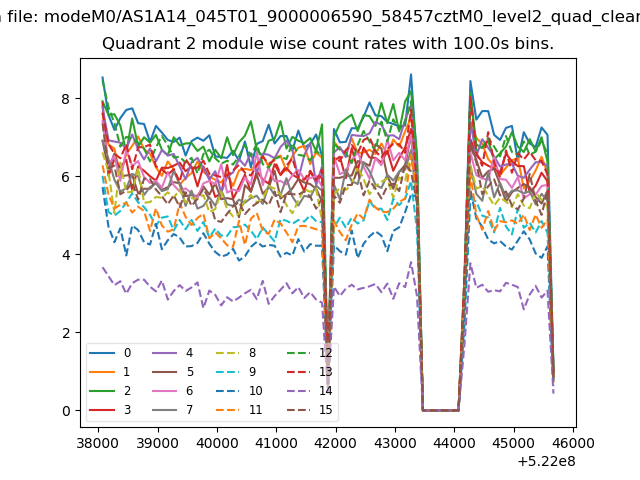

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

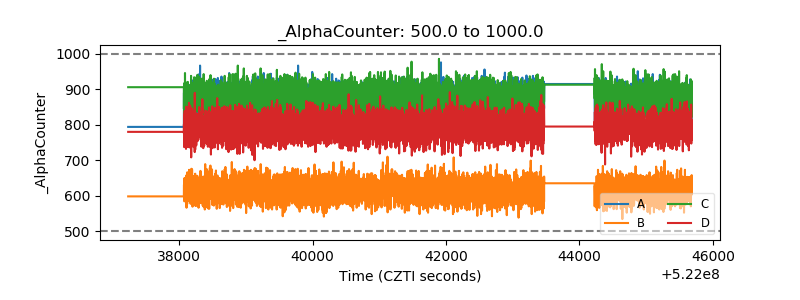

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

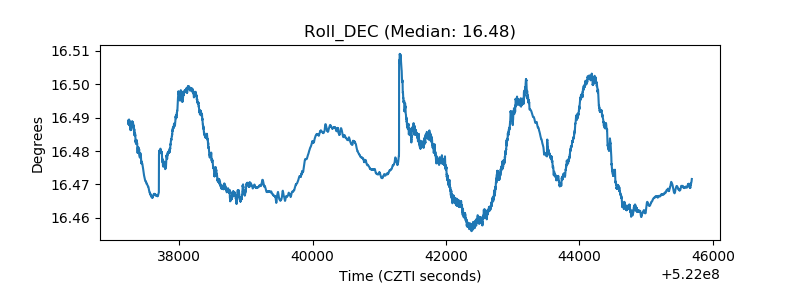

| _Roll_DEC |  |
| _Roll_RA |  |

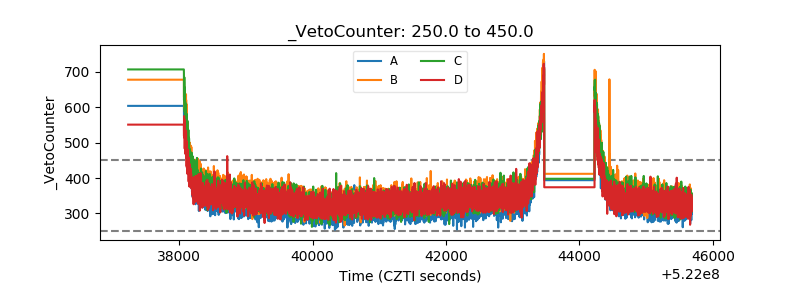

| Veto Counter |  |
