| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58459cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58459cztM0_level2_quad_clean.evt |
| Size (bytes) | 686,088,000 | 105,197,760 |
| Size | 654.3 MB | 100.3 MB |
| Events in quadrant A | 3,568,863 | 743,045 |
| Events in quadrant B | 10,780,721 | 571,306 |
| Events in quadrant C | 4,043,719 | 703,594 |
| Events in quadrant D | 6,393,384 | 620,235 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16350 | 0 |
| B | 0 | 37456 | 0 |
| C | 0 | 17722 | 0 |
| D | 0 | 24414 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7862 | 31 | 0.394302% |
| B | 7861 | 2528 | 32.158758% |
| C | 7861 | 162 | 2.060807% |
| D | 7862 | 736 | 9.361486% |

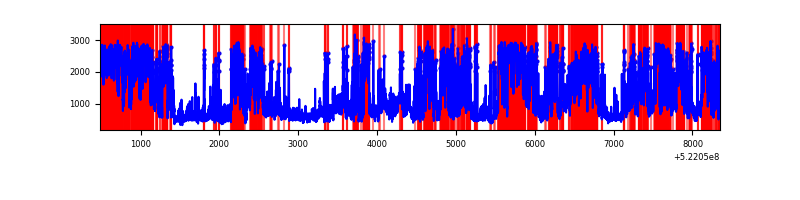

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7862 | 7862 | 10 | 10 | 0.13% | 0.13% |  |
| B | 7861 | 7861 | 2098 | 2098 | 26.69% | 26.69% |  |
| C | 7861 | 7861 | 108 | 108 | 1.37% | 1.37% |  |
| D | 7862 | 7862 | 657 | 657 | 8.36% | 8.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 73026 | 333.2 | 868 | 847 | 216.6 |
| A | 12 | 80 | 49541 | 224.79 | 868 | 847 | 216.6 |
| A | 9 | 255 | 18687 | 82.36 | 868 | 847 | 216.6 |
| B | 2 | 249 | 6439212 | 41459.06 | 724 | 697 | 155.3 |
| B | 5 | 172 | 569203 | 3660.74 | 724 | 697 | 155.3 |
| B | 8 | 128 | 553467 | 3559.41 | 724 | 697 | 155.3 |
| C | 6 | 13 | 390934 | 1706.02 | 837 | 830 | 228.7 |
| C | 1 | 12 | 129223 | 561.49 | 837 | 830 | 228.7 |
| C | 14 | 245 | 61074 | 263.46 | 837 | 830 | 228.7 |
| D | 8 | 240 | 2788496 | 12256.09 | 803 | 769 | 227.5 |
| D | 2 | 31 | 107605 | 469.7 | 803 | 769 | 227.5 |
| D | 11 | 129 | 101395 | 442.4 | 803 | 769 | 227.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

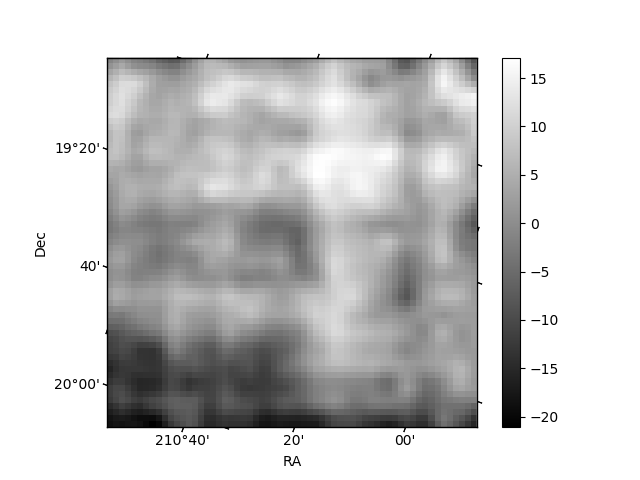

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

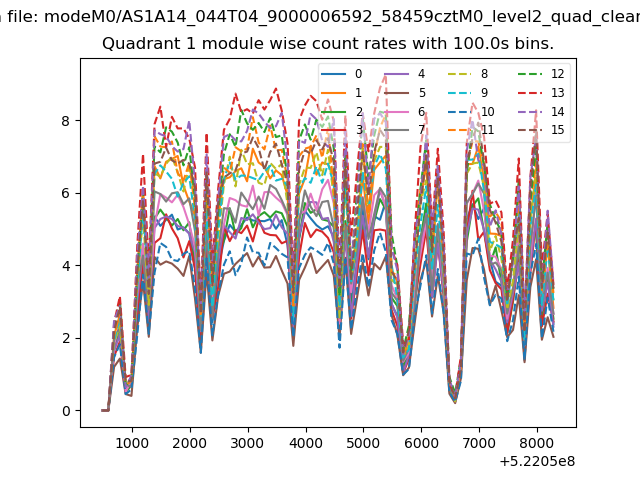

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

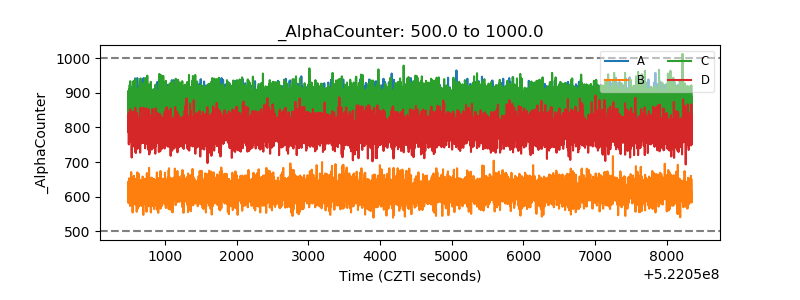

| Alpha Counter |  |

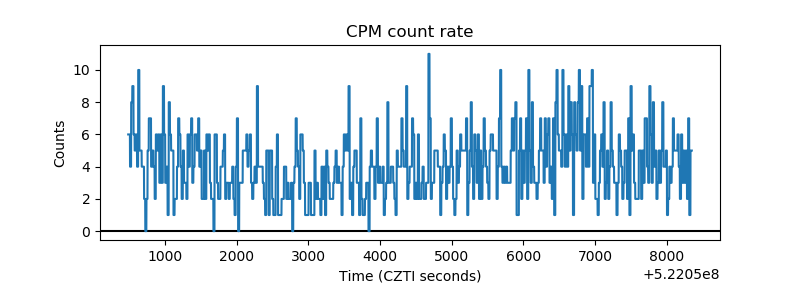

| _CPM_Rate |  |

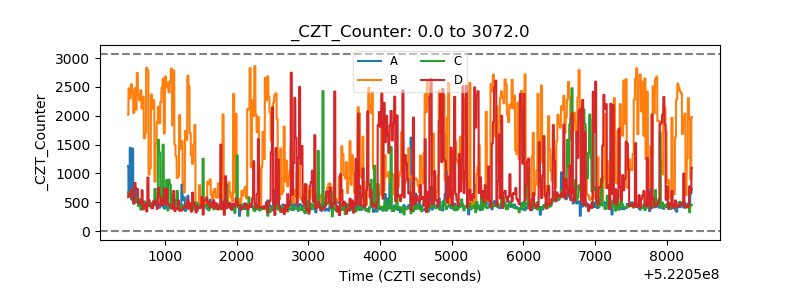

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

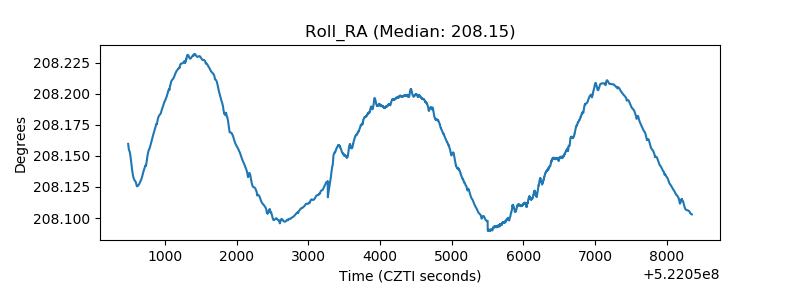

| _Roll_RA |  |

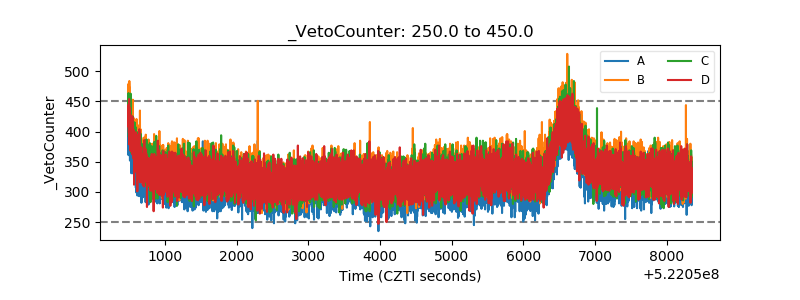

| Veto Counter |  |
