| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58460cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58460cztM0_level2_quad_clean.evt |
| Size (bytes) | 702,489,600 | 114,880,320 |
| Size | 669.9 MB | 109.6 MB |
| Events in quadrant A | 4,154,720 | 794,197 |
| Events in quadrant B | 9,162,536 | 698,170 |
| Events in quadrant C | 4,790,728 | 744,620 |
| Events in quadrant D | 7,246,738 | 659,434 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18193 | 0 |
| B | 0 | 32968 | 0 |
| C | 0 | 20295 | 0 |
| D | 0 | 27285 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8371 | 90 | 1.075140% |
| B | 8372 | 1834 | 21.906355% |
| C | 8372 | 275 | 3.284759% |
| D | 8372 | 935 | 11.168180% |

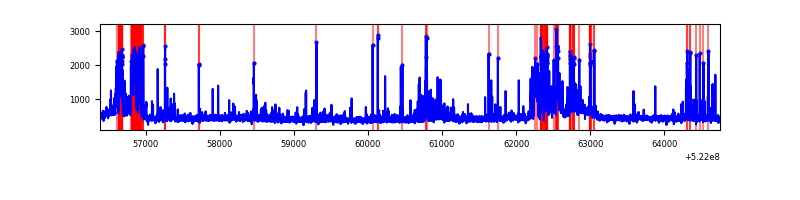

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8371 | 8371 | 33 | 33 | 0.39% | 0.39% |  |
| B | 8372 | 8372 | 1405 | 1405 | 16.78% | 16.78% |  |
| C | 8372 | 8372 | 168 | 168 | 2.01% | 2.01% |  |
| D | 8372 | 8372 | 695 | 695 | 8.30% | 8.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 135342 | 570.94 | 943 | 917 | 235.4 |
| A | 13 | 248 | 128954 | 543.81 | 943 | 917 | 235.4 |
| A | 12 | 80 | 118382 | 498.91 | 943 | 917 | 235.4 |
| B | 2 | 249 | 4264443 | 23165.02 | 847 | 811 | 184.1 |
| B | 5 | 172 | 1133270 | 6152.84 | 847 | 811 | 184.1 |
| B | 8 | 128 | 120212 | 648.73 | 847 | 811 | 184.1 |
| C | 6 | 13 | 871741 | 3492.81 | 908 | 898 | 249.3 |
| C | 14 | 254 | 118360 | 471.12 | 908 | 898 | 249.3 |
| C | 1 | 12 | 42082 | 165.18 | 908 | 898 | 249.3 |
| D | 8 | 240 | 3518453 | 14146.97 | 874 | 835 | 248.6 |
| D | 5 | 173 | 79179 | 315.08 | 874 | 835 | 248.6 |
| D | 2 | 249 | 64968 | 257.93 | 874 | 835 | 248.6 |

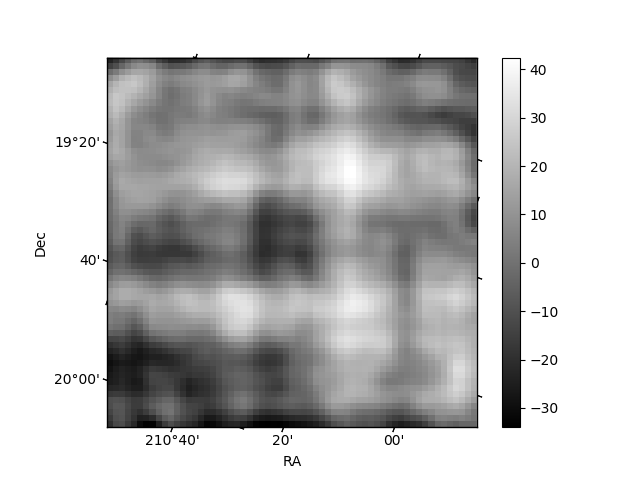

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

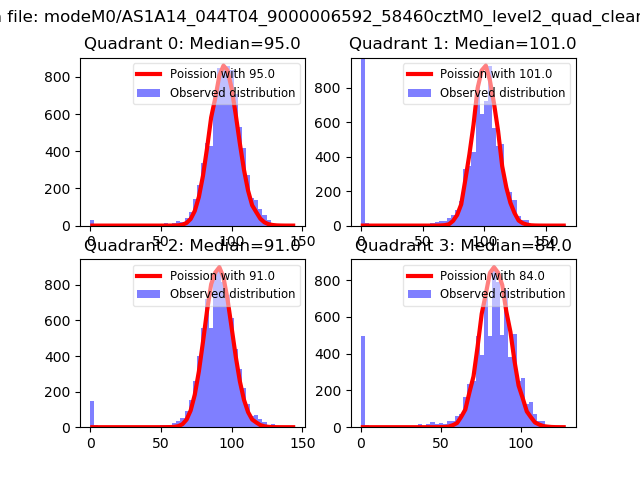

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

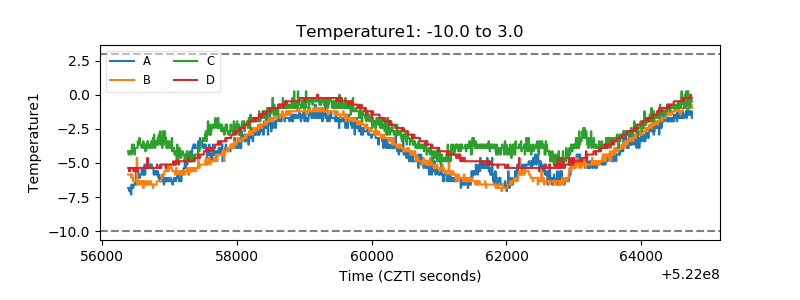

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

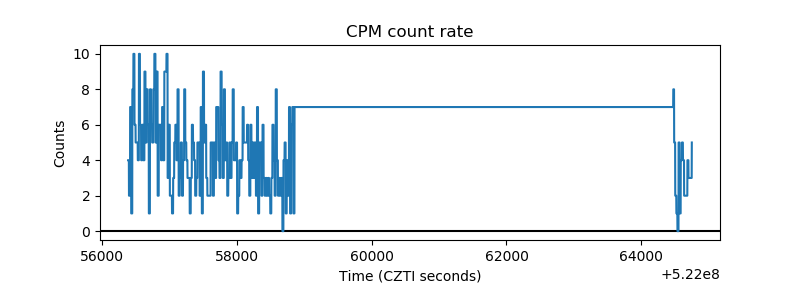

| _CPM_Rate |  |
| CZT Counter |  |

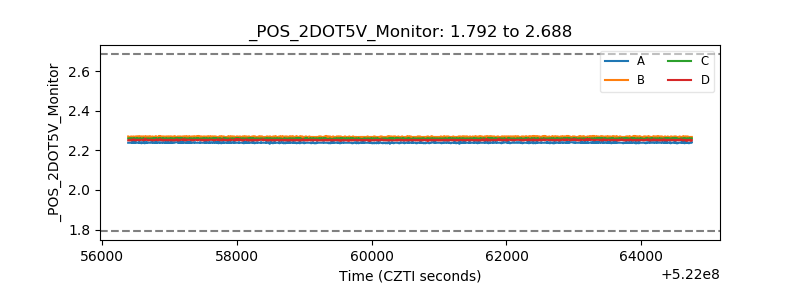

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

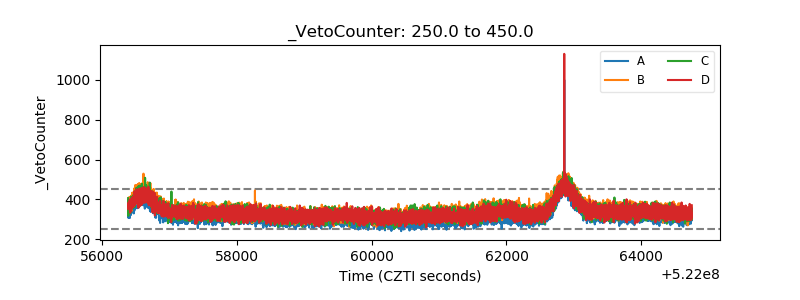

| Veto Counter |  |
