| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58463cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58463cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,706,232,960 | 241,441,920 |
| Size | 1.6 GB | 230.3 MB |
| Events in quadrant A | 10,314,687 | 1,722,237 |
| Events in quadrant B | 25,880,915 | 1,170,135 |
| Events in quadrant C | 13,286,743 | 1,582,739 |
| Events in quadrant D | 12,215,957 | 1,533,432 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44193 | 3 |
| B | 0 | 89758 | 3 |
| C | 0 | 52952 | 7 |
| D | 0 | 49404 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 384 | 0 |
| B | 0 | 384 | 0 |
| C | 0 | 384 | 0 |
| D | 0 | 384 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18879 | 794 | 4.205731% |
| B | 18880 | 7342 | 38.887712% |
| C | 18879 | 1540 | 8.157212% |
| D | 18879 | 936 | 4.957890% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20014 | 18880 | 342 | 342 | 1.71% | 1.81% |  |
| B | 20015 | 18880 | 6679 | 6679 | 33.37% | 35.38% |  |
| C | 20013 | 18880 | 1255 | 1255 | 6.27% | 6.65% |  |
| D | 20014 | 18880 | 549 | 549 | 2.74% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 1239148 | 2366.11 | 2091 | 2030 | 522.8 |
| A | 10 | 17 | 556001 | 1059.52 | 2091 | 2030 | 522.8 |
| A | 13 | 248 | 101419 | 190.09 | 2091 | 2030 | 522.8 |
| B | 2 | 249 | 17611108 | 56927.45 | 1454 | 1400 | 309.3 |
| B | 5 | 172 | 1788622 | 5777.61 | 1454 | 1400 | 309.3 |
| B | 8 | 128 | 123393 | 394.37 | 1454 | 1400 | 309.3 |
| C | 5 | 10 | 3112281 | 5680.15 | 1992 | 1971 | 547.6 |
| C | 6 | 223 | 756606 | 1378.14 | 1992 | 1971 | 547.6 |
| C | 6 | 13 | 569837 | 1037.05 | 1992 | 1971 | 547.6 |
| D | 8 | 240 | 3193365 | 5614.12 | 2016 | 1927 | 568.5 |
| D | 3 | 12 | 238941 | 416.93 | 2016 | 1927 | 568.5 |
| D | 5 | 173 | 185167 | 322.34 | 2016 | 1927 | 568.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

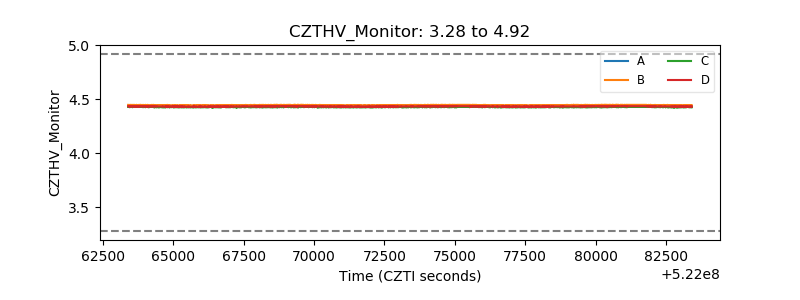

| CZT HV Monitor |  |

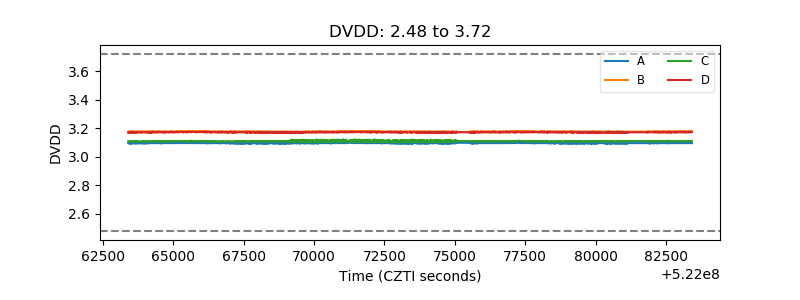

| D_VDD |  |

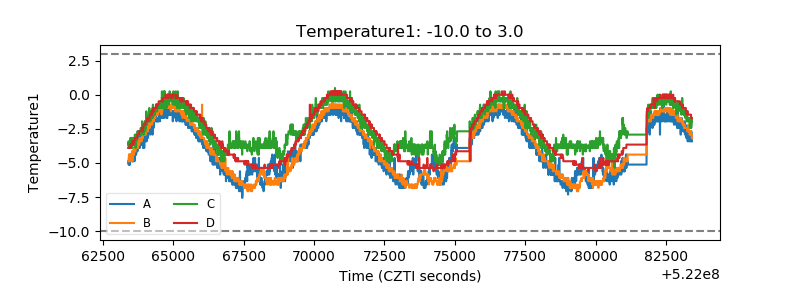

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

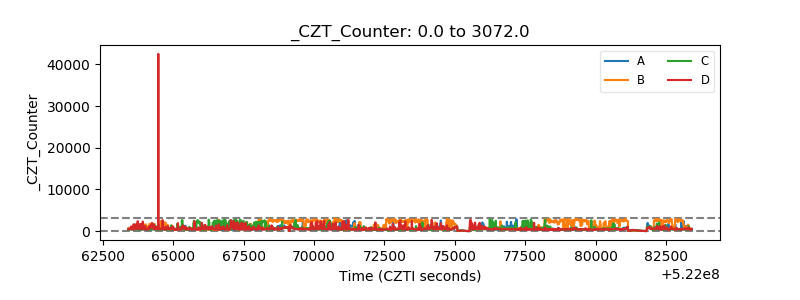

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

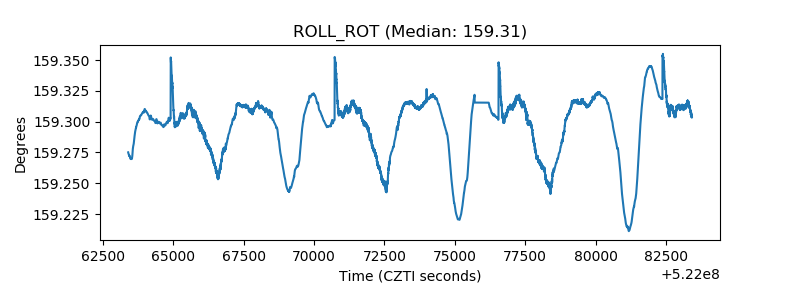

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
