| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58467cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58467cztM0_level2_quad_clean.evt |
| Size (bytes) | 677,263,680 | 81,532,800 |
| Size | 645.9 MB | 77.8 MB |
| Events in quadrant A | 3,466,450 | 628,609 |
| Events in quadrant B | 11,662,702 | 283,683 |
| Events in quadrant C | 5,361,736 | 552,997 |
| Events in quadrant D | 4,084,569 | 558,754 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14789 | 2 |
| B | 0 | 38989 | 2 |
| C | 0 | 20494 | 2 |
| D | 0 | 16552 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6370 | 118 | 1.852433% |
| B | 6369 | 3854 | 60.511854% |
| C | 6369 | 764 | 11.995604% |
| D | 6369 | 217 | 3.407128% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7469 | 6369 | 51 | 51 | 0.68% | 0.80% |  |
| B | 7468 | 6368 | 3566 | 3566 | 47.75% | 56.00% |  |
| C | 7468 | 6369 | 686 | 686 | 9.19% | 10.77% |  |
| D | 7468 | 6369 | 203 | 203 | 2.72% | 3.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 469817 | 2644.23 | 704 | 686 | 177.4 |
| A | 12 | 114 | 120199 | 673.63 | 704 | 686 | 177.4 |
| A | 12 | 80 | 47206 | 262.21 | 704 | 686 | 177.4 |
| B | 2 | 249 | 9213743 | 101726.58 | 420 | 406 | 90.6 |
| B | 5 | 172 | 340304 | 3752.89 | 420 | 406 | 90.6 |
| B | 8 | 128 | 212554 | 2342.37 | 420 | 406 | 90.6 |
| C | 5 | 10 | 2153315 | 12003.89 | 652 | 647 | 179.3 |
| C | 9 | 38 | 165675 | 920.24 | 652 | 647 | 179.3 |
| C | 6 | 223 | 121678 | 674.9 | 652 | 647 | 179.3 |
| D | 2 | 153 | 459211 | 2380.69 | 677 | 647 | 192.6 |
| D | 8 | 240 | 373790 | 1937.22 | 677 | 647 | 192.6 |
| D | 2 | 249 | 106855 | 551.39 | 677 | 647 | 192.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

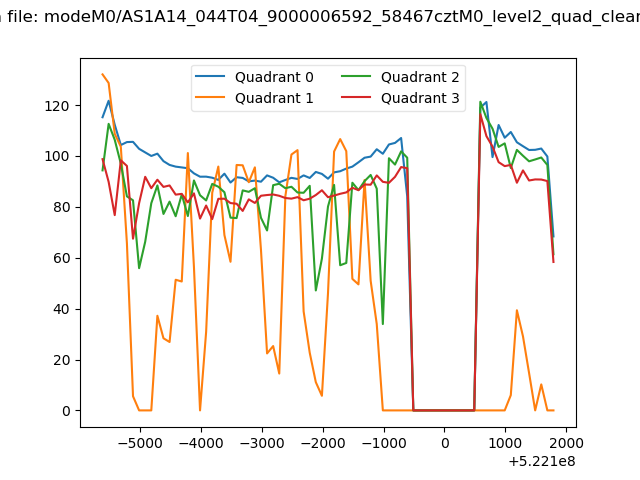

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

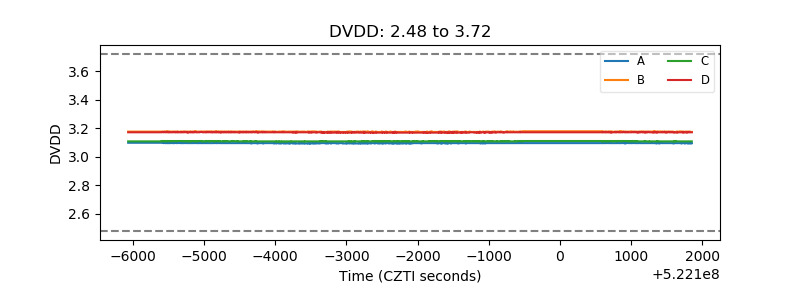

| D_VDD |  |

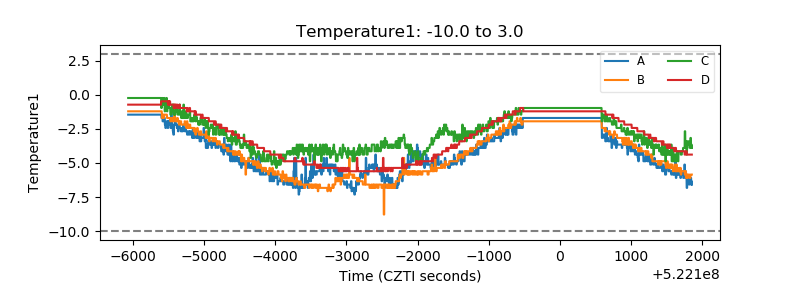

| Temperature 1 |  |

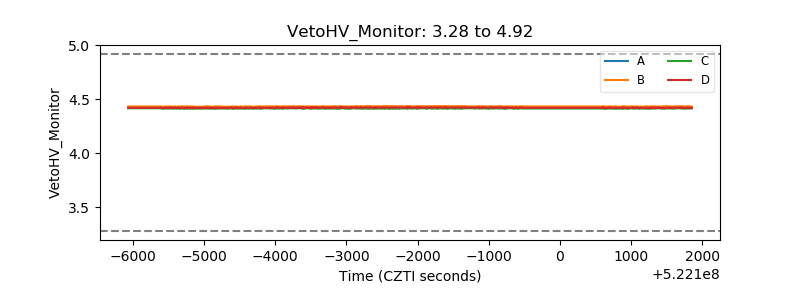

| Veto HV Monitor |  |

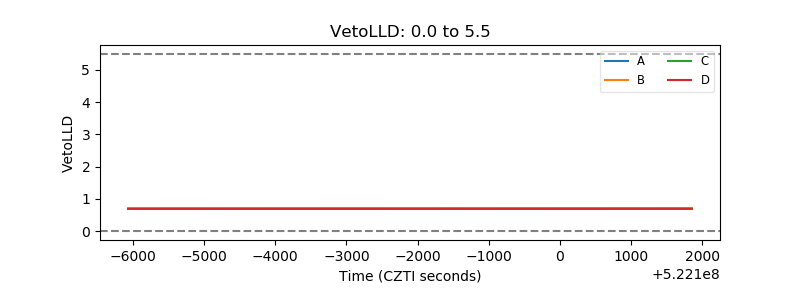

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

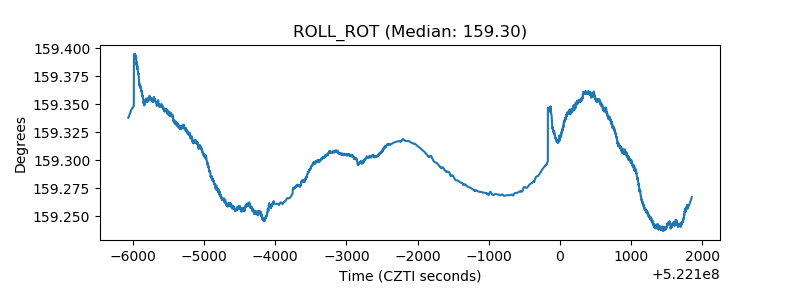

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
