| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58468cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58468cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,836,480 | 83,862,720 |
| Size | 574.0 MB | 80.0 MB |
| Events in quadrant A | 3,707,874 | 628,507 |
| Events in quadrant B | 11,178,129 | 305,315 |
| Events in quadrant C | 3,139,808 | 611,612 |
| Events in quadrant D | 3,766,792 | 557,763 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15405 | 2 |
| B | 0 | 37488 | 2 |
| C | 0 | 13743 | 2 |
| D | 0 | 15588 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6244 | 140 | 2.242152% |
| B | 6244 | 3539 | 56.678411% |
| C | 6244 | 58 | 0.928892% |
| D | 6243 | 168 | 2.691014% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

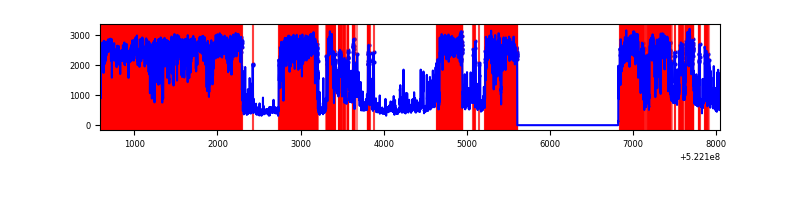

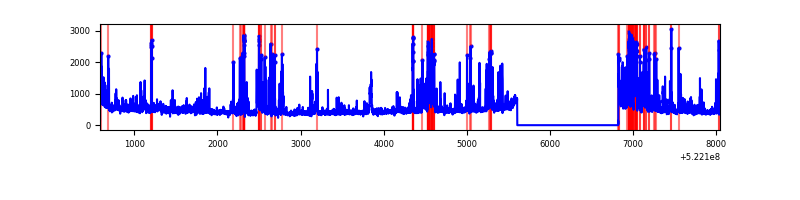

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7459 | 6244 | 84 | 84 | 1.13% | 1.35% |  |
| B | 7459 | 6244 | 3327 | 3327 | 44.60% | 53.28% |  |
| C | 7460 | 6245 | 37 | 37 | 0.50% | 0.59% |  |
| D | 7459 | 6244 | 146 | 146 | 1.96% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 850325 | 4848.69 | 700 | 682 | 175.2 |
| A | 13 | 248 | 31984 | 178.63 | 700 | 682 | 175.2 |
| A | 12 | 80 | 26803 | 149.07 | 700 | 682 | 175.2 |
| B | 2 | 249 | 8955465 | 101341.78 | 410 | 395 | 88.4 |
| B | 5 | 172 | 432051 | 4884.92 | 410 | 395 | 88.4 |
| B | 6 | 255 | 71527 | 804.98 | 410 | 395 | 88.4 |
| C | 6 | 223 | 165267 | 872.16 | 683 | 678 | 188.7 |
| C | 5 | 10 | 87211 | 458.54 | 683 | 678 | 188.7 |
| C | 12 | 252 | 55889 | 292.56 | 683 | 678 | 188.7 |
| D | 8 | 240 | 809475 | 4234.98 | 667 | 634 | 191.0 |
| D | 0 | 97 | 103444 | 538.3 | 667 | 634 | 191.0 |
| D | 3 | 12 | 46895 | 242.21 | 667 | 634 | 191.0 |

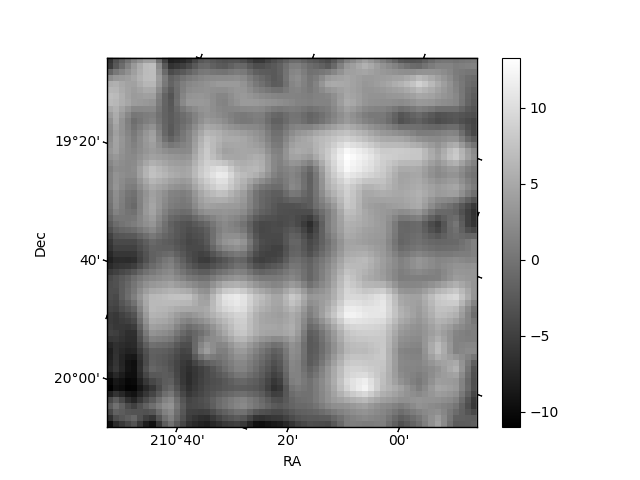

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

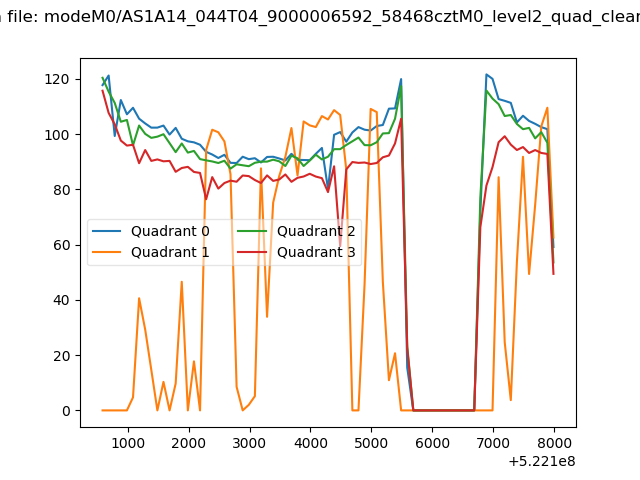

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

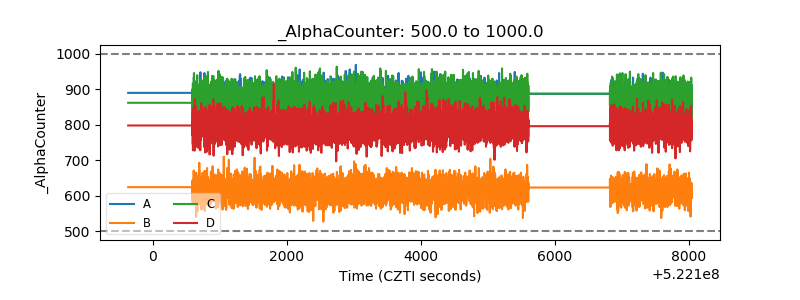

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

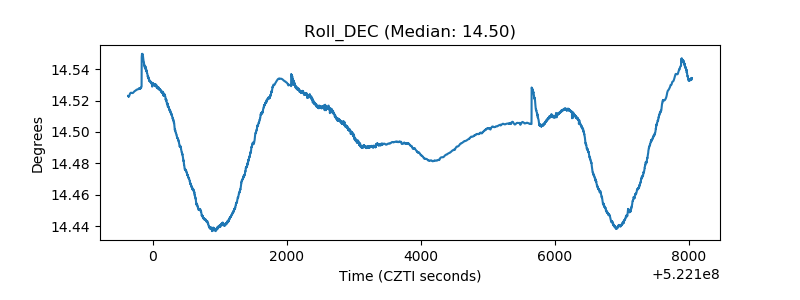

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
