| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58469cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58469cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,224,320 | 92,341,440 |
| Size | 468.5 MB | 88.1 MB |
| Events in quadrant A | 3,552,501 | 641,746 |
| Events in quadrant B | 6,986,627 | 538,219 |
| Events in quadrant C | 3,237,407 | 619,039 |
| Events in quadrant D | 3,918,836 | 558,800 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14861 | 2 |
| B | 0 | 25001 | 2 |
| C | 0 | 13933 | 2 |
| D | 0 | 16160 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6278 | 120 | 1.911437% |
| B | 6279 | 1546 | 24.621755% |
| C | 6279 | 48 | 0.764453% |
| D | 6278 | 264 | 4.205161% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8734 | 6280 | 59 | 59 | 0.68% | 0.94% |  |
| B | 8735 | 6281 | 1331 | 1331 | 15.24% | 21.19% |  |
| C | 8735 | 6281 | 31 | 31 | 0.35% | 0.49% |  |
| D | 8734 | 6280 | 246 | 246 | 2.82% | 3.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 548962 | 3064.76 | 718 | 700 | 178.9 |
| A | 12 | 80 | 51961 | 286.55 | 718 | 700 | 178.9 |
| A | 3 | 14 | 36792 | 201.75 | 718 | 700 | 178.9 |
| B | 2 | 249 | 3885489 | 29693.54 | 610 | 588 | 130.8 |
| B | 5 | 172 | 407404 | 3109.42 | 610 | 588 | 130.8 |
| B | 6 | 255 | 101766 | 773.34 | 610 | 588 | 130.8 |
| C | 6 | 223 | 204762 | 1067.4 | 696 | 693 | 191.2 |
| C | 12 | 252 | 78604 | 407.52 | 696 | 693 | 191.2 |
| C | 6 | 9 | 45978 | 236.87 | 696 | 693 | 191.2 |
| D | 8 | 240 | 1062852 | 5521.64 | 675 | 645 | 192.4 |
| D | 0 | 97 | 53884 | 276.75 | 675 | 645 | 192.4 |
| D | 5 | 173 | 39375 | 201.33 | 675 | 645 | 192.4 |

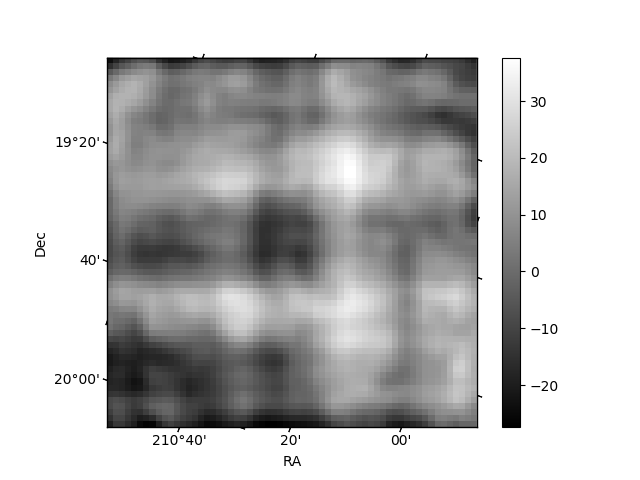

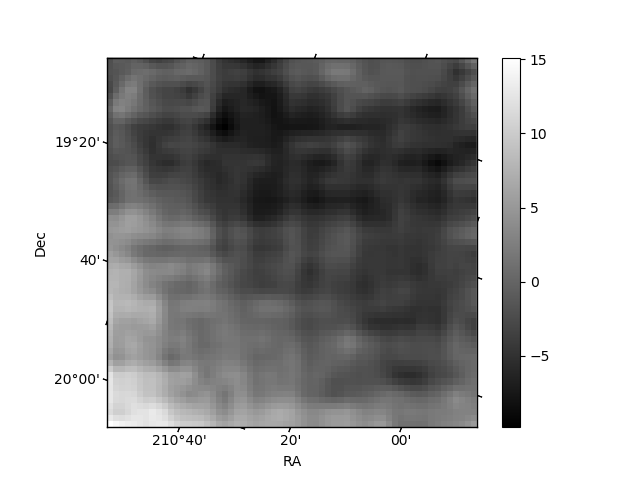

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

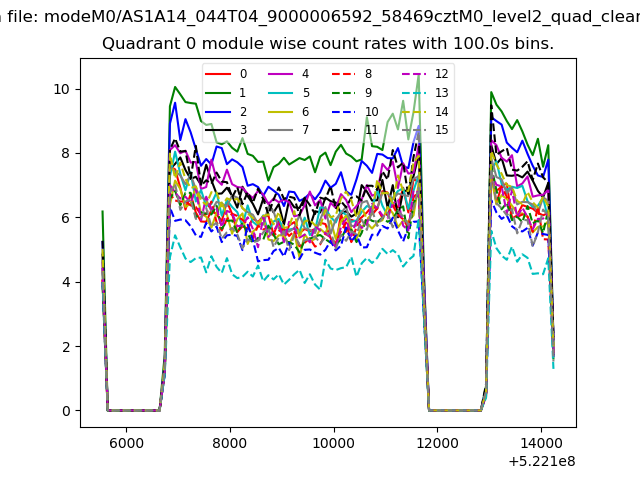

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

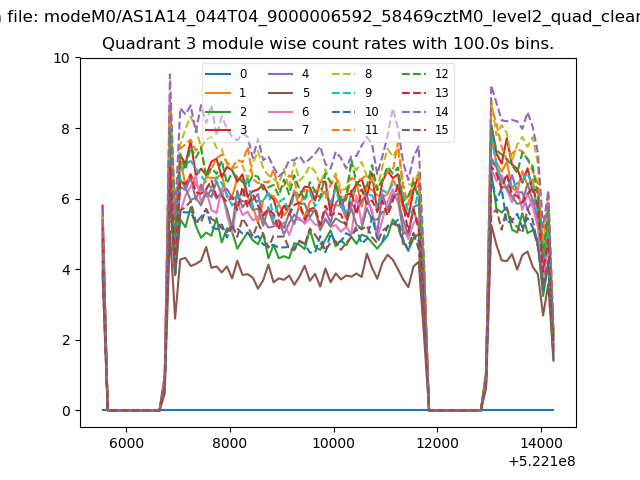

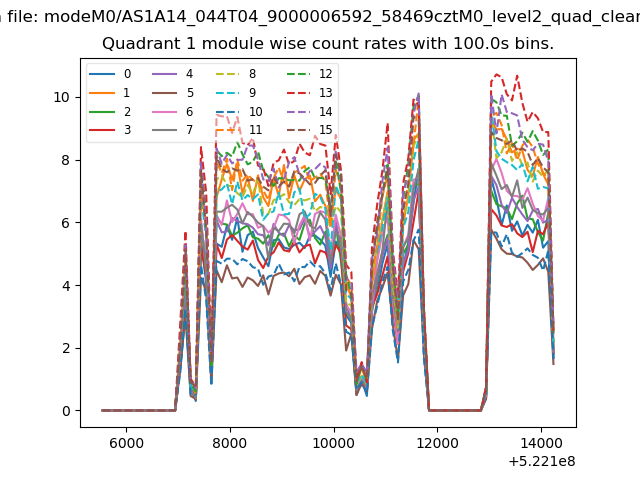

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

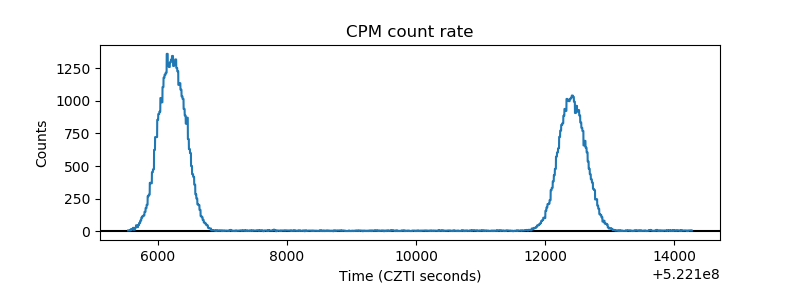

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

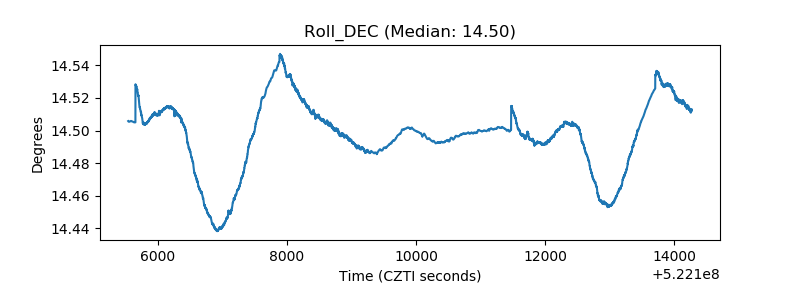

| _Roll_DEC |  |

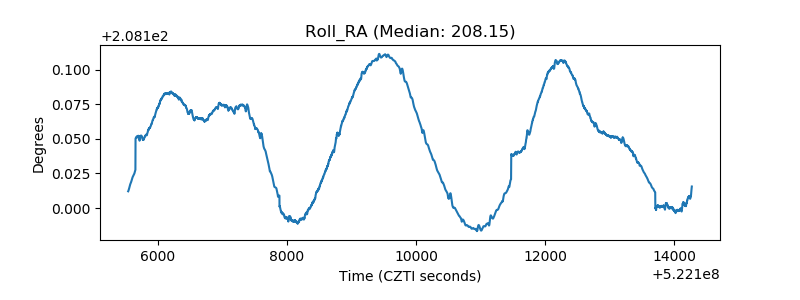

| _Roll_RA |  |
| Veto Counter |  |
