| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58471cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58471cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,301,120 | 101,217,600 |
| Size | 448.5 MB | 96.5 MB |
| Events in quadrant A | 3,601,183 | 670,578 |
| Events in quadrant B | 5,395,197 | 677,037 |
| Events in quadrant C | 4,420,856 | 619,832 |
| Events in quadrant D | 3,450,451 | 611,786 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15596 | 2 |
| B | 0 | 20726 | 2 |
| C | 0 | 18087 | 2 |
| D | 0 | 15376 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6963 | 146 | 2.096797% |
| B | 6963 | 690 | 9.909522% |
| C | 6963 | 413 | 5.931351% |
| D | 6963 | 56 | 0.804251% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

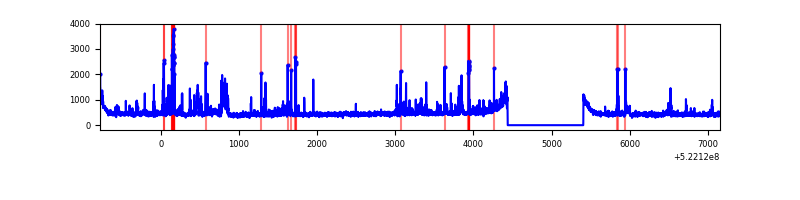

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7933 | 6964 | 44 | 44 | 0.55% | 0.63% |  |
| B | 7933 | 6964 | 466 | 466 | 5.87% | 6.69% |  |
| C | 7933 | 6964 | 336 | 336 | 4.24% | 4.82% |  |
| D | 7933 | 6964 | 33 | 33 | 0.42% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 326129 | 1674.06 | 787 | 767 | 194.4 |
| A | 12 | 80 | 53293 | 270.26 | 787 | 767 | 194.4 |
| A | 4 | 249 | 42721 | 215.86 | 787 | 767 | 194.4 |
| B | 2 | 249 | 1346409 | 8287.17 | 746 | 717 | 162.4 |
| B | 5 | 172 | 889754 | 5474.95 | 746 | 717 | 162.4 |
| B | 6 | 255 | 91181 | 557.1 | 746 | 717 | 162.4 |
| C | 1 | 12 | 500306 | 2457.46 | 741 | 738 | 203.3 |
| C | 4 | 5 | 435042 | 2136.41 | 741 | 738 | 203.3 |
| C | 5 | 10 | 202970 | 994.81 | 741 | 738 | 203.3 |
| D | 8 | 240 | 208415 | 953.49 | 757 | 722 | 217.8 |
| D | 3 | 12 | 61049 | 276.95 | 757 | 722 | 217.8 |
| D | 2 | 207 | 49803 | 225.32 | 757 | 722 | 217.8 |

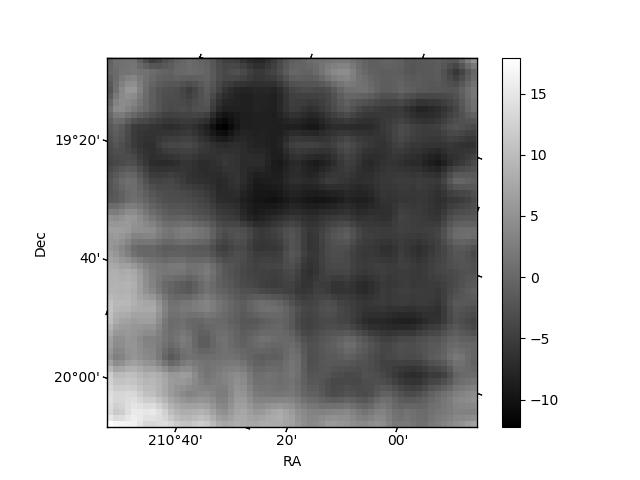

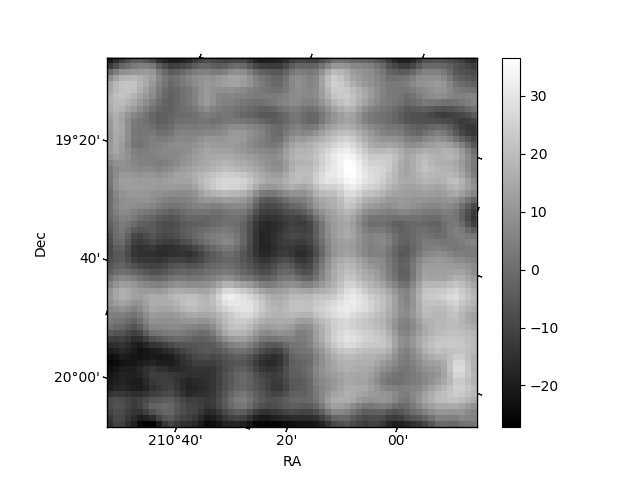

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

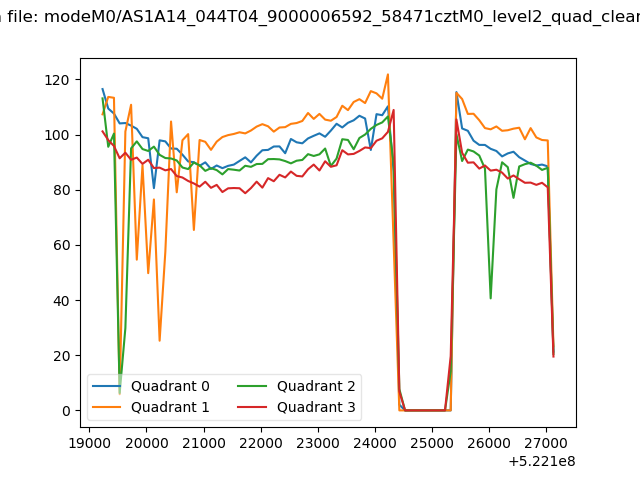

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

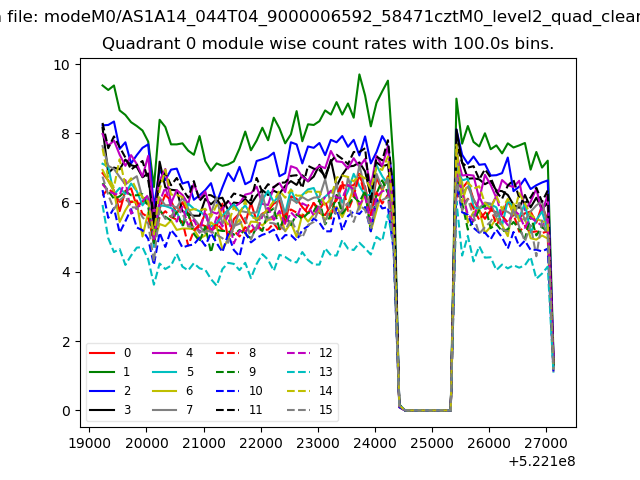

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

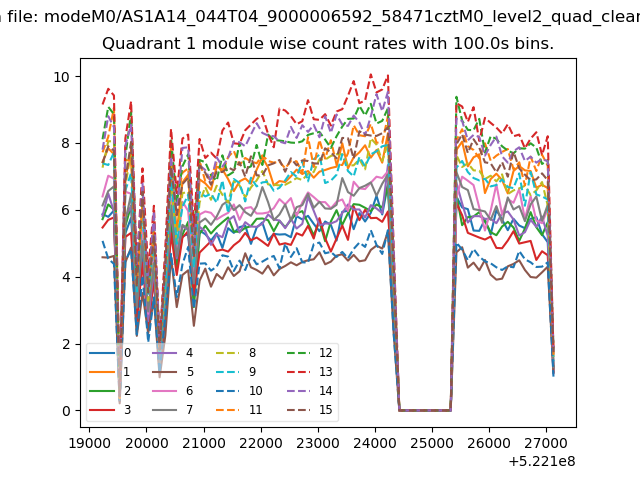

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

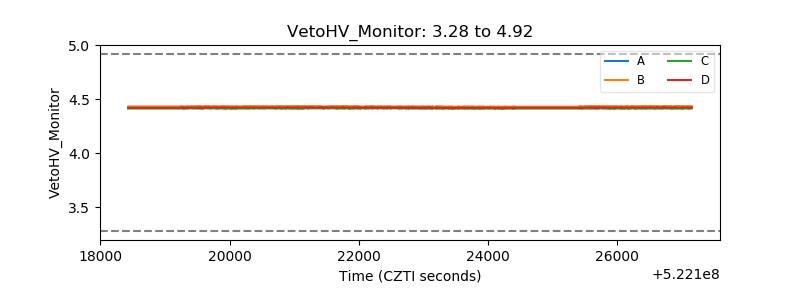

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

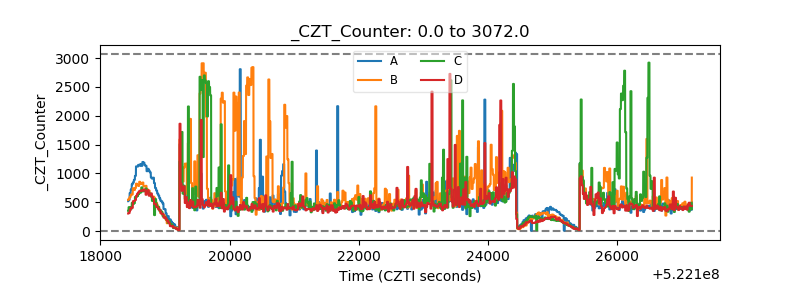

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
