| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58474cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58474cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,628,160 | 120,839,040 |
| Size | 467.9 MB | 115.2 MB |
| Events in quadrant A | 4,006,599 | 791,073 |
| Events in quadrant B | 5,168,215 | 817,058 |
| Events in quadrant C | 4,098,474 | 761,052 |
| Events in quadrant D | 4,241,392 | 711,882 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17879 | 0 |
| B | 0 | 21014 | 0 |
| C | 0 | 18143 | 0 |
| D | 0 | 18476 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8317 | 86 | 1.034027% |
| B | 8318 | 539 | 6.479923% |
| C | 8318 | 63 | 0.757394% |
| D | 8318 | 65 | 0.781438% |

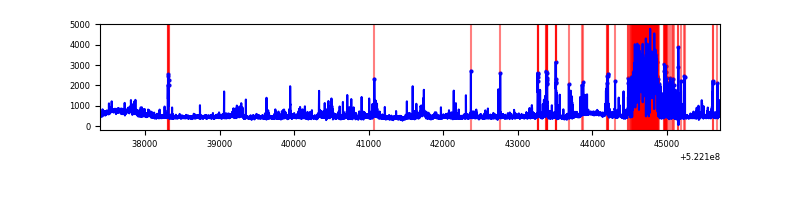

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8317 | 8317 | 25 | 25 | 0.30% | 0.30% |  |
| B | 8318 | 8318 | 299 | 299 | 3.59% | 3.59% |  |
| C | 8318 | 8318 | 40 | 40 | 0.48% | 0.48% |  |
| D | 8318 | 8318 | 49 | 49 | 0.59% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 215012 | 914.77 | 946 | 921 | 234.0 |
| A | 12 | 80 | 29211 | 120.88 | 946 | 921 | 234.0 |
| A | 2 | 143 | 25008 | 102.92 | 946 | 921 | 234.0 |
| B | 2 | 249 | 1011084 | 5164.47 | 915 | 879 | 195.6 |
| B | 5 | 172 | 231738 | 1180.22 | 915 | 879 | 195.6 |
| B | 10 | 247 | 144262 | 733.02 | 915 | 879 | 195.6 |
| C | 5 | 10 | 197958 | 788.75 | 918 | 907 | 249.8 |
| C | 12 | 252 | 72891 | 288.13 | 918 | 907 | 249.8 |
| C | 14 | 245 | 56347 | 221.91 | 918 | 907 | 249.8 |
| D | 8 | 240 | 345236 | 1342.74 | 910 | 870 | 256.5 |
| D | 3 | 12 | 99051 | 382.82 | 910 | 870 | 256.5 |
| D | 5 | 113 | 79893 | 308.12 | 910 | 870 | 256.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

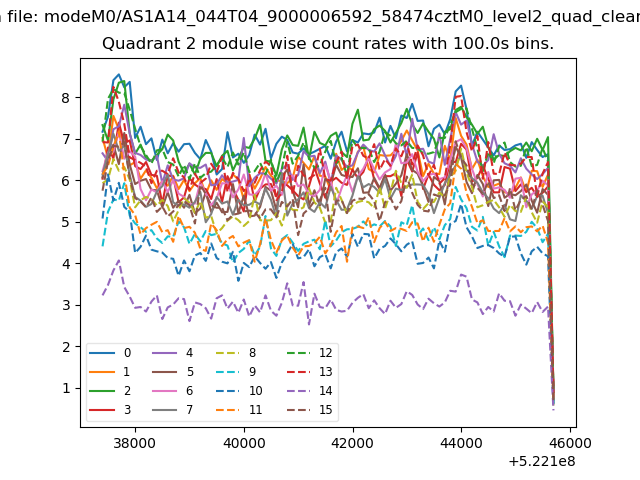

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

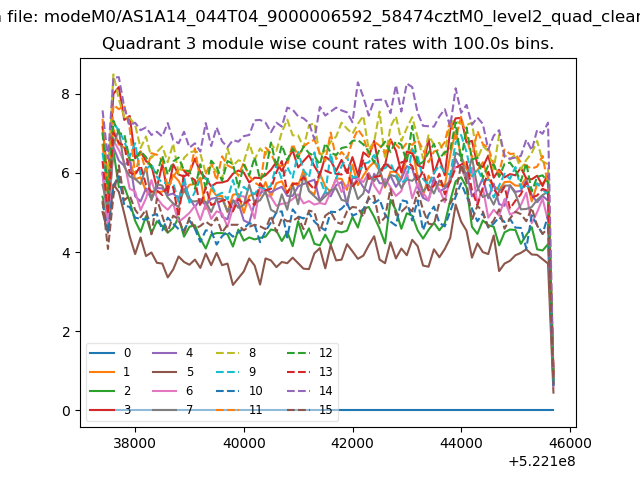

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

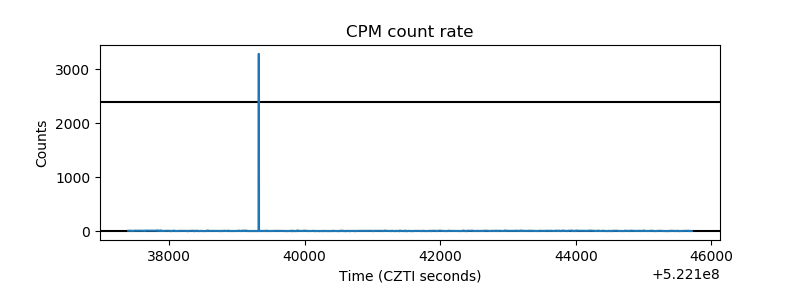

| _CPM_Rate |  |

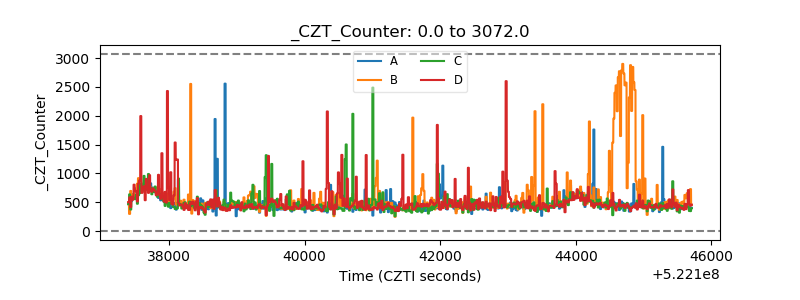

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

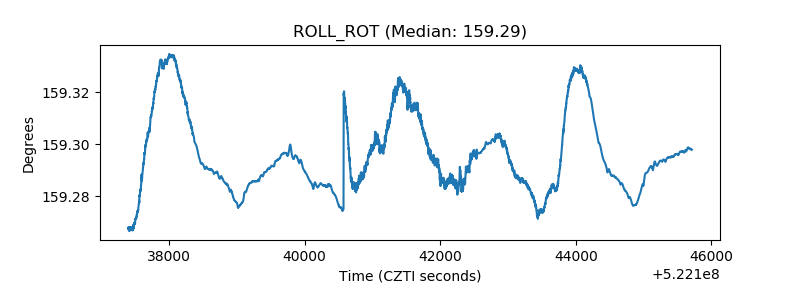

| _ROLL_ROT |  |

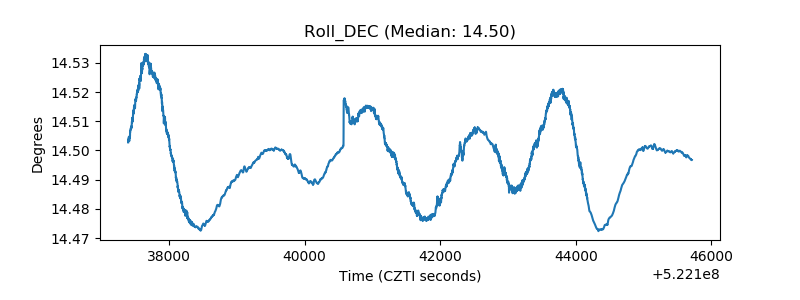

| _Roll_DEC |  |

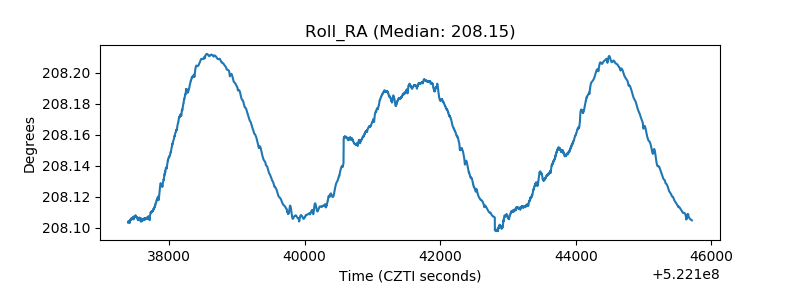

| _Roll_RA |  |
| Veto Counter |  |
