| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58478cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58478cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,489,480,640 | 416,626,560 |
| Size | 2.3 GB | 397.3 MB |
| Events in quadrant A | 19,594,032 | 2,772,533 |
| Events in quadrant B | 27,984,583 | 2,625,846 |
| Events in quadrant C | 22,391,674 | 2,584,936 |
| Events in quadrant D | 19,831,773 | 2,538,758 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 79210 | 6 |
| B | 0 | 103976 | 3 |
| C | 0 | 88257 | 3 |
| D | 0 | 80272 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 616 | 0 |
| B | 0 | 616 | 0 |
| C | 0 | 616 | 0 |
| D | 0 | 616 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 30421 | 1695 | 5.571809% |
| B | 30421 | 5603 | 18.418198% |
| C | 30421 | 2682 | 8.816278% |
| D | 30422 | 1202 | 3.951088% |

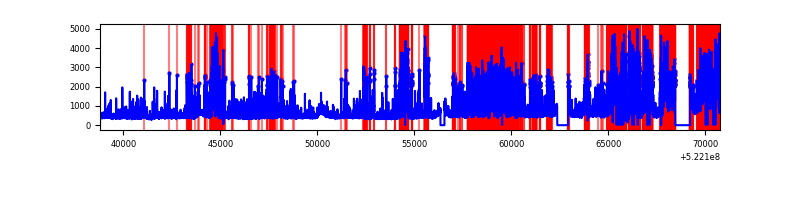

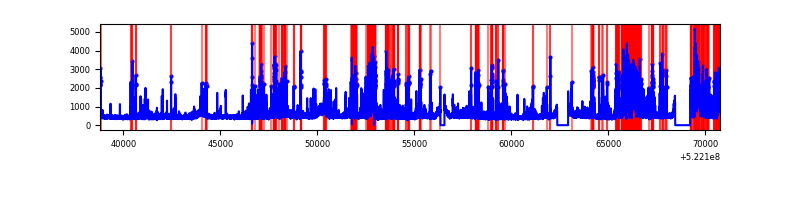

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31966 | 30424 | 1188 | 1188 | 3.72% | 3.90% |  |
| B | 31965 | 30422 | 3736 | 3736 | 11.69% | 12.28% |  |
| C | 31966 | 30424 | 2258 | 2258 | 7.06% | 7.42% |  |
| D | 31967 | 30425 | 963 | 963 | 3.01% | 3.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 2943548 | 3585.31 | 3314 | 3230 | 820.1 |
| A | 10 | 17 | 1683753 | 2049.17 | 3314 | 3230 | 820.1 |
| A | 10 | 251 | 534751 | 648.12 | 3314 | 3230 | 820.1 |
| B | 2 | 249 | 9700744 | 15038.03 | 3011 | 2892 | 644.9 |
| B | 5 | 172 | 4989474 | 7732.47 | 3011 | 2892 | 644.9 |
| B | 10 | 247 | 339879 | 522.55 | 3011 | 2892 | 644.9 |
| C | 15 | 147 | 5284888 | 6118.95 | 3169 | 3141 | 863.2 |
| C | 5 | 10 | 1846995 | 2136.12 | 3169 | 3141 | 863.2 |
| C | 15 | 1 | 593680 | 684.15 | 3169 | 3141 | 863.2 |
| D | 8 | 240 | 3227939 | 3513.32 | 3233 | 3086 | 917.9 |
| D | 2 | 153 | 2688957 | 2926.12 | 3233 | 3086 | 917.9 |
| D | 3 | 12 | 373859 | 403.94 | 3233 | 3086 | 917.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

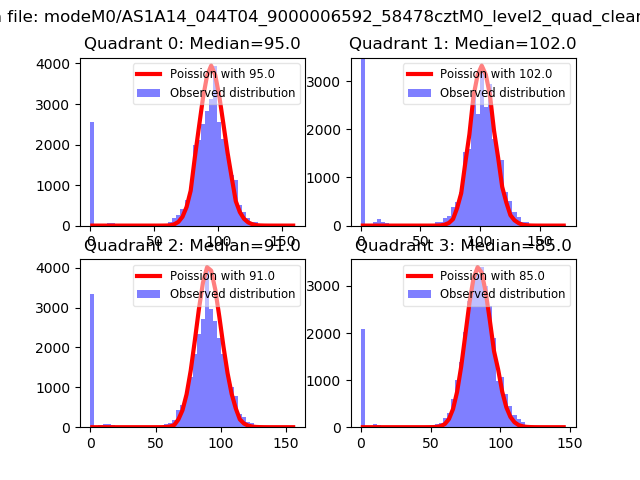

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

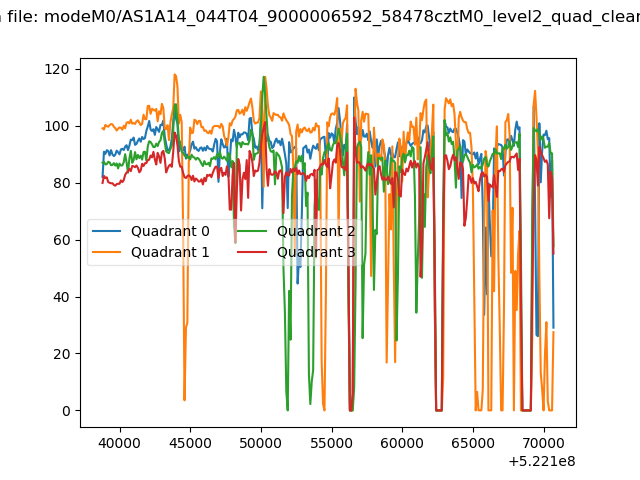

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

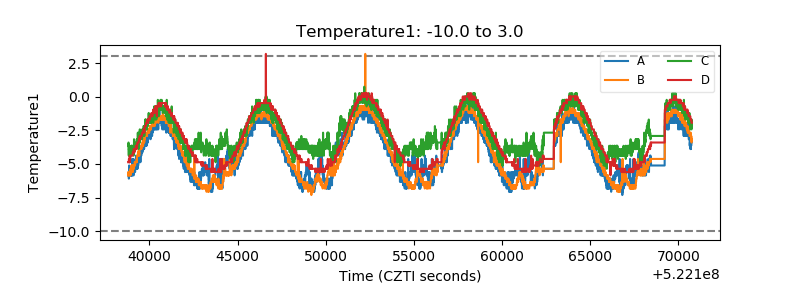

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

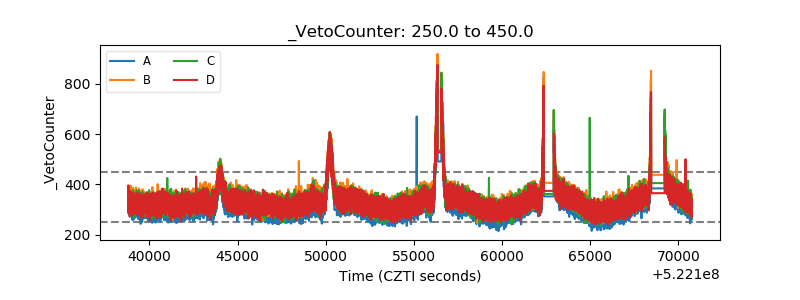

| Veto Counter |  |
