| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58479cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58479cztM0_level2_quad_clean.evt |
| Size (bytes) | 738,054,720 | 84,962,880 |
| Size | 703.9 MB | 81.0 MB |
| Events in quadrant A | 7,832,011 | 531,509 |
| Events in quadrant B | 10,407,545 | 388,750 |
| Events in quadrant C | 4,089,785 | 610,086 |
| Events in quadrant D | 4,469,732 | 572,517 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27727 | 2 |
| B | 0 | 35522 | 2 |
| C | 0 | 16956 | 2 |
| D | 0 | 18024 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6727 | 1465 | 21.777910% |
| B | 6728 | 3153 | 46.863853% |
| C | 6728 | 224 | 3.329370% |
| D | 6727 | 275 | 4.088004% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7687 | 6728 | 1395 | 1395 | 18.15% | 20.73% |  |
| B | 7688 | 6729 | 2322 | 2322 | 30.20% | 34.51% |  |
| C | 7688 | 6729 | 154 | 154 | 2.00% | 2.29% |  |
| D | 7687 | 6728 | 240 | 240 | 3.12% | 3.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 4370346 | 25754.46 | 681 | 663 | 169.7 |
| A | 2 | 143 | 205979 | 1210.11 | 681 | 663 | 169.7 |
| A | 12 | 80 | 172918 | 1015.25 | 681 | 663 | 169.7 |
| B | 2 | 249 | 6520460 | 57073.08 | 524 | 504 | 114.2 |
| B | 5 | 172 | 1592566 | 13936.27 | 524 | 504 | 114.2 |
| B | 0 | 186 | 91904 | 800.08 | 524 | 504 | 114.2 |
| C | 15 | 1 | 472121 | 2390.69 | 714 | 707 | 197.2 |
| C | 15 | 208 | 136261 | 687.44 | 714 | 707 | 197.2 |
| C | 1 | 12 | 121264 | 611.38 | 714 | 707 | 197.2 |
| D | 8 | 240 | 644612 | 3174.6 | 711 | 678 | 202.8 |
| D | 2 | 153 | 456263 | 2246.04 | 711 | 678 | 202.8 |
| D | 3 | 12 | 276154 | 1358.1 | 711 | 678 | 202.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

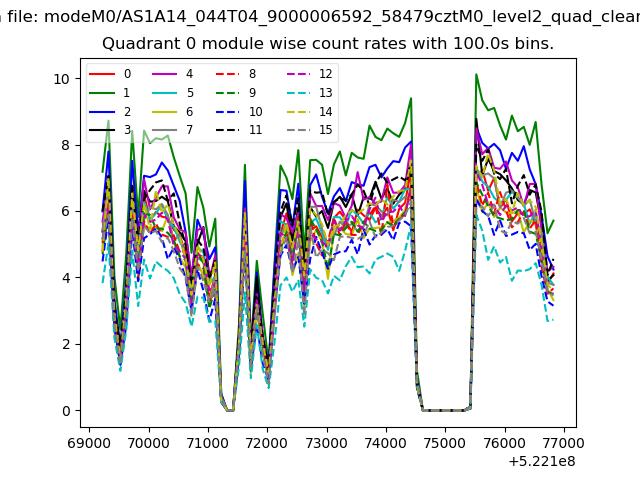

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

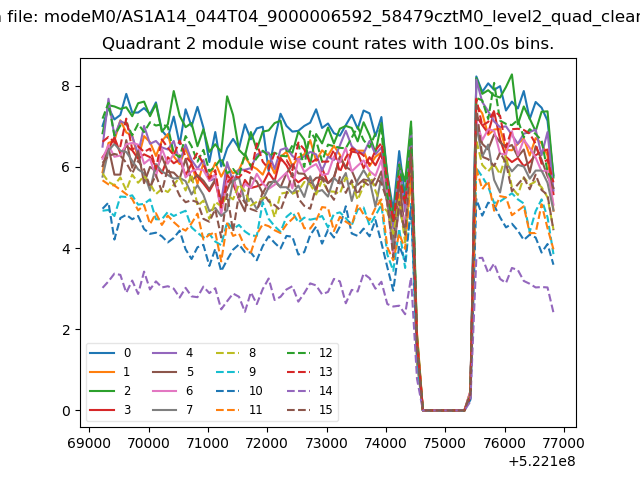

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
