| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58482cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58482cztM0_level2_quad_clean.evt |
| Size (bytes) | 615,026,880 | 81,944,640 |
| Size | 586.5 MB | 78.1 MB |
| Events in quadrant A | 3,832,269 | 621,574 |
| Events in quadrant B | 11,386,240 | 269,434 |
| Events in quadrant C | 3,383,978 | 601,205 |
| Events in quadrant D | 3,678,353 | 553,477 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15541 | 2 |
| B | 0 | 38118 | 7 |
| C | 0 | 14458 | 2 |
| D | 0 | 15314 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6245 | 126 | 2.017614% |
| B | 6244 | 3867 | 61.931454% |
| C | 6244 | 103 | 1.649584% |
| D | 6244 | 182 | 2.914798% |

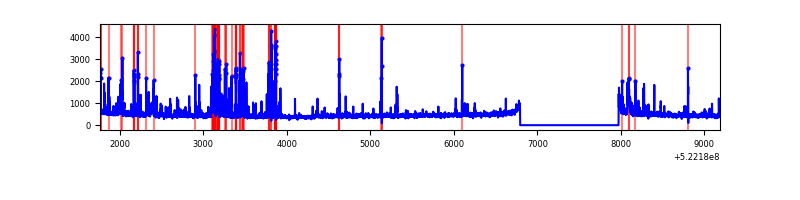

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7425 | 6246 | 79 | 79 | 1.06% | 1.26% |  |
| B | 7424 | 6245 | 2937 | 2937 | 39.56% | 47.03% |  |
| C | 7424 | 6245 | 90 | 90 | 1.21% | 1.44% |  |
| D | 7424 | 6245 | 171 | 171 | 2.30% | 2.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 259745 | 1504.79 | 688 | 671 | 172.2 |
| A | 12 | 114 | 225316 | 1304.82 | 688 | 671 | 172.2 |
| A | 7 | 64 | 181127 | 1048.15 | 688 | 671 | 172.2 |
| B | 2 | 249 | 8946696 | 110234.66 | 377 | 364 | 81.2 |
| B | 5 | 172 | 822952 | 10135.74 | 377 | 364 | 81.2 |
| B | 0 | 153 | 40736 | 497.45 | 377 | 364 | 81.2 |
| C | 5 | 10 | 331640 | 1778.18 | 673 | 665 | 186.1 |
| C | 12 | 249 | 86956 | 463.6 | 673 | 665 | 186.1 |
| C | 12 | 252 | 81077 | 432.02 | 673 | 665 | 186.1 |
| D | 8 | 240 | 589025 | 3159.15 | 661 | 630 | 186.3 |
| D | 3 | 12 | 251344 | 1346.11 | 661 | 630 | 186.3 |
| D | 0 | 97 | 91199 | 486.27 | 661 | 630 | 186.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

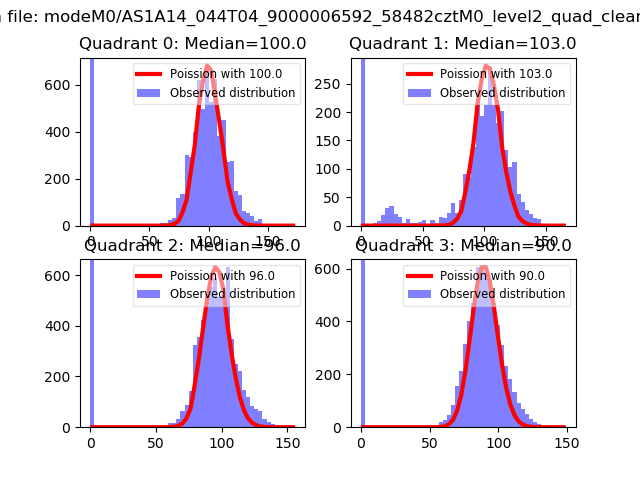

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

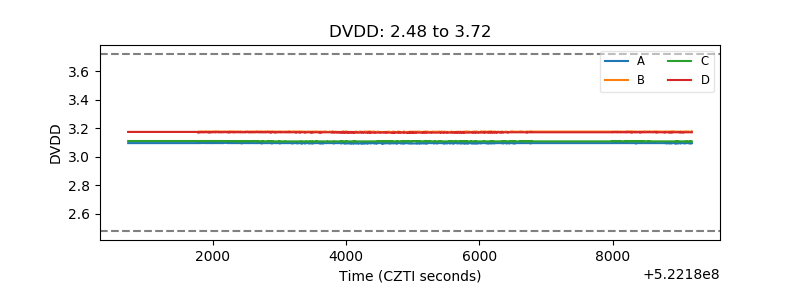

| D_VDD |  |

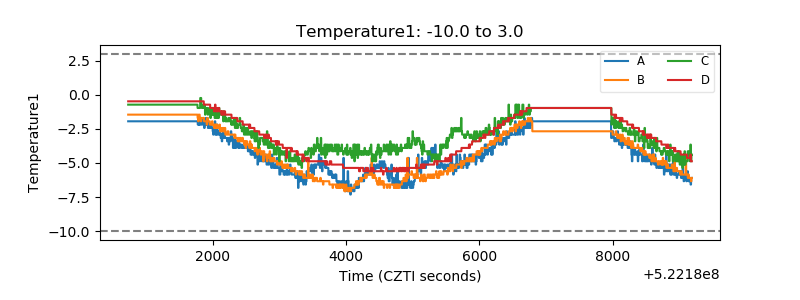

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

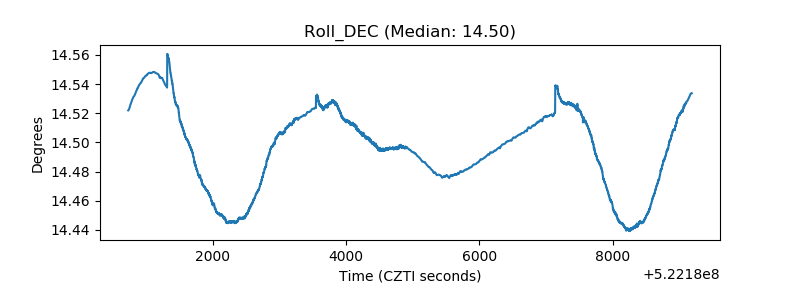

| _Roll_DEC |  |
| _Roll_RA |  |

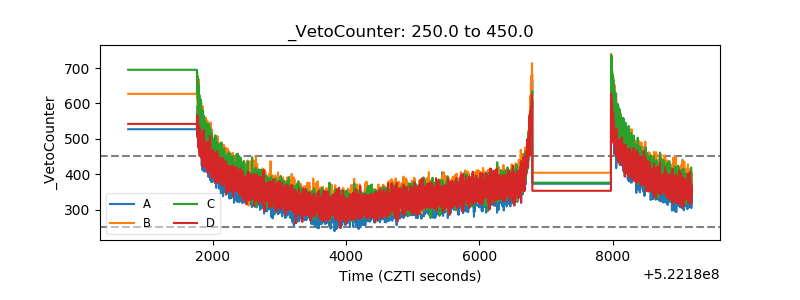

| Veto Counter |  |
