| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58485cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58485cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,721,920 | 96,520,320 |
| Size | 452.7 MB | 92.0 MB |
| Events in quadrant A | 3,755,486 | 628,065 |
| Events in quadrant B | 5,766,282 | 642,592 |
| Events in quadrant C | 3,900,320 | 607,819 |
| Events in quadrant D | 3,625,245 | 572,607 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15930 | 2 |
| B | 0 | 21758 | 2 |
| C | 0 | 16313 | 3 |
| D | 0 | 15666 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6763 | 186 | 2.750259% |
| B | 6763 | 632 | 9.344965% |
| C | 6762 | 216 | 3.194321% |
| D | 6763 | 96 | 1.419488% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9334 | 6946 | 80 | 80 | 0.86% | 1.15% |  |
| B | 9334 | 6946 | 285 | 285 | 3.05% | 4.10% |  |
| C | 9332 | 6944 | 126 | 126 | 1.35% | 1.81% |  |
| D | 9334 | 6946 | 64 | 64 | 0.69% | 0.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 238188 | 1258.89 | 765 | 744 | 188.6 |
| A | 10 | 17 | 194843 | 1029.08 | 765 | 744 | 188.6 |
| A | 12 | 114 | 177562 | 937.46 | 765 | 744 | 188.6 |
| B | 5 | 172 | 1680632 | 10506.03 | 744 | 717 | 159.9 |
| B | 2 | 249 | 878233 | 5487.9 | 744 | 717 | 159.9 |
| B | 6 | 37 | 74255 | 459.9 | 744 | 717 | 159.9 |
| C | 1 | 12 | 325728 | 1589.6 | 742 | 738 | 204.4 |
| C | 6 | 223 | 206325 | 1005.57 | 742 | 738 | 204.4 |
| C | 4 | 5 | 195593 | 953.08 | 742 | 738 | 204.4 |
| D | 3 | 12 | 262445 | 1250.16 | 739 | 707 | 209.4 |
| D | 2 | 31 | 147747 | 702.32 | 739 | 707 | 209.4 |
| D | 8 | 240 | 136966 | 650.82 | 739 | 707 | 209.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

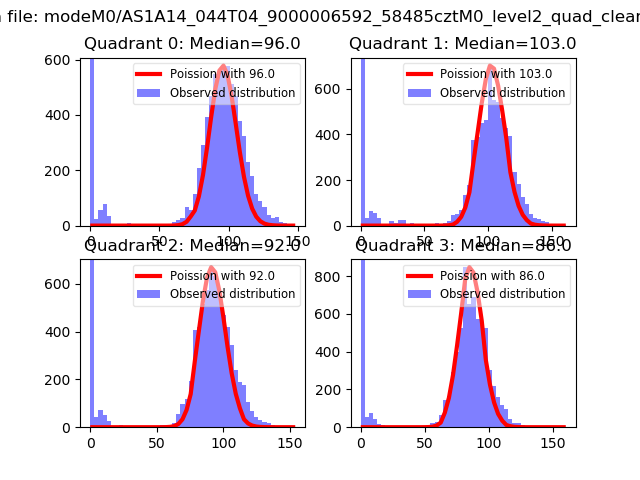

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

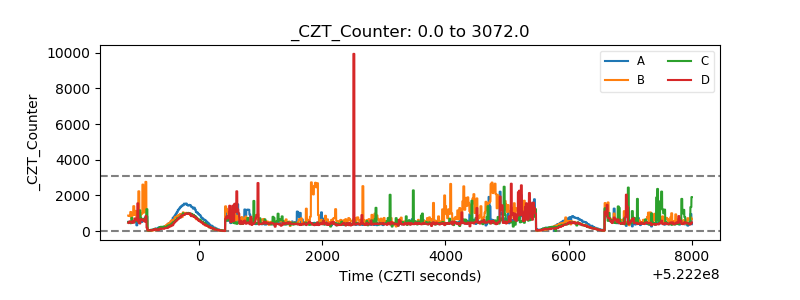

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
