| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58486cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58486cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,027,840 | 100,114,560 |
| Size | 537.9 MB | 95.5 MB |
| Events in quadrant A | 4,189,142 | 657,225 |
| Events in quadrant B | 7,600,981 | 649,395 |
| Events in quadrant C | 4,064,132 | 631,946 |
| Events in quadrant D | 4,457,328 | 583,883 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17532 | 103 |
| B | 0 | 27964 | 241 |
| C | 0 | 17341 | 86 |
| D | 0 | 18590 | 87 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 2 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 1 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7304 | 218 | 2.984666% |
| B | 7303 | 981 | 13.432836% |
| C | 7304 | 239 | 3.272180% |
| D | 7303 | 294 | 4.025743% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9578 | 7495 | 79 | 79 | 0.82% | 1.05% |  |
| B | 9578 | 7490 | 460 | 460 | 4.80% | 6.14% |  |
| C | 9577 | 7490 | 135 | 135 | 1.41% | 1.80% |  |
| D | 9577 | 7492 | 235 | 235 | 2.45% | 3.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 473993 | 2320.41 | 827 | 805 | 203.9 |
| A | 12 | 80 | 172980 | 844.31 | 827 | 805 | 203.9 |
| A | 3 | 14 | 148429 | 723.92 | 827 | 805 | 203.9 |
| B | 5 | 172 | 3617478 | 20945.77 | 797 | 767 | 172.7 |
| B | 2 | 249 | 424819 | 2455.85 | 797 | 767 | 172.7 |
| B | 0 | 157 | 205242 | 1184.19 | 797 | 767 | 172.7 |
| C | 1 | 12 | 463303 | 2095.58 | 800 | 794 | 220.7 |
| C | 4 | 5 | 160865 | 725.26 | 800 | 794 | 220.7 |
| C | 6 | 223 | 71647 | 321.03 | 800 | 794 | 220.7 |
| D | 3 | 12 | 568431 | 2523.24 | 791 | 756 | 225.0 |
| D | 2 | 153 | 453835 | 2013.88 | 791 | 756 | 225.0 |
| D | 2 | 31 | 128934 | 569.74 | 791 | 756 | 225.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

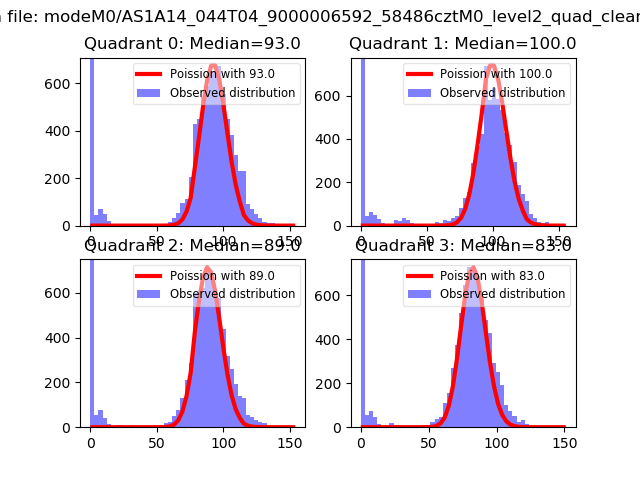

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

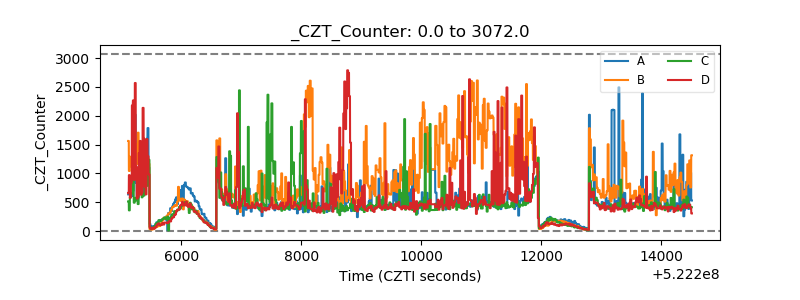

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

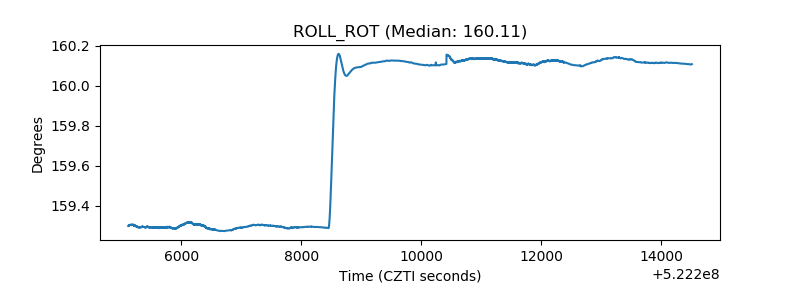

| _ROLL_ROT |  |

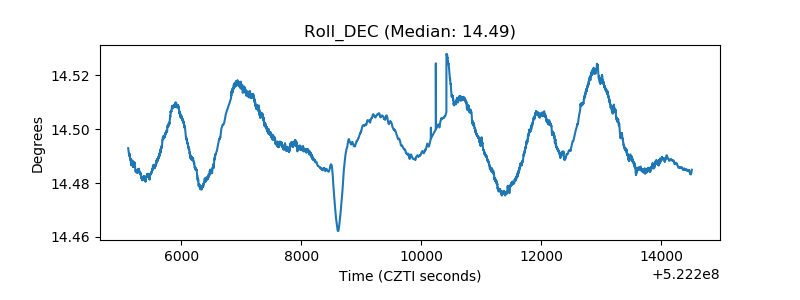

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
