| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58487cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58487cztM0_level2_quad_clean.evt |
| Size (bytes) | 607,026,240 | 114,071,040 |
| Size | 578.9 MB | 108.8 MB |
| Events in quadrant A | 4,975,132 | 738,753 |
| Events in quadrant B | 8,342,407 | 732,968 |
| Events in quadrant C | 4,074,586 | 735,661 |
| Events in quadrant D | 4,443,258 | 678,343 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20381 | 1 |
| B | 0 | 30619 | 1 |
| C | 0 | 18026 | 1 |
| D | 0 | 19223 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8175 | 562 | 6.874618% |
| B | 8176 | 1325 | 16.205969% |
| C | 8176 | 335 | 4.097358% |
| D | 8176 | 436 | 5.332681% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

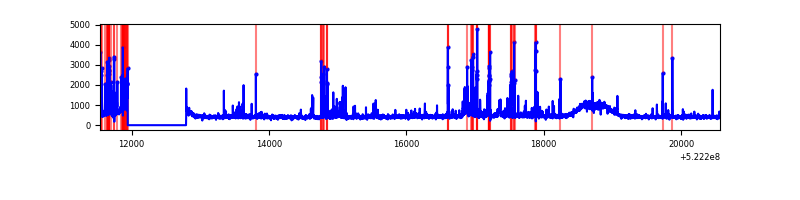

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9025 | 8176 | 90 | 90 | 1.00% | 1.10% |  |
| B | 9026 | 8177 | 486 | 486 | 5.38% | 5.94% |  |
| C | 9026 | 8177 | 12 | 12 | 0.13% | 0.15% |  |
| D | 9026 | 8177 | 87 | 87 | 0.96% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 597204 | 2471.03 | 972 | 945 | 241.3 |
| A | 3 | 14 | 145323 | 598.33 | 972 | 945 | 241.3 |
| A | 10 | 143 | 126294 | 519.47 | 972 | 945 | 241.3 |
| B | 5 | 172 | 4385091 | 21339.31 | 925 | 885 | 205.5 |
| B | 2 | 249 | 122153 | 590.25 | 925 | 885 | 205.5 |
| B | 0 | 186 | 34595 | 164.08 | 925 | 885 | 205.5 |
| C | 6 | 13 | 135366 | 513.06 | 956 | 947 | 262.0 |
| C | 12 | 252 | 88374 | 333.7 | 956 | 947 | 262.0 |
| C | 6 | 223 | 69225 | 260.61 | 956 | 947 | 262.0 |
| D | 3 | 12 | 273740 | 1032.81 | 946 | 906 | 264.2 |
| D | 2 | 31 | 177741 | 669.4 | 946 | 906 | 264.2 |
| D | 2 | 153 | 101304 | 380.05 | 946 | 906 | 264.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

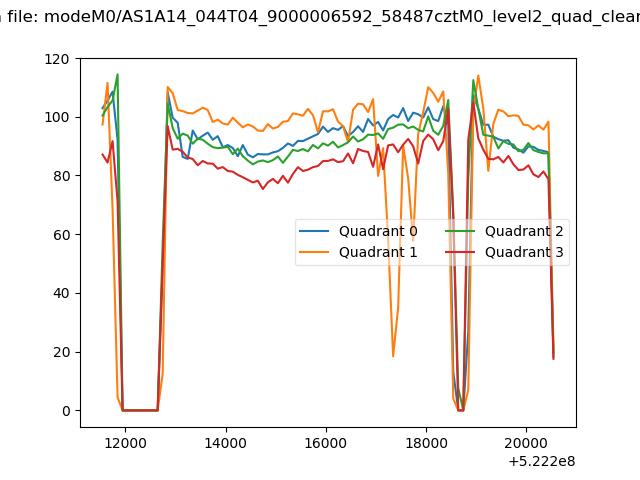

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

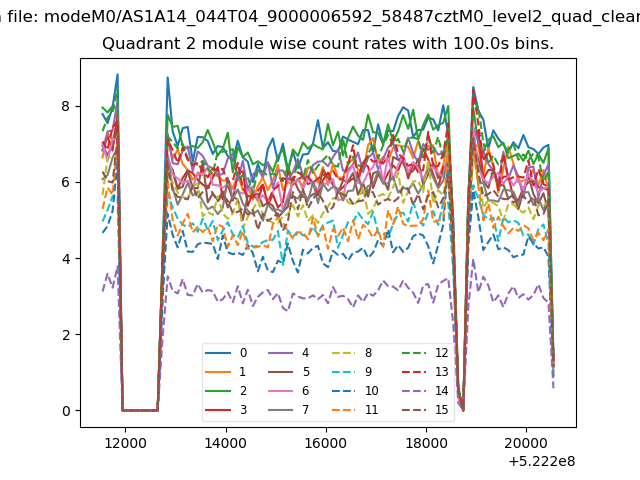

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

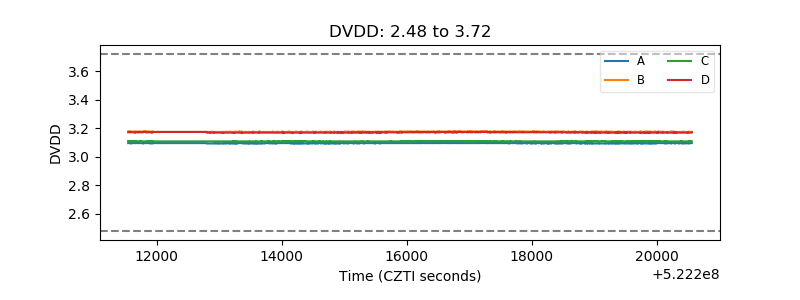

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

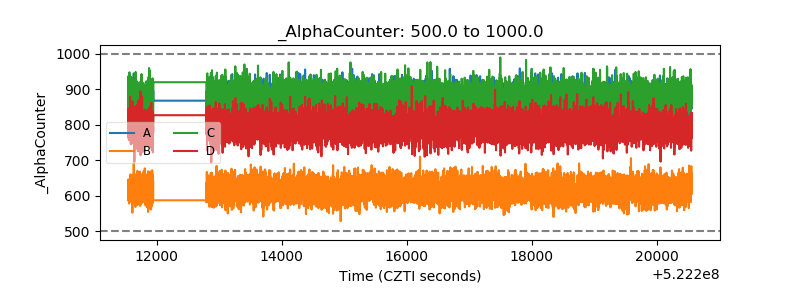

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

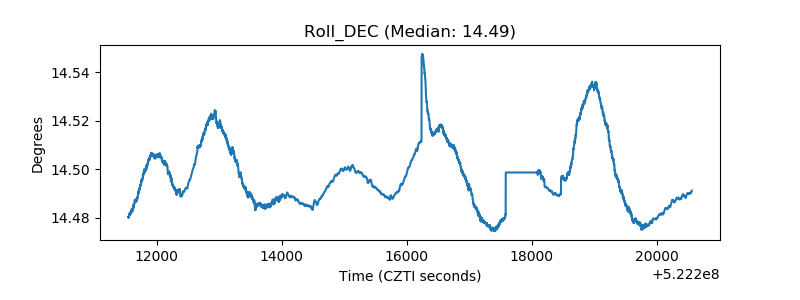

| _Roll_DEC |  |

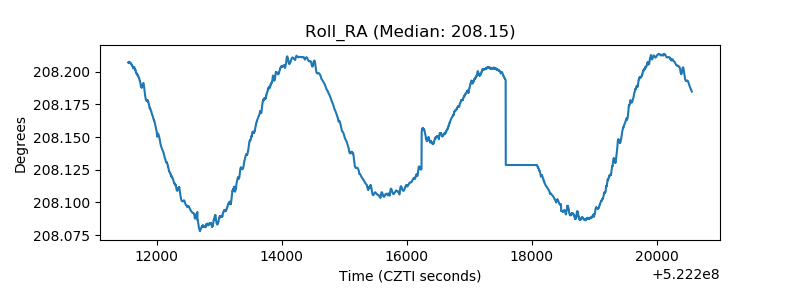

| _Roll_RA |  |

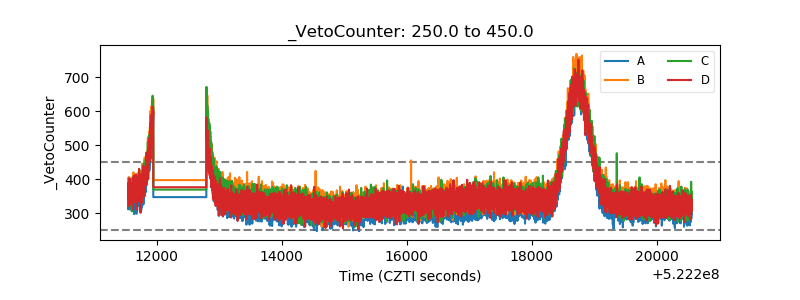

| Veto Counter |  |
