| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58488cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58488cztM0_level2_quad_clean.evt |
| Size (bytes) | 690,923,520 | 118,059,840 |
| Size | 658.9 MB | 112.6 MB |
| Events in quadrant A | 4,814,913 | 790,081 |
| Events in quadrant B | 10,801,871 | 665,694 |
| Events in quadrant C | 4,855,905 | 777,901 |
| Events in quadrant D | 4,421,795 | 731,906 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20454 | 1 |
| B | 0 | 38287 | 0 |
| C | 0 | 20588 | 0 |
| D | 0 | 19548 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 0 |
| B | 0 | 176 | 0 |
| C | 0 | 176 | 0 |
| D | 0 | 176 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8771 | 580 | 6.612701% |
| B | 8771 | 2507 | 28.582830% |
| C | 8771 | 428 | 4.879717% |
| D | 8771 | 332 | 3.785201% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

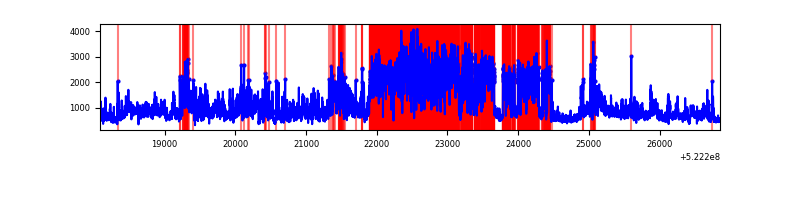

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8771 | 8771 | 124 | 124 | 1.41% | 1.41% |  |
| B | 8771 | 8771 | 1597 | 1597 | 18.21% | 18.21% |  |
| C | 8771 | 8771 | 78 | 78 | 0.89% | 0.89% |  |
| D | 8771 | 8771 | 40 | 40 | 0.46% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 258939 | 1025.62 | 1029 | 999 | 251.5 |
| A | 7 | 64 | 250706 | 992.88 | 1029 | 999 | 251.5 |
| A | 10 | 17 | 99402 | 391.27 | 1029 | 999 | 251.5 |
| B | 5 | 172 | 6769539 | 32437.09 | 949 | 909 | 208.7 |
| B | 0 | 157 | 58169 | 274.41 | 949 | 909 | 208.7 |
| B | 2 | 249 | 54409 | 256.39 | 949 | 909 | 208.7 |
| C | 2 | 12 | 401605 | 1461.31 | 1009 | 997 | 274.1 |
| C | 12 | 252 | 174478 | 632.81 | 1009 | 997 | 274.1 |
| C | 6 | 223 | 112327 | 406.1 | 1009 | 997 | 274.1 |
| D | 3 | 12 | 105755 | 368.79 | 1013 | 969 | 284.1 |
| D | 2 | 153 | 102731 | 358.14 | 1013 | 969 | 284.1 |
| D | 8 | 240 | 73338 | 254.7 | 1013 | 969 | 284.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

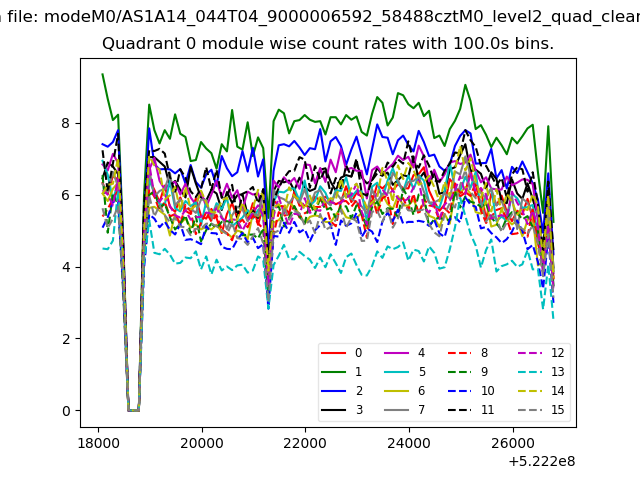

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

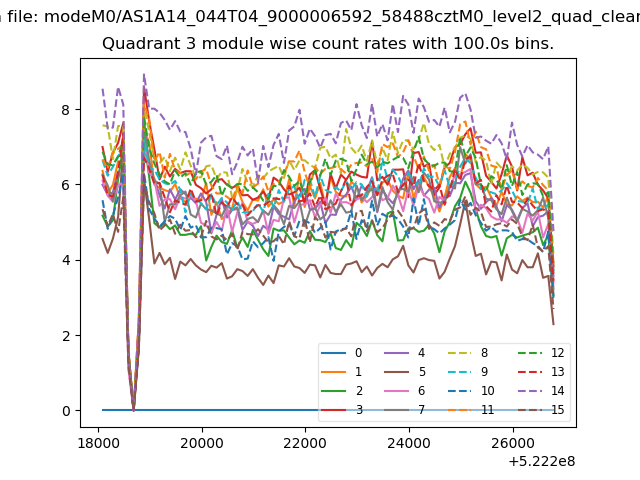

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

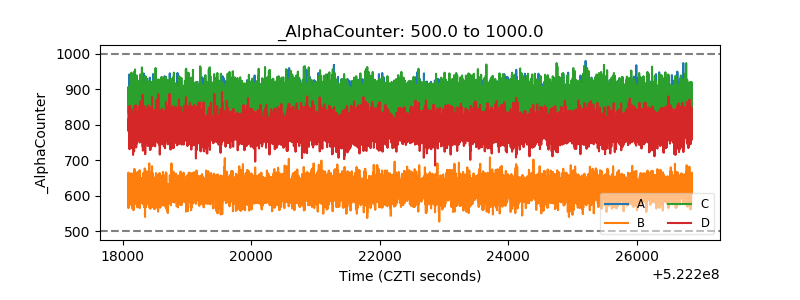

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

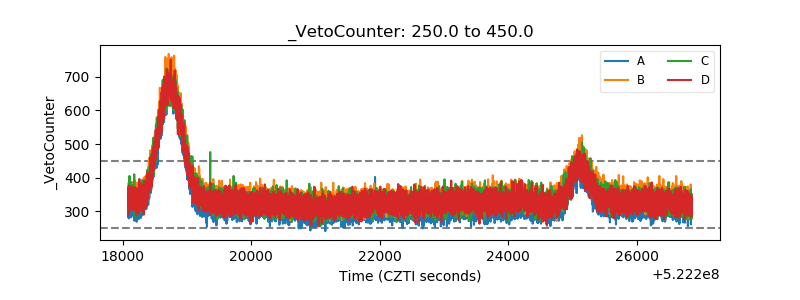

| Veto Counter |  |
