| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58492cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58492cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,374,744,960 | 278,009,280 |
| Size | 1.3 GB | 265.1 MB |
| Events in quadrant A | 10,452,308 | 1,805,110 |
| Events in quadrant B | 15,320,981 | 1,911,305 |
| Events in quadrant C | 10,056,469 | 1,768,426 |
| Events in quadrant D | 13,532,038 | 1,572,441 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44591 | 6 |
| B | 0 | 59032 | 3 |
| C | 0 | 44218 | 3 |
| D | 0 | 53728 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 400 | 0 |
| B | 0 | 400 | 0 |
| C | 0 | 400 | 0 |
| D | 0 | 400 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19735 | 718 | 3.638206% |
| B | 19735 | 1157 | 5.862681% |
| C | 19735 | 491 | 2.487966% |
| D | 19735 | 1298 | 6.577147% |

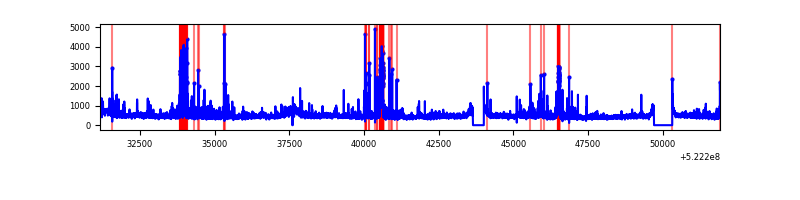

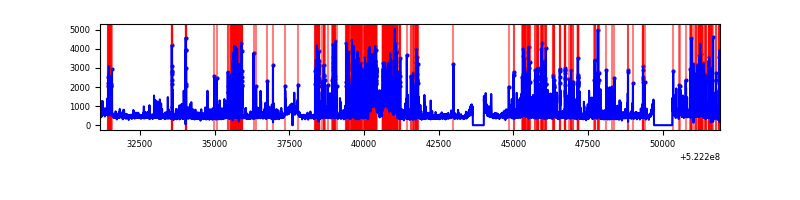

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

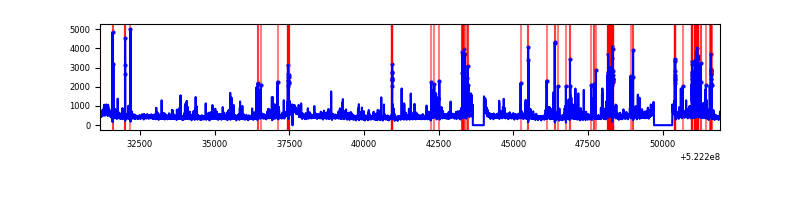

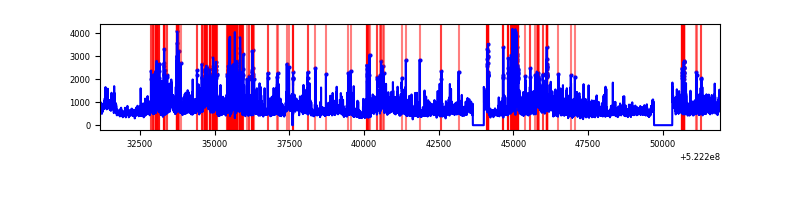

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20745 | 19738 | 243 | 243 | 1.17% | 1.23% |  |
| B | 20745 | 19738 | 392 | 392 | 1.89% | 1.99% |  |
| C | 20745 | 19738 | 169 | 169 | 0.81% | 0.86% |  |
| D | 20745 | 19738 | 881 | 881 | 4.25% | 4.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 657645 | 1190.64 | 2221 | 2161 | 550.5 |
| A | 10 | 143 | 436667 | 789.25 | 2221 | 2161 | 550.5 |
| A | 12 | 80 | 348504 | 629.1 | 2221 | 2161 | 550.5 |
| B | 5 | 172 | 4544125 | 9702.96 | 2176 | 2086 | 468.1 |
| B | 2 | 249 | 619040 | 1317.97 | 2176 | 2086 | 468.1 |
| B | 7 | 0 | 598184 | 1273.42 | 2176 | 2086 | 468.1 |
| C | 4 | 5 | 496378 | 840.09 | 2166 | 2146 | 588.3 |
| C | 14 | 254 | 248565 | 418.86 | 2166 | 2146 | 588.3 |
| C | 6 | 223 | 193420 | 325.13 | 2166 | 2146 | 588.3 |
| D | 3 | 12 | 2935208 | 4891.31 | 2134 | 2040 | 599.7 |
| D | 8 | 240 | 984882 | 1638.97 | 2134 | 2040 | 599.7 |
| D | 2 | 153 | 292089 | 483.68 | 2134 | 2040 | 599.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

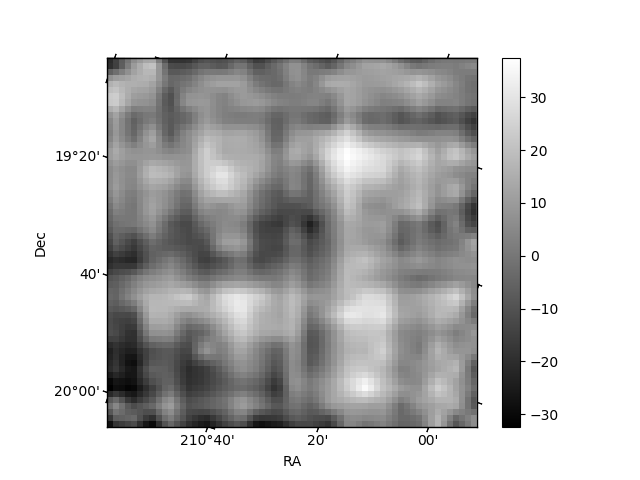

| Plot type | Count rate plots | Images |
|---|---|---|

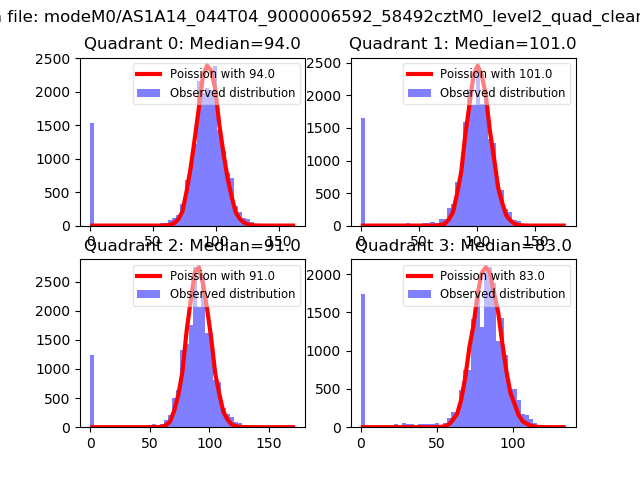

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

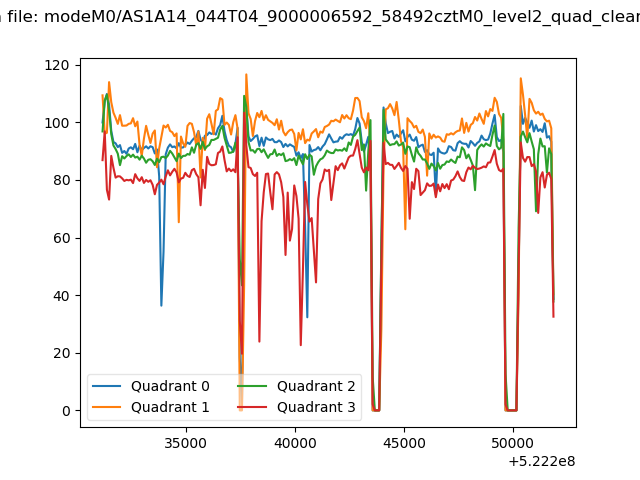

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

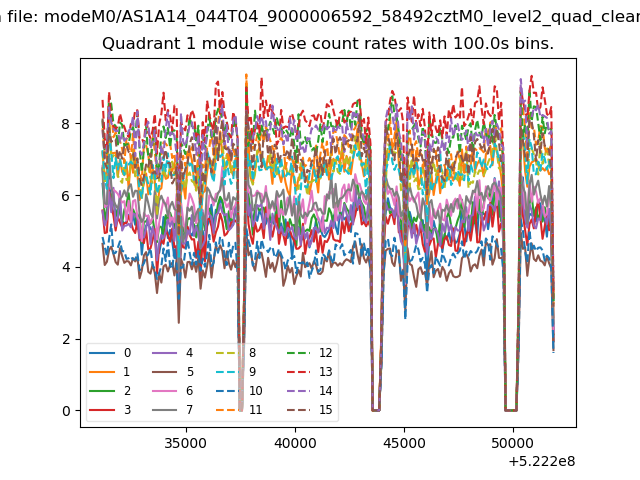

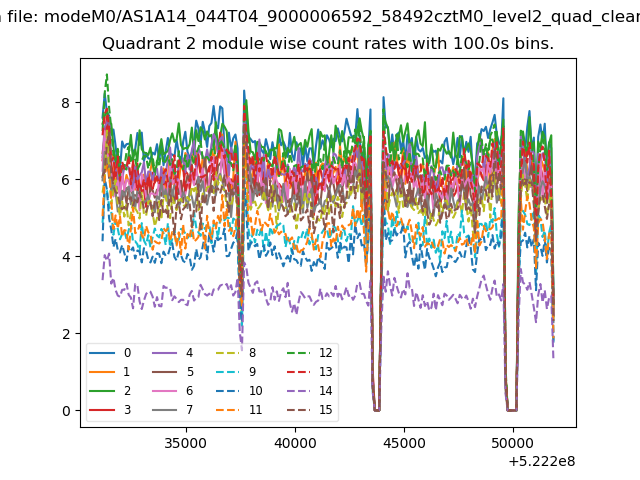

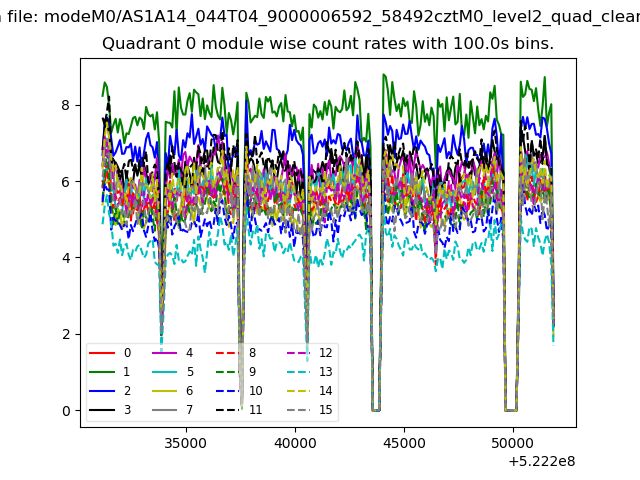

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

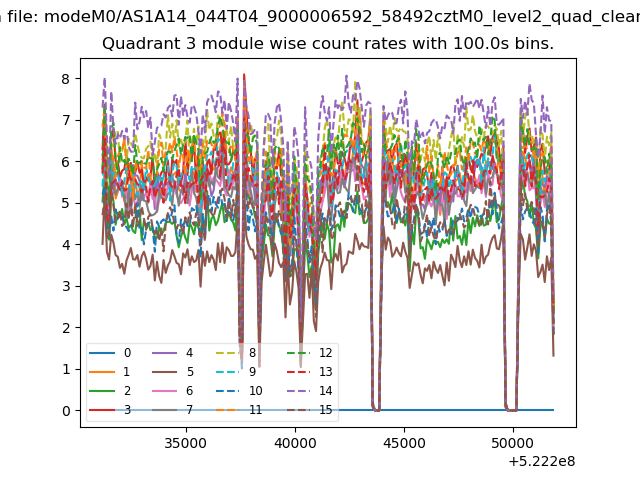

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

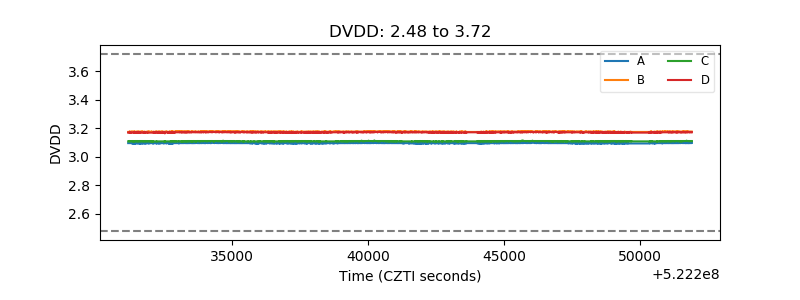

| D_VDD |  |

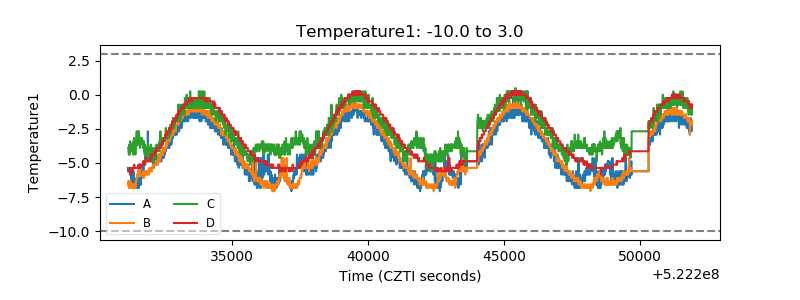

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

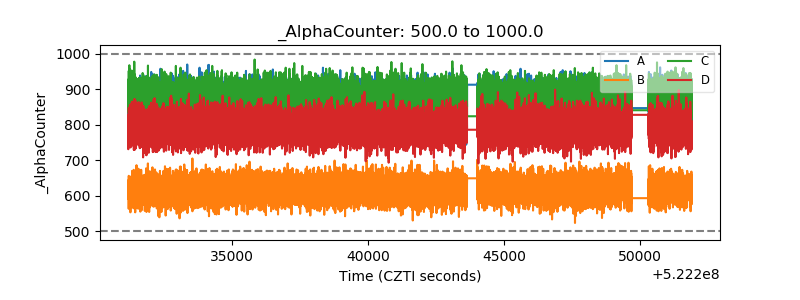

| Alpha Counter |  |

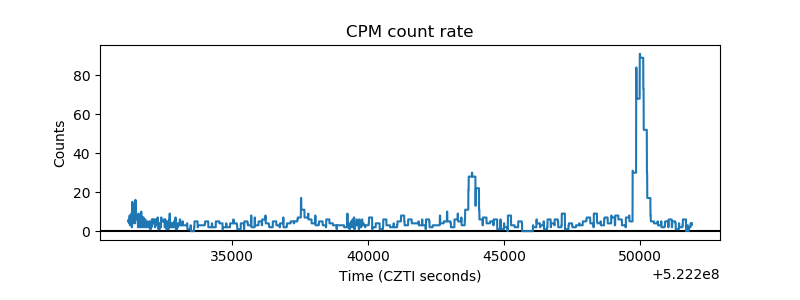

| _CPM_Rate |  |

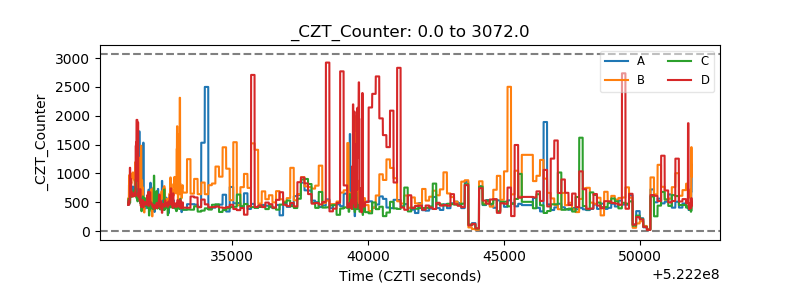

| CZT Counter |  |

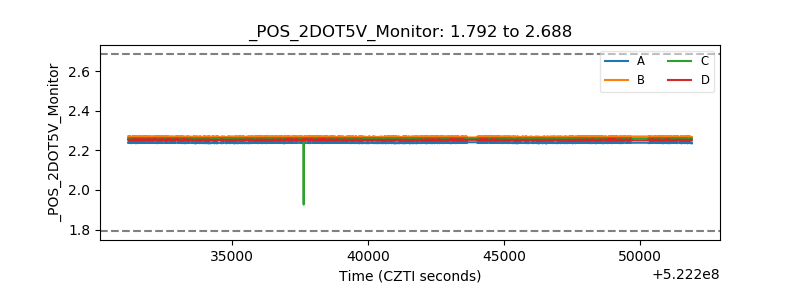

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

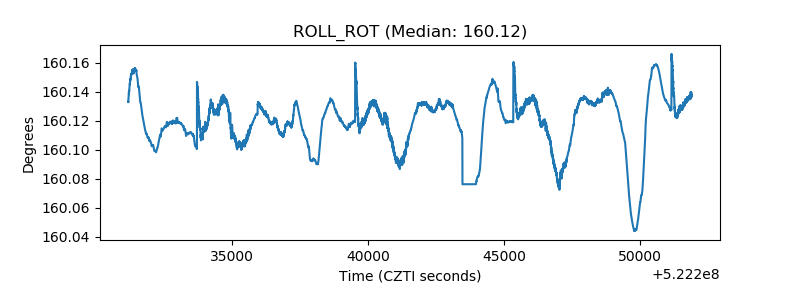

| _ROLL_ROT |  |

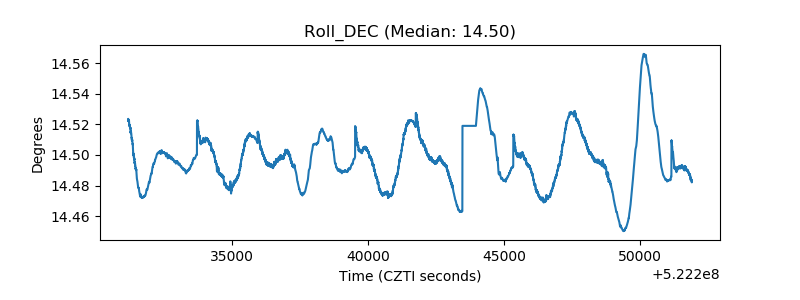

| _Roll_DEC |  |

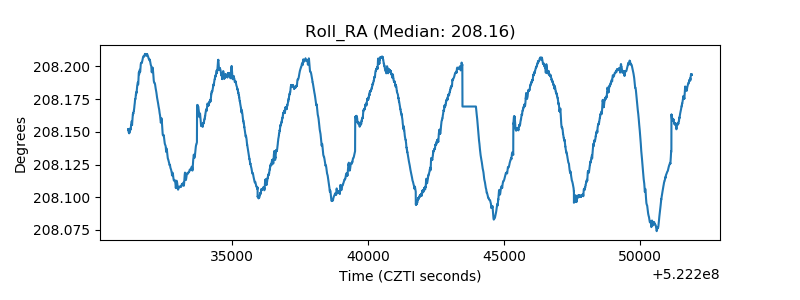

| _Roll_RA |  |

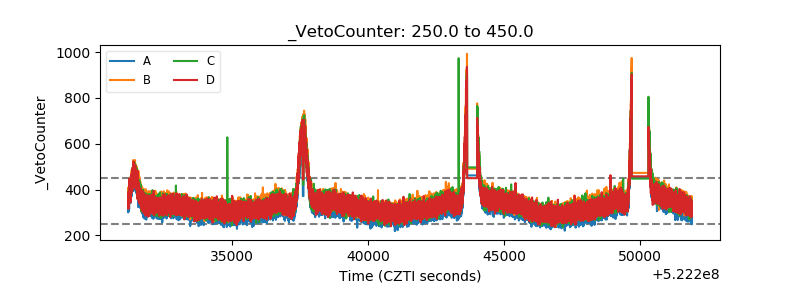

| Veto Counter |  |
