| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58493cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58493cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,396,480 | 99,783,360 |
| Size | 486.8 MB | 95.2 MB |
| Events in quadrant A | 3,385,411 | 660,730 |
| Events in quadrant B | 6,170,765 | 684,183 |
| Events in quadrant C | 4,585,801 | 609,120 |
| Events in quadrant D | 4,216,525 | 586,715 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14923 | 2 |
| B | 0 | 23230 | 2 |
| C | 0 | 18611 | 2 |
| D | 0 | 17329 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6890 | 85 | 1.233672% |
| B | 6891 | 466 | 6.762444% |
| C | 6891 | 392 | 5.688579% |
| D | 6891 | 255 | 3.700479% |

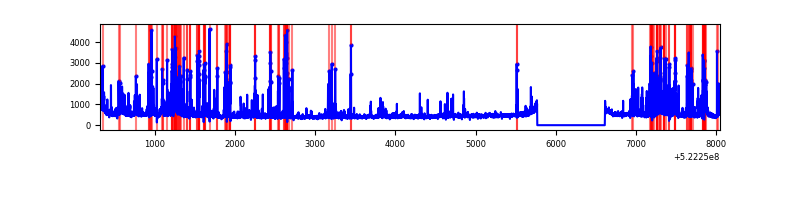

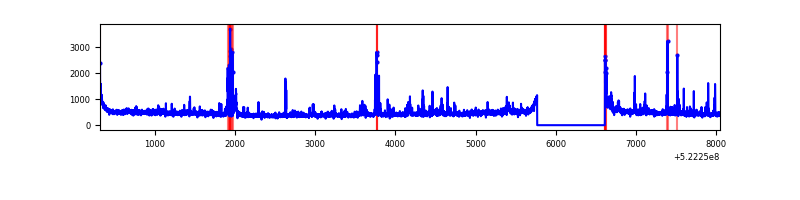

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6891 | 22 | 22 | 0.28% | 0.32% |  |
| B | 7736 | 6892 | 377 | 377 | 4.87% | 5.47% |  |
| C | 7736 | 6892 | 344 | 344 | 4.45% | 4.99% |  |
| D | 7736 | 6892 | 168 | 168 | 2.17% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 202026 | 1053.2 | 770 | 751 | 191.1 |
| A | 12 | 114 | 51391 | 264.98 | 770 | 751 | 191.1 |
| A | 10 | 251 | 30381 | 155.04 | 770 | 751 | 191.1 |
| B | 5 | 172 | 2251643 | 13984.86 | 747 | 721 | 161.0 |
| B | 7 | 0 | 476037 | 2953.11 | 747 | 721 | 161.0 |
| B | 2 | 249 | 72015 | 442.95 | 747 | 721 | 161.0 |
| C | 13 | 3 | 813381 | 4022.91 | 733 | 725 | 202.0 |
| C | 15 | 223 | 261256 | 1289.71 | 733 | 725 | 202.0 |
| C | 14 | 254 | 241366 | 1191.25 | 733 | 725 | 202.0 |
| D | 3 | 12 | 404573 | 1922.87 | 740 | 708 | 210.0 |
| D | 2 | 120 | 340170 | 1616.24 | 740 | 708 | 210.0 |
| D | 2 | 31 | 117574 | 556.42 | 740 | 708 | 210.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

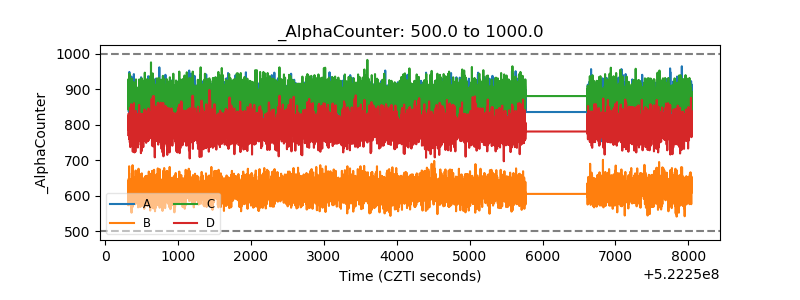

| Alpha Counter |  |

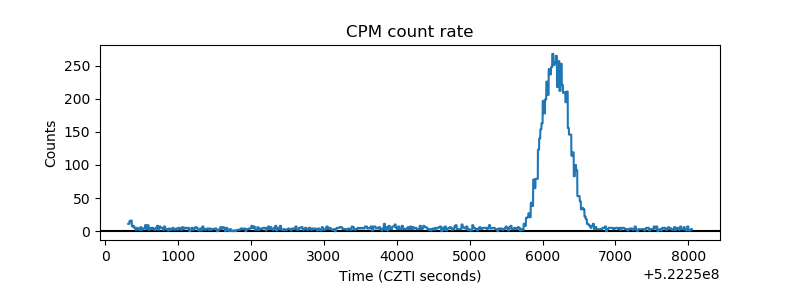

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

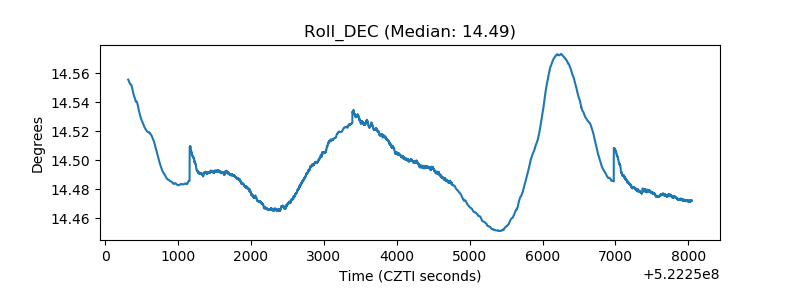

| _Roll_DEC |  |

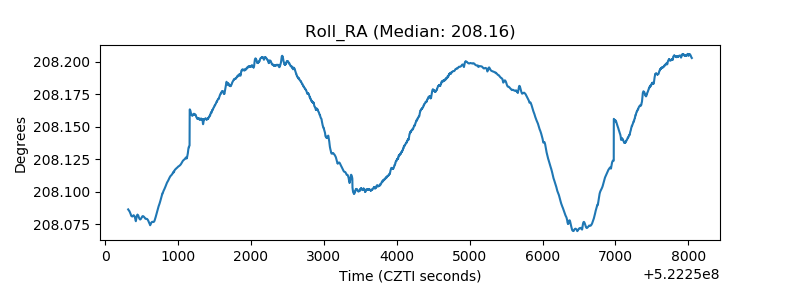

| _Roll_RA |  |

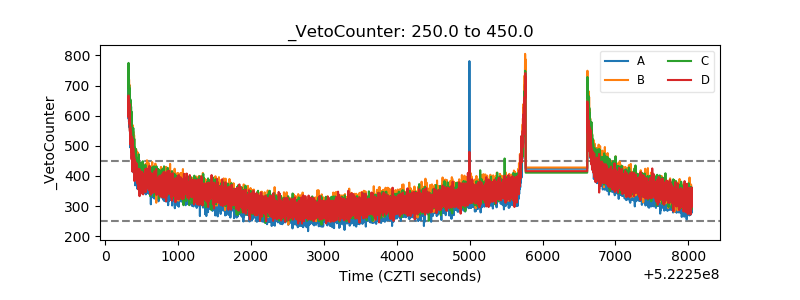

| Veto Counter |  |
