| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58496cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58496cztM0_level2_quad_clean.evt |
| Size (bytes) | 411,085,440 | 94,838,400 |
| Size | 392.0 MB | 90.4 MB |
| Events in quadrant A | 3,338,380 | 632,629 |
| Events in quadrant B | 4,053,610 | 652,652 |
| Events in quadrant C | 3,453,744 | 586,808 |
| Events in quadrant D | 3,876,652 | 556,207 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14295 | 2 |
| B | 0 | 16330 | 2 |
| C | 0 | 14826 | 2 |
| D | 0 | 15919 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6357 | 64 | 1.006764% |
| B | 6357 | 378 | 5.946201% |
| C | 6357 | 241 | 3.791096% |
| D | 6357 | 202 | 3.177599% |

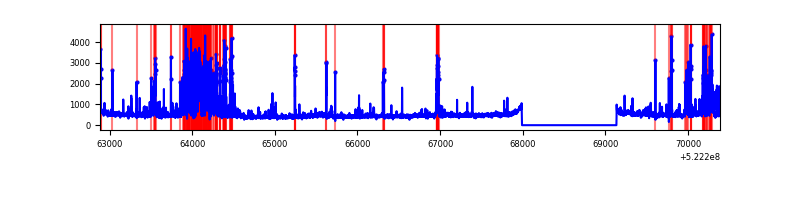

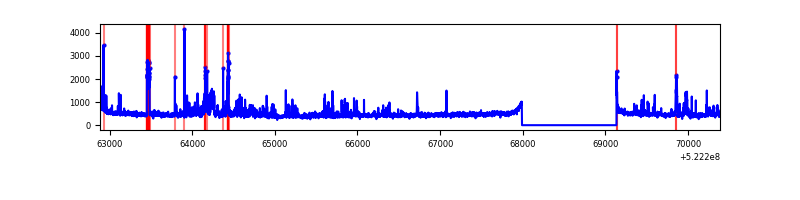

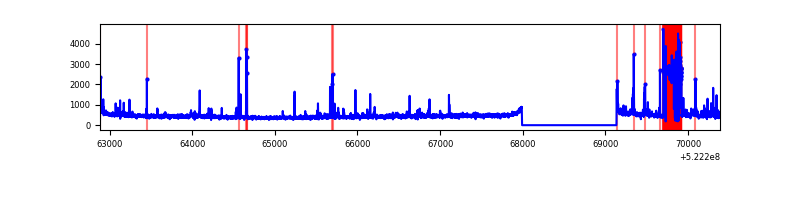

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7502 | 6358 | 47 | 47 | 0.63% | 0.74% |  |
| B | 7502 | 6358 | 249 | 249 | 3.32% | 3.92% |  |
| C | 7502 | 6358 | 201 | 201 | 2.68% | 3.16% |  |
| D | 7502 | 6358 | 161 | 161 | 2.15% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 358953 | 2058.7 | 702 | 685 | 174.0 |
| A | 10 | 143 | 139173 | 795.79 | 702 | 685 | 174.0 |
| A | 13 | 248 | 16209 | 89.2 | 702 | 685 | 174.0 |
| B | 5 | 185 | 928646 | 6283.16 | 688 | 663 | 147.7 |
| B | 4 | 171 | 160367 | 1081.32 | 688 | 663 | 147.7 |
| B | 2 | 249 | 54839 | 366.81 | 688 | 663 | 147.7 |
| C | 13 | 3 | 564060 | 3055.31 | 672 | 665 | 184.4 |
| C | 12 | 252 | 63361 | 340.0 | 672 | 665 | 184.4 |
| C | 6 | 223 | 52075 | 278.8 | 672 | 665 | 184.4 |
| D | 3 | 12 | 751967 | 3919.23 | 671 | 639 | 191.7 |
| D | 8 | 240 | 118044 | 612.43 | 671 | 639 | 191.7 |
| D | 2 | 31 | 68236 | 352.61 | 671 | 639 | 191.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

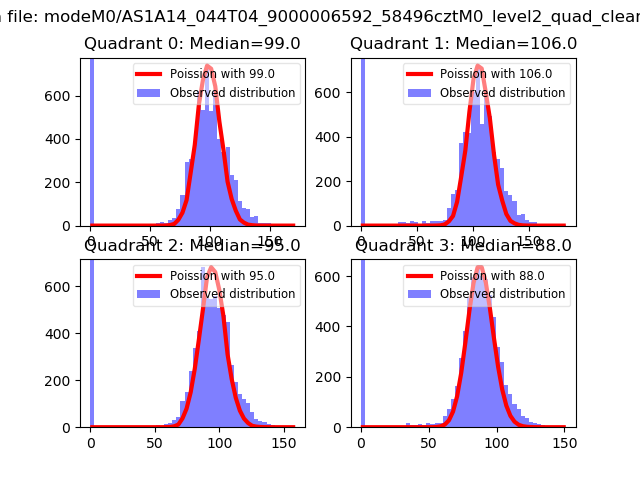

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

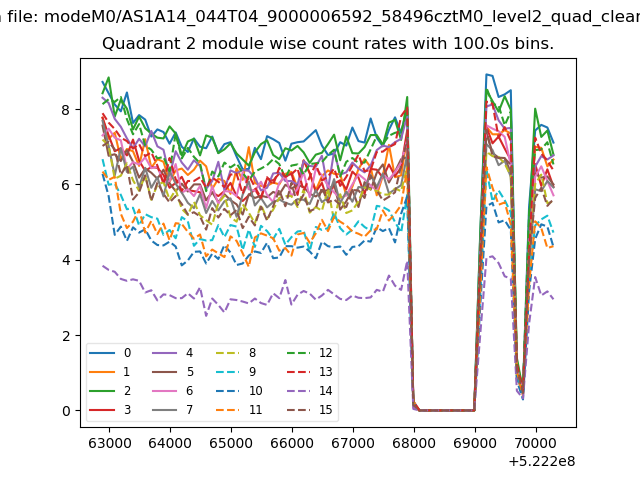

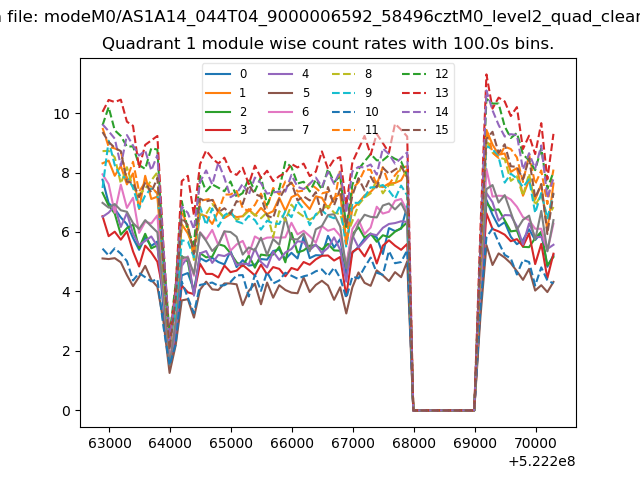

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

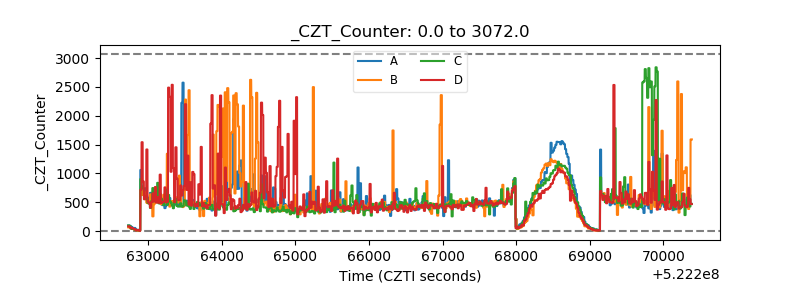

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

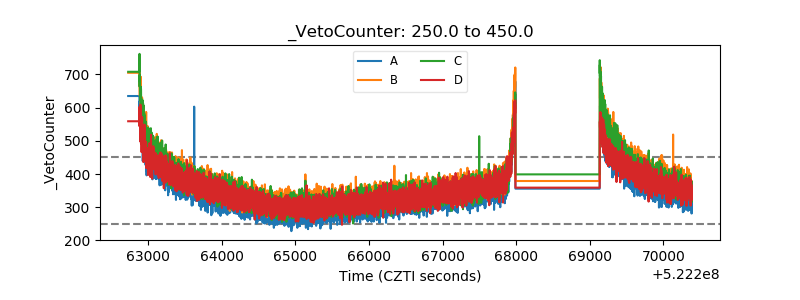

| Veto Counter |  |
