| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58497cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58497cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,036,160 | 98,136,000 |
| Size | 396.8 MB | 93.6 MB |
| Events in quadrant A | 3,479,266 | 647,736 |
| Events in quadrant B | 3,748,079 | 697,761 |
| Events in quadrant C | 4,007,684 | 598,595 |
| Events in quadrant D | 3,665,409 | 579,450 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14793 | 2 |
| B | 0 | 15522 | 2 |
| C | 0 | 16354 | 2 |
| D | 0 | 15395 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6424 | 125 | 1.945828% |
| B | 6424 | 172 | 2.677460% |
| C | 6424 | 323 | 5.028020% |
| D | 6424 | 115 | 1.790162% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7614 | 6425 | 77 | 77 | 1.01% | 1.20% |  |
| B | 7614 | 6425 | 81 | 81 | 1.06% | 1.26% |  |
| C | 7614 | 6425 | 251 | 251 | 3.30% | 3.91% |  |
| D | 7614 | 6425 | 97 | 97 | 1.27% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 451809 | 2526.51 | 720 | 703 | 178.5 |
| A | 10 | 143 | 146406 | 816.04 | 720 | 703 | 178.5 |
| A | 3 | 14 | 14987 | 80.0 | 720 | 703 | 178.5 |
| B | 5 | 185 | 396801 | 2598.11 | 716 | 691 | 152.5 |
| B | 2 | 249 | 246115 | 1609.75 | 716 | 691 | 152.5 |
| B | 4 | 171 | 80289 | 522.09 | 716 | 691 | 152.5 |
| C | 13 | 3 | 663244 | 3483.68 | 682 | 677 | 190.2 |
| C | 6 | 223 | 257770 | 1351.76 | 682 | 677 | 190.2 |
| C | 12 | 252 | 140102 | 733.08 | 682 | 677 | 190.2 |
| D | 2 | 120 | 172900 | 872.55 | 689 | 656 | 197.4 |
| D | 8 | 240 | 161809 | 816.37 | 689 | 656 | 197.4 |
| D | 12 | 248 | 154715 | 780.43 | 689 | 656 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

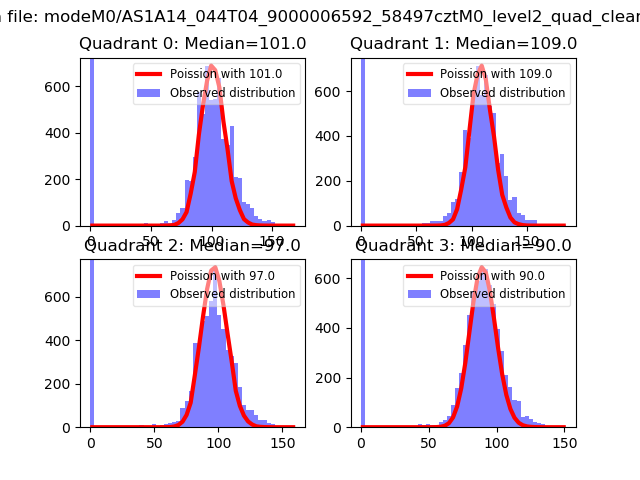

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

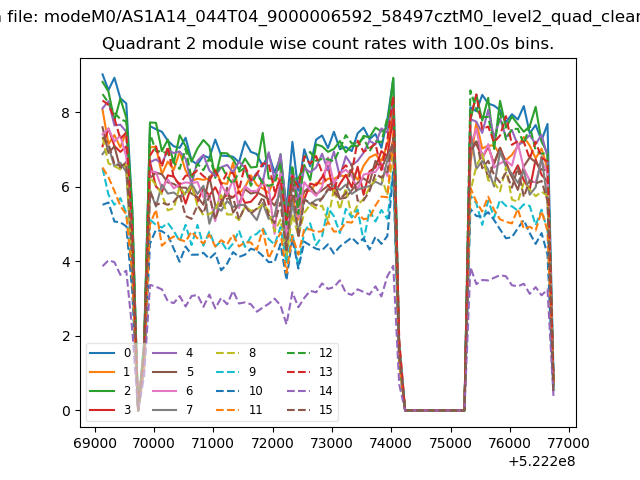

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
