| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58498cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58498cztM0_level2_quad_clean.evt |
| Size (bytes) | 385,545,600 | 96,094,080 |
| Size | 367.7 MB | 91.6 MB |
| Events in quadrant A | 3,622,845 | 629,676 |
| Events in quadrant B | 3,603,255 | 683,716 |
| Events in quadrant C | 3,244,191 | 603,584 |
| Events in quadrant D | 3,319,055 | 560,596 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14996 | 2 |
| B | 0 | 14794 | 2 |
| C | 0 | 13982 | 2 |
| D | 0 | 14288 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6197 | 115 | 1.855737% |
| B | 6197 | 125 | 2.017105% |
| C | 6197 | 98 | 1.581410% |
| D | 6197 | 88 | 1.420042% |

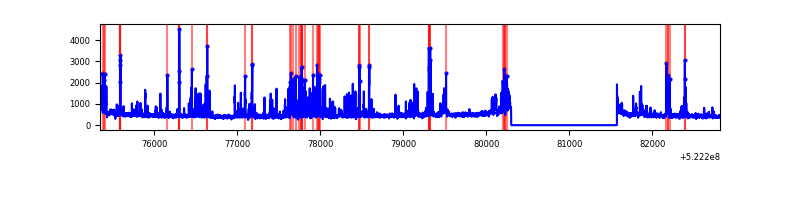

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7472 | 6198 | 57 | 57 | 0.76% | 0.92% |  |
| B | 7472 | 6198 | 72 | 72 | 0.96% | 1.16% |  |
| C | 7472 | 6198 | 91 | 91 | 1.22% | 1.47% |  |
| D | 7472 | 6198 | 78 | 78 | 1.04% | 1.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 143 | 429481 | 2473.59 | 696 | 679 | 173.4 |
| A | 10 | 17 | 408721 | 2353.84 | 696 | 679 | 173.4 |
| A | 13 | 248 | 29604 | 166.86 | 696 | 679 | 173.4 |
| B | 2 | 249 | 271463 | 1831.16 | 693 | 669 | 147.9 |
| B | 5 | 185 | 256939 | 1732.95 | 693 | 669 | 147.9 |
| B | 4 | 171 | 87331 | 586.03 | 693 | 669 | 147.9 |
| C | 14 | 254 | 139705 | 742.09 | 676 | 671 | 187.4 |
| C | 12 | 249 | 108405 | 575.02 | 676 | 671 | 187.4 |
| C | 13 | 3 | 100144 | 530.93 | 676 | 671 | 187.4 |
| D | 2 | 153 | 139908 | 730.45 | 666 | 635 | 190.7 |
| D | 8 | 240 | 137054 | 715.48 | 666 | 635 | 190.7 |
| D | 3 | 12 | 113752 | 593.27 | 666 | 635 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

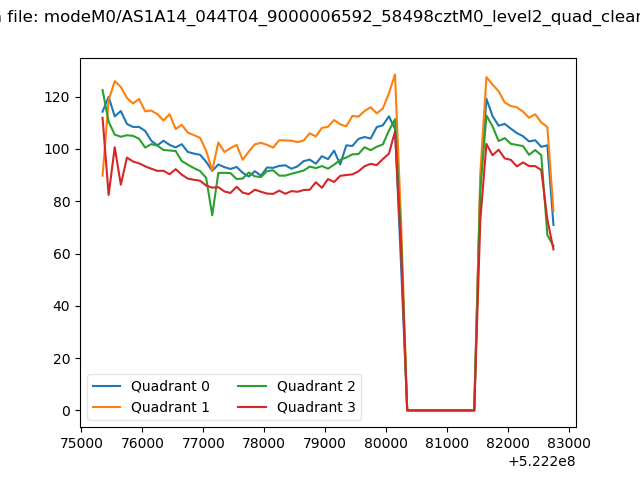

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

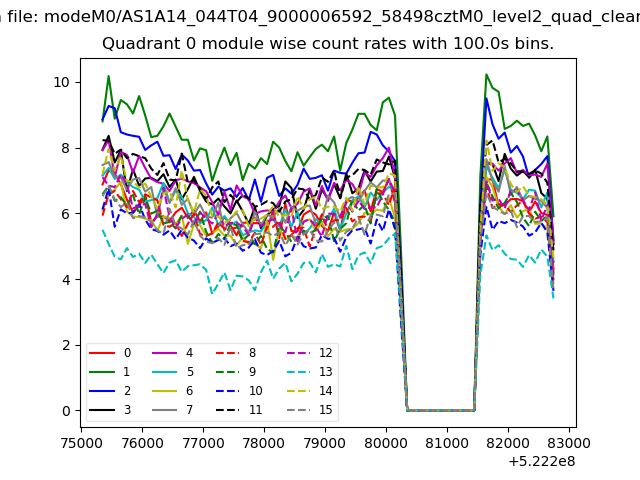

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

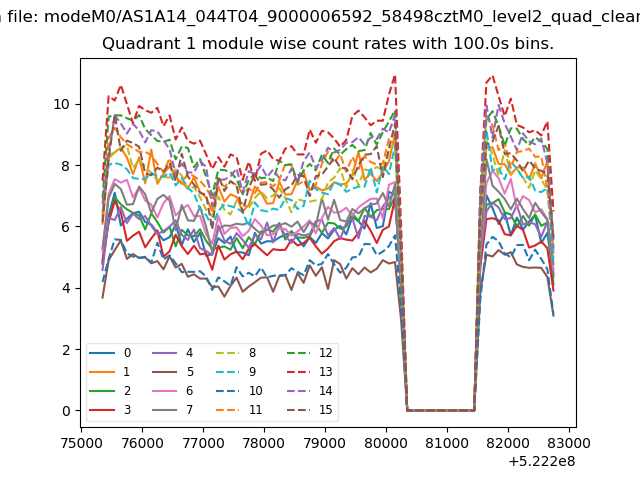

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

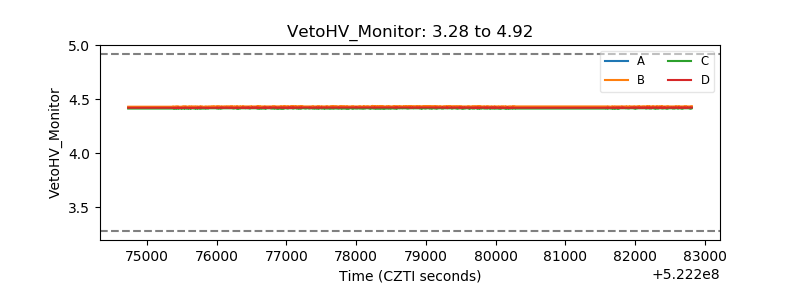

| Veto HV Monitor |  |
| Veto LLD |  |

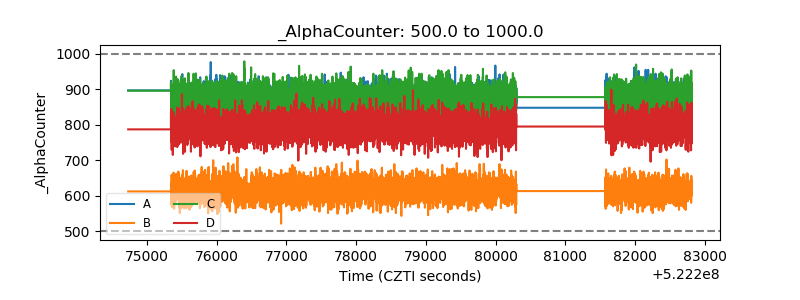

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

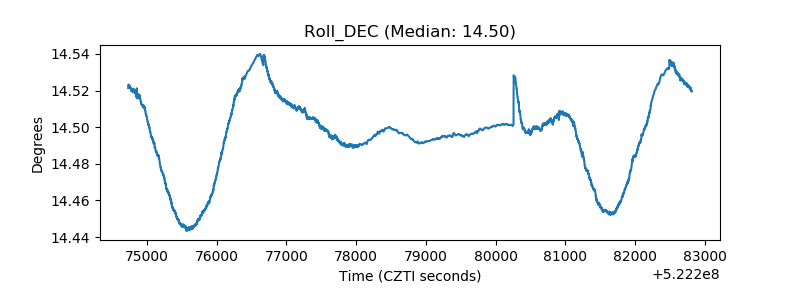

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
