| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58499cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58499cztM0_level2_quad_clean.evt |
| Size (bytes) | 379,785,600 | 100,454,400 |
| Size | 362.2 MB | 95.8 MB |
| Events in quadrant A | 3,825,470 | 644,807 |
| Events in quadrant B | 3,183,117 | 719,071 |
| Events in quadrant C | 3,238,293 | 633,208 |
| Events in quadrant D | 3,304,151 | 590,148 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15881 | 2 |
| B | 0 | 13942 | 2 |
| C | 0 | 14223 | 2 |
| D | 0 | 14338 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6518 | 256 | 3.927585% |
| B | 6519 | 71 | 1.089124% |
| C | 6519 | 64 | 0.981746% |
| D | 6518 | 73 | 1.119975% |

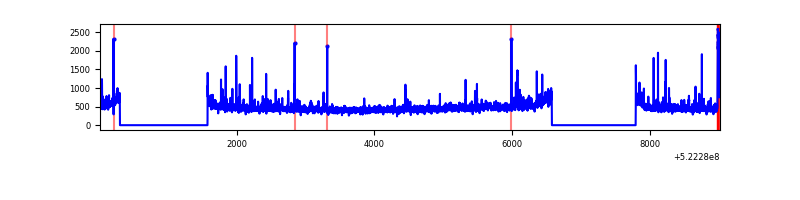

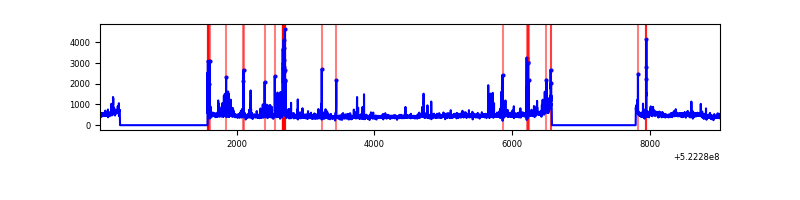

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9013 | 6520 | 187 | 187 | 2.07% | 2.87% |  |
| B | 9014 | 6521 | 15 | 15 | 0.17% | 0.23% |  |
| C | 9014 | 6521 | 48 | 48 | 0.53% | 0.74% |  |
| D | 9013 | 6520 | 46 | 46 | 0.51% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 719705 | 3925.9 | 733 | 714 | 183.1 |
| A | 10 | 143 | 164680 | 895.3 | 733 | 714 | 183.1 |
| A | 13 | 248 | 26450 | 140.53 | 733 | 714 | 183.1 |
| B | 2 | 249 | 51189 | 317.57 | 742 | 718 | 158.9 |
| B | 4 | 171 | 40384 | 249.58 | 742 | 718 | 158.9 |
| B | 12 | 111 | 19505 | 118.21 | 742 | 718 | 158.9 |
| C | 13 | 3 | 99661 | 500.87 | 721 | 714 | 197.6 |
| C | 4 | 5 | 76384 | 383.04 | 721 | 714 | 197.6 |
| C | 12 | 252 | 69606 | 348.73 | 721 | 714 | 197.6 |
| D | 2 | 31 | 125316 | 612.91 | 712 | 682 | 203.3 |
| D | 3 | 12 | 88756 | 433.12 | 712 | 682 | 203.3 |
| D | 5 | 38 | 79141 | 385.84 | 712 | 682 | 203.3 |

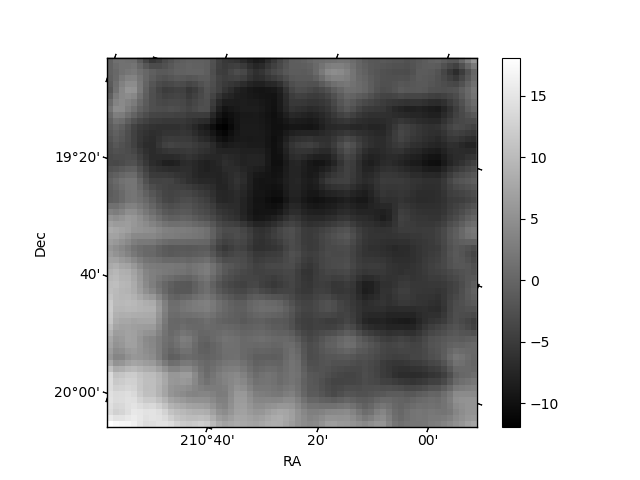

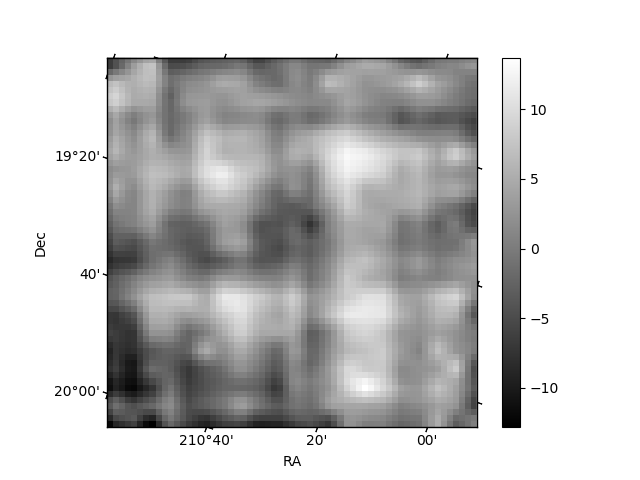

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

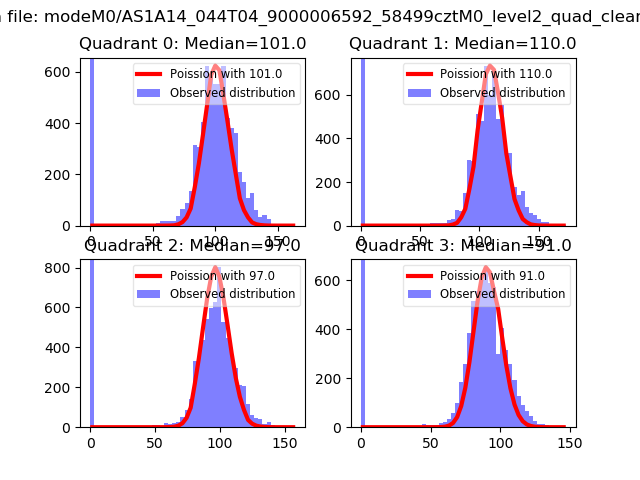

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

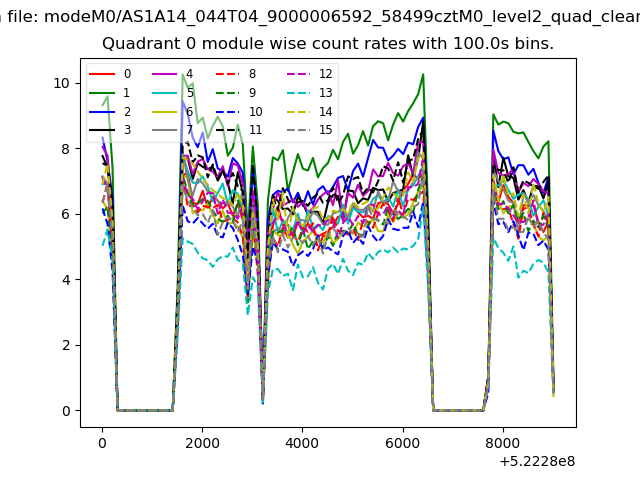

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
