| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58500cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58500cztM0_level2_quad_clean.evt |
| Size (bytes) | 376,712,640 | 99,437,760 |
| Size | 359.3 MB | 94.8 MB |
| Events in quadrant A | 3,504,212 | 647,404 |
| Events in quadrant B | 3,461,971 | 696,465 |
| Events in quadrant C | 3,285,590 | 624,749 |
| Events in quadrant D | 3,178,410 | 581,534 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14919 | 2 |
| B | 0 | 14633 | 2 |
| C | 0 | 14375 | 2 |
| D | 0 | 14265 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6609 | 71 | 1.074293% |
| B | 6610 | 120 | 1.815431% |
| C | 6610 | 24 | 0.363086% |
| D | 6610 | 44 | 0.665658% |

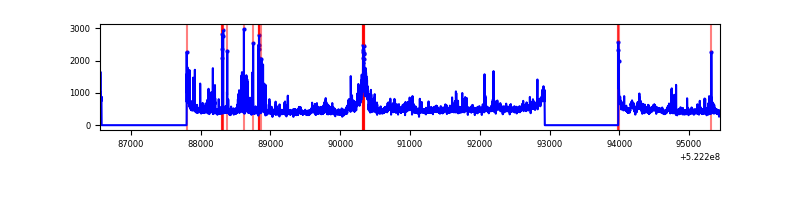

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8884 | 6611 | 26 | 26 | 0.29% | 0.39% |  |
| B | 8885 | 6612 | 25 | 25 | 0.28% | 0.38% |  |
| C | 8885 | 6612 | 8 | 8 | 0.09% | 0.12% |  |
| D | 8885 | 6612 | 14 | 14 | 0.16% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 202875 | 1104.39 | 739 | 720 | 183.0 |
| A | 10 | 17 | 158655 | 862.81 | 739 | 720 | 183.0 |
| A | 10 | 143 | 153969 | 837.21 | 739 | 720 | 183.0 |
| B | 0 | 186 | 173516 | 1096.67 | 735 | 709 | 157.6 |
| B | 4 | 171 | 70005 | 439.77 | 735 | 709 | 157.6 |
| B | 2 | 249 | 66550 | 417.84 | 735 | 709 | 157.6 |
| C | 12 | 252 | 330126 | 1640.94 | 720 | 712 | 200.7 |
| C | 9 | 237 | 38156 | 186.52 | 720 | 712 | 200.7 |
| C | 6 | 223 | 27748 | 134.68 | 720 | 712 | 200.7 |
| D | 3 | 12 | 130270 | 641.56 | 709 | 675 | 202.0 |
| D | 2 | 31 | 94072 | 462.36 | 709 | 675 | 202.0 |
| D | 5 | 38 | 75898 | 372.39 | 709 | 675 | 202.0 |

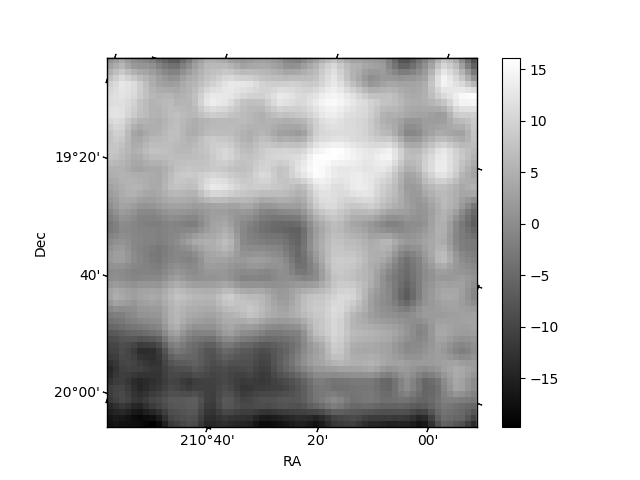

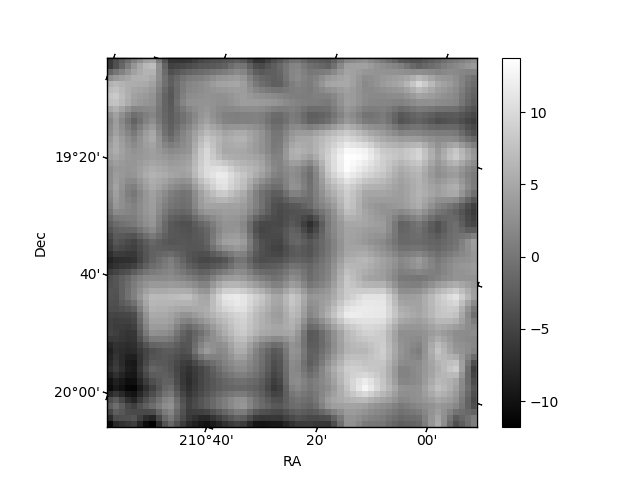

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

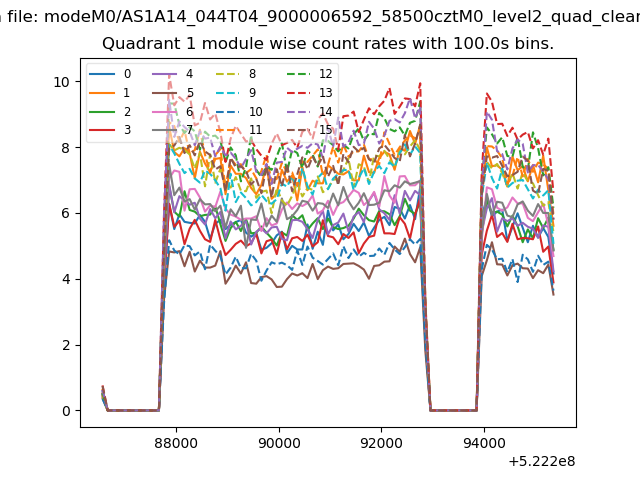

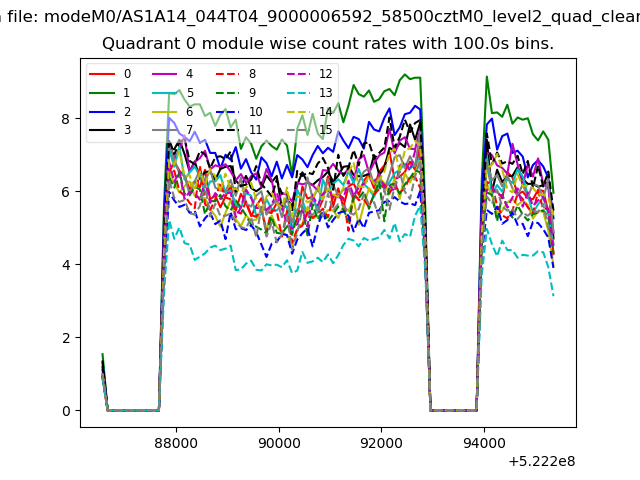

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

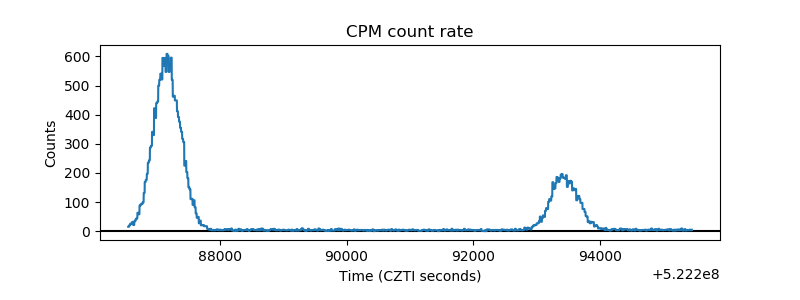

| _CPM_Rate |  |

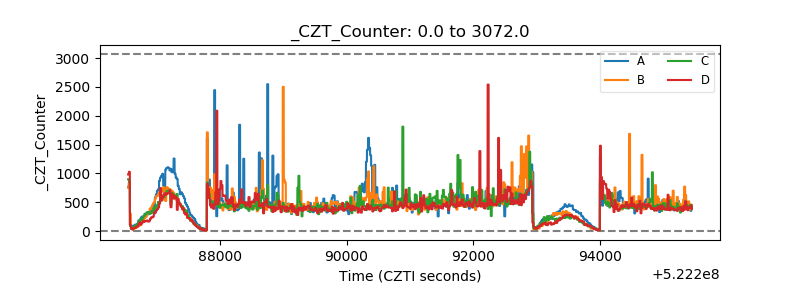

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

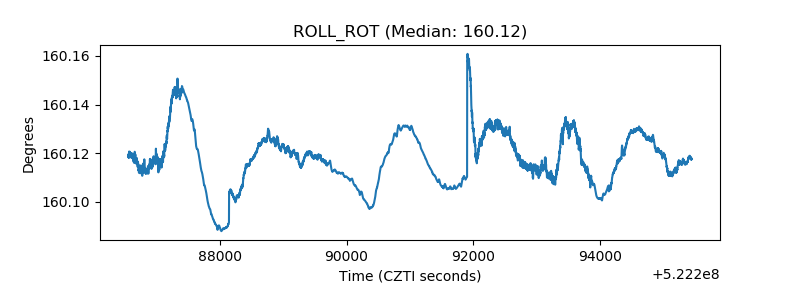

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
