| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58501cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58501cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,252,800 | 118,422,720 |
| Size | 499.0 MB | 112.9 MB |
| Events in quadrant A | 4,233,622 | 777,199 |
| Events in quadrant B | 4,649,237 | 828,826 |
| Events in quadrant C | 4,574,342 | 740,095 |
| Events in quadrant D | 5,283,754 | 677,683 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18170 | 2 |
| B | 0 | 19303 | 2 |
| C | 0 | 19367 | 2 |
| D | 0 | 21547 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8083 | 173 | 2.140294% |
| B | 8084 | 300 | 3.711034% |
| C | 8084 | 262 | 3.240970% |
| D | 8083 | 459 | 5.678585% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9748 | 8086 | 35 | 35 | 0.36% | 0.43% |  |
| B | 9749 | 8087 | 72 | 72 | 0.74% | 0.89% |  |
| C | 9749 | 8087 | 163 | 163 | 1.67% | 2.02% |  |

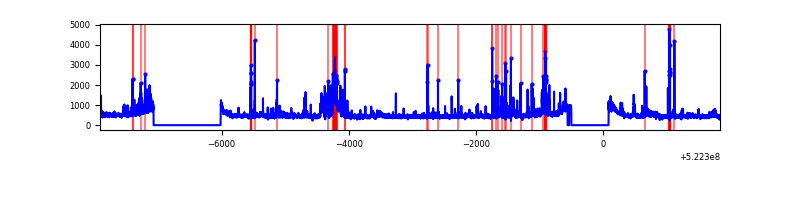

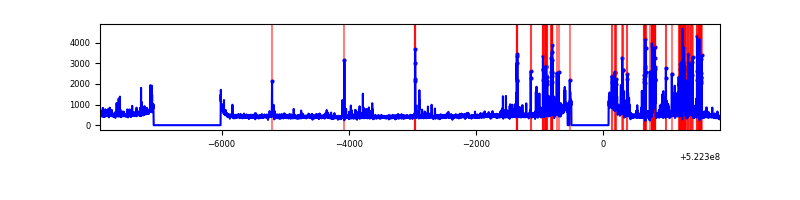

| D | 9748 | 8086 | 334 | 334 | 3.43% | 4.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 384328 | 1669.7 | 927 | 901 | 229.6 |
| A | 10 | 251 | 131155 | 567.21 | 927 | 901 | 229.6 |
| A | 3 | 245 | 57038 | 244.46 | 927 | 901 | 229.6 |
| B | 0 | 186 | 401744 | 2021.31 | 915 | 879 | 198.3 |
| B | 5 | 185 | 232052 | 1165.66 | 915 | 879 | 198.3 |
| B | 2 | 249 | 81302 | 405.52 | 915 | 879 | 198.3 |
| C | 15 | 157 | 571696 | 2320.54 | 895 | 887 | 246.0 |
| C | 12 | 252 | 173122 | 700.2 | 895 | 887 | 246.0 |
| C | 9 | 237 | 144926 | 585.57 | 895 | 887 | 246.0 |
| D | 3 | 12 | 766080 | 3084.53 | 878 | 838 | 248.1 |
| D | 8 | 160 | 532261 | 2142.05 | 878 | 838 | 248.1 |
| D | 2 | 31 | 194309 | 779.84 | 878 | 838 | 248.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

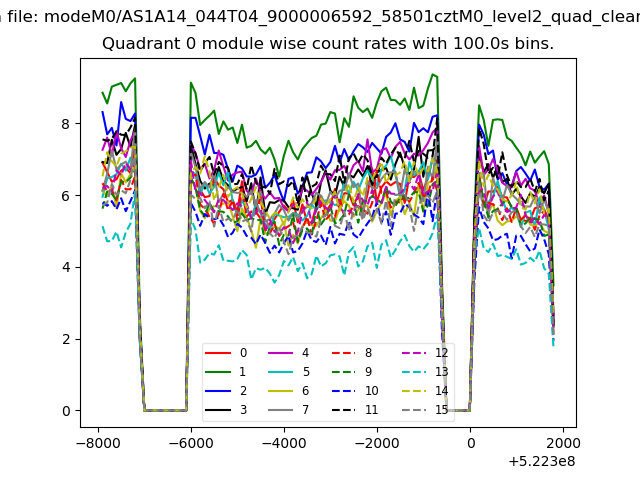

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

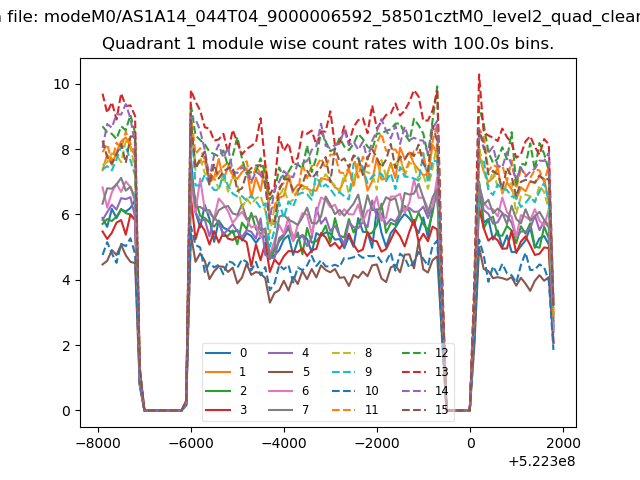

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

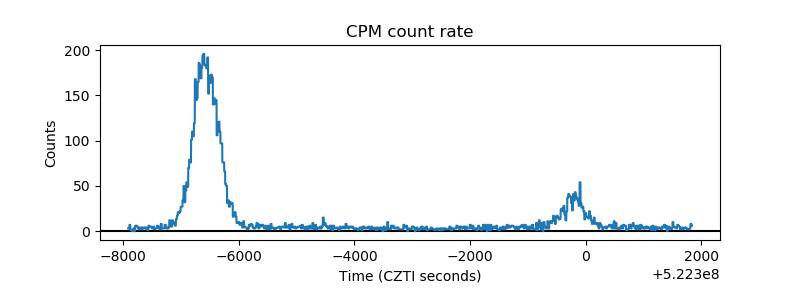

| _CPM_Rate |  |
| CZT Counter |  |

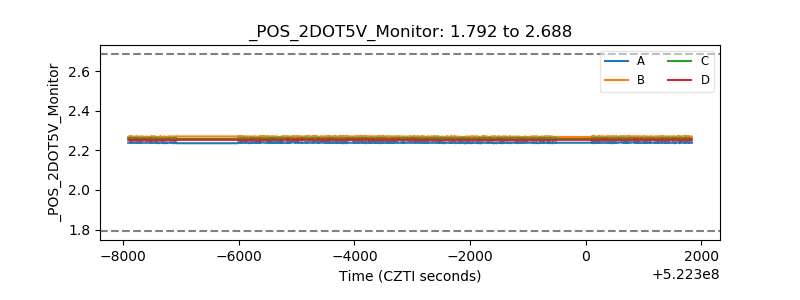

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

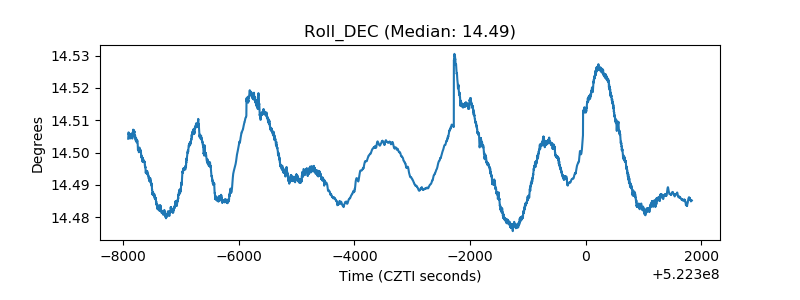

| _Roll_DEC |  |
| _Roll_RA |  |

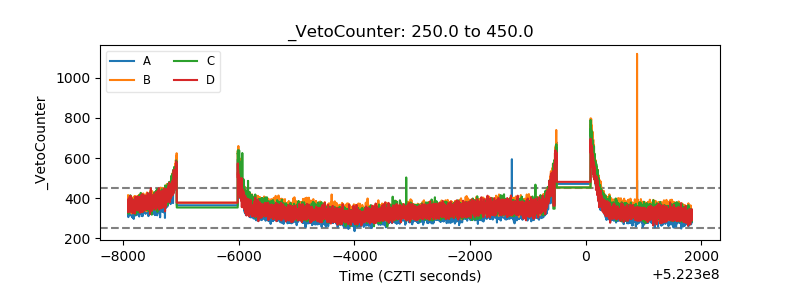

| Veto Counter |  |
