| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58502cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58502cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,556,800 | 117,316,800 |
| Size | 527.0 MB | 111.9 MB |
| Events in quadrant A | 4,711,294 | 761,394 |
| Events in quadrant B | 4,167,047 | 812,131 |
| Events in quadrant C | 5,321,707 | 733,844 |
| Events in quadrant D | 5,621,209 | 679,015 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19832 | 1 |
| B | 0 | 17954 | 1 |
| C | 0 | 21453 | 2 |
| D | 0 | 22512 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8142 | 336 | 4.126750% |
| B | 8143 | 378 | 4.642024% |
| C | 8142 | 405 | 4.974208% |
| D | 8142 | 482 | 5.919921% |

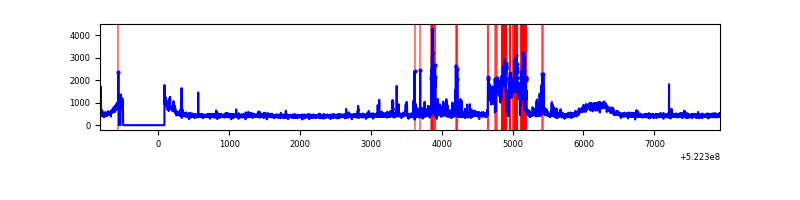

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8752 | 8144 | 129 | 129 | 1.47% | 1.58% |  |
| B | 8753 | 8145 | 16 | 16 | 0.18% | 0.20% |  |
| C | 8752 | 8144 | 241 | 241 | 2.75% | 2.96% |  |
| D | 8752 | 8144 | 353 | 353 | 4.03% | 4.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 678569 | 2893.75 | 953 | 927 | 234.2 |
| A | 10 | 17 | 136183 | 577.58 | 953 | 927 | 234.2 |
| A | 13 | 248 | 65931 | 277.59 | 953 | 927 | 234.2 |
| B | 0 | 186 | 115779 | 557.61 | 943 | 904 | 206.0 |
| B | 0 | 157 | 47313 | 225.27 | 943 | 904 | 206.0 |
| B | 5 | 250 | 45604 | 216.98 | 943 | 904 | 206.0 |
| C | 15 | 157 | 1044904 | 4140.94 | 918 | 910 | 252.1 |
| C | 12 | 252 | 291854 | 1154.01 | 918 | 910 | 252.1 |
| C | 9 | 237 | 197159 | 778.41 | 918 | 910 | 252.1 |
| D | 3 | 12 | 821184 | 3241.64 | 905 | 864 | 253.1 |
| D | 8 | 240 | 424609 | 1674.5 | 905 | 864 | 253.1 |
| D | 8 | 160 | 403080 | 1589.43 | 905 | 864 | 253.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

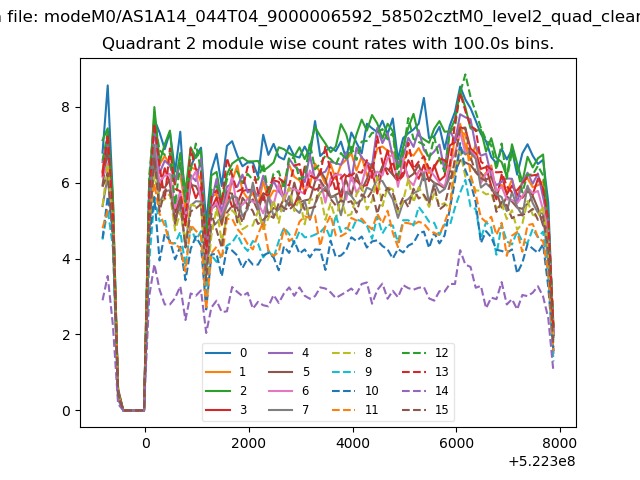

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

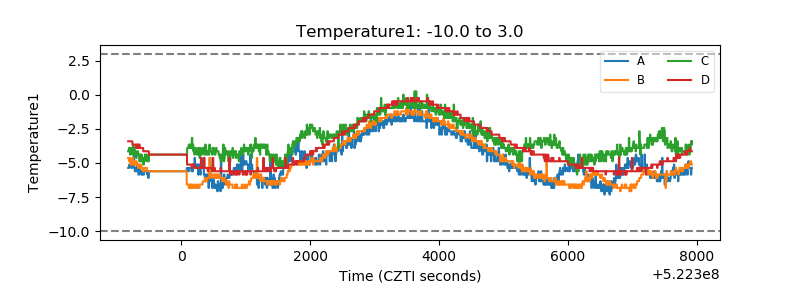

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

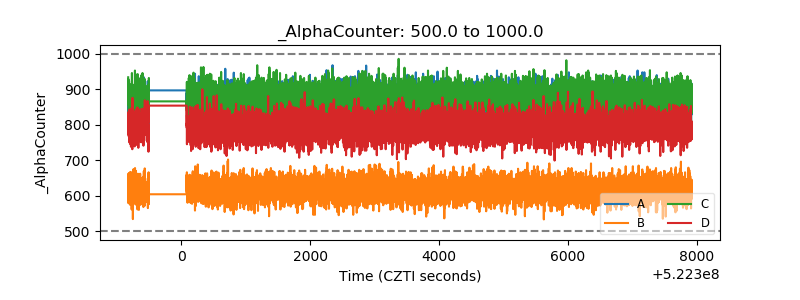

| Alpha Counter |  |

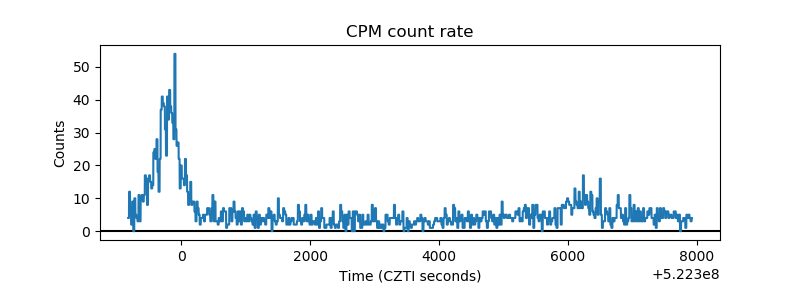

| _CPM_Rate |  |
| CZT Counter |  |

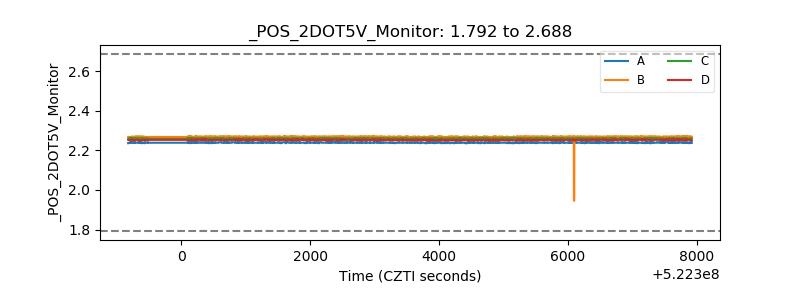

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

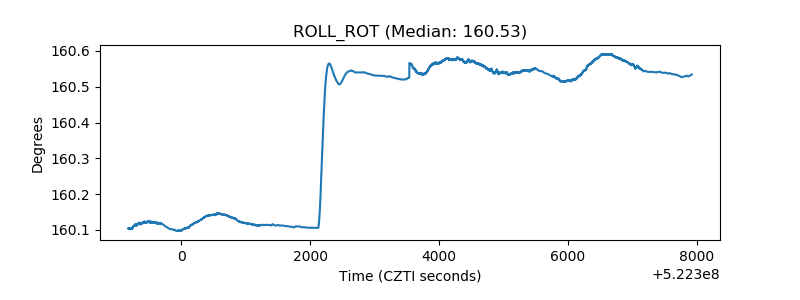

| _ROLL_ROT |  |

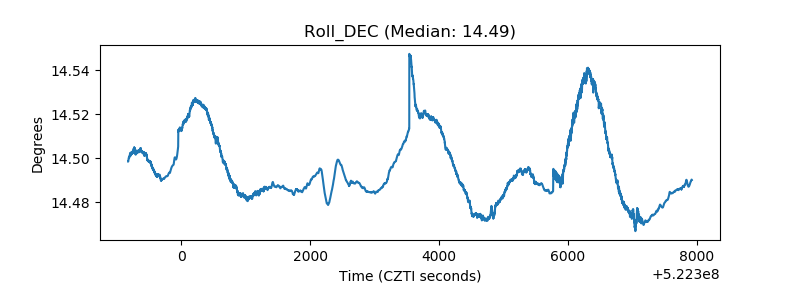

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
