| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58507cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58507cztM0_level2_quad_clean.evt |
| Size (bytes) | 985,023,360 | 204,312,960 |
| Size | 939.4 MB | 194.8 MB |
| Events in quadrant A | 8,353,203 | 1,327,104 |
| Events in quadrant B | 7,635,627 | 1,434,190 |
| Events in quadrant C | 8,155,441 | 1,281,257 |
| Events in quadrant D | 11,200,715 | 1,147,563 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34572 | 3 |
| B | 0 | 32457 | 3 |
| C | 0 | 34378 | 3 |
| D | 0 | 42879 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 296 | 0 |
| B | 0 | 296 | 0 |
| C | 0 | 296 | 0 |
| D | 0 | 296 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14420 | 785 | 5.443828% |
| B | 14420 | 553 | 3.834951% |
| C | 14420 | 567 | 3.932039% |
| D | 14420 | 1241 | 8.606103% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15730 | 14421 | 336 | 336 | 2.14% | 2.33% |  |
| B | 15730 | 14422 | 94 | 94 | 0.60% | 0.65% |  |
| C | 15730 | 14424 | 231 | 231 | 1.47% | 1.60% |  |
| D | 15730 | 14424 | 847 | 847 | 5.38% | 5.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 905829 | 2271.3 | 1627 | 1585 | 398.1 |
| A | 3 | 14 | 223034 | 556.24 | 1627 | 1585 | 398.1 |
| A | 10 | 17 | 222019 | 553.69 | 1627 | 1585 | 398.1 |
| B | 5 | 185 | 377683 | 1076.72 | 1623 | 1561 | 349.3 |
| B | 8 | 234 | 195632 | 555.57 | 1623 | 1561 | 349.3 |
| B | 4 | 171 | 103270 | 291.16 | 1623 | 1561 | 349.3 |
| C | 4 | 5 | 1005512 | 2290.3 | 1600 | 1581 | 438.3 |
| C | 15 | 157 | 277385 | 629.2 | 1600 | 1581 | 438.3 |
| C | 6 | 223 | 172946 | 390.94 | 1600 | 1581 | 438.3 |
| D | 3 | 12 | 2344879 | 5280.88 | 1570 | 1500 | 443.7 |
| D | 8 | 240 | 1495496 | 3366.77 | 1570 | 1500 | 443.7 |
| D | 2 | 31 | 524300 | 1178.15 | 1570 | 1500 | 443.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

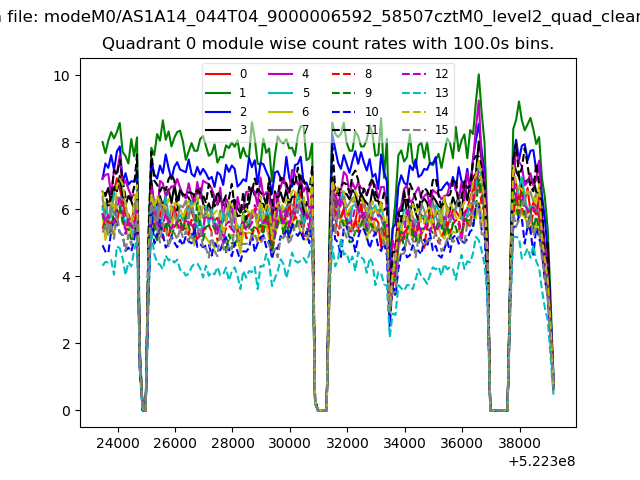

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

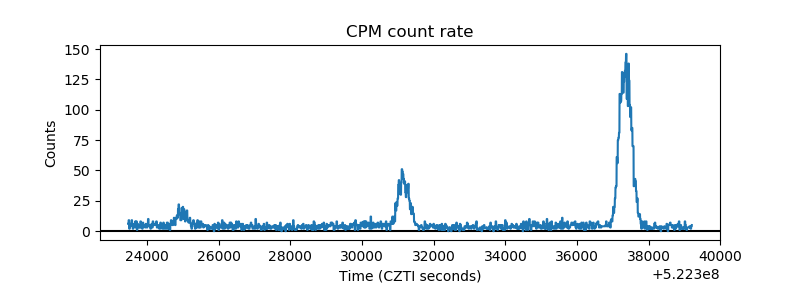

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

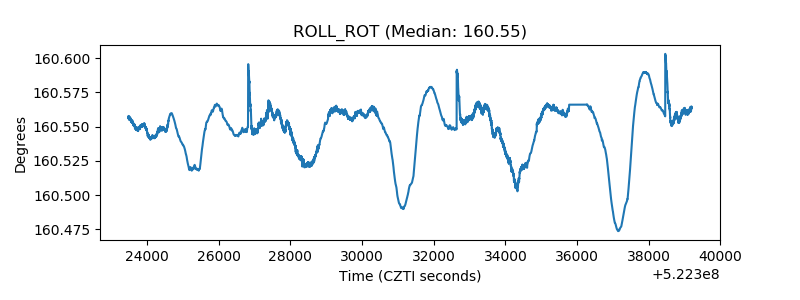

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
